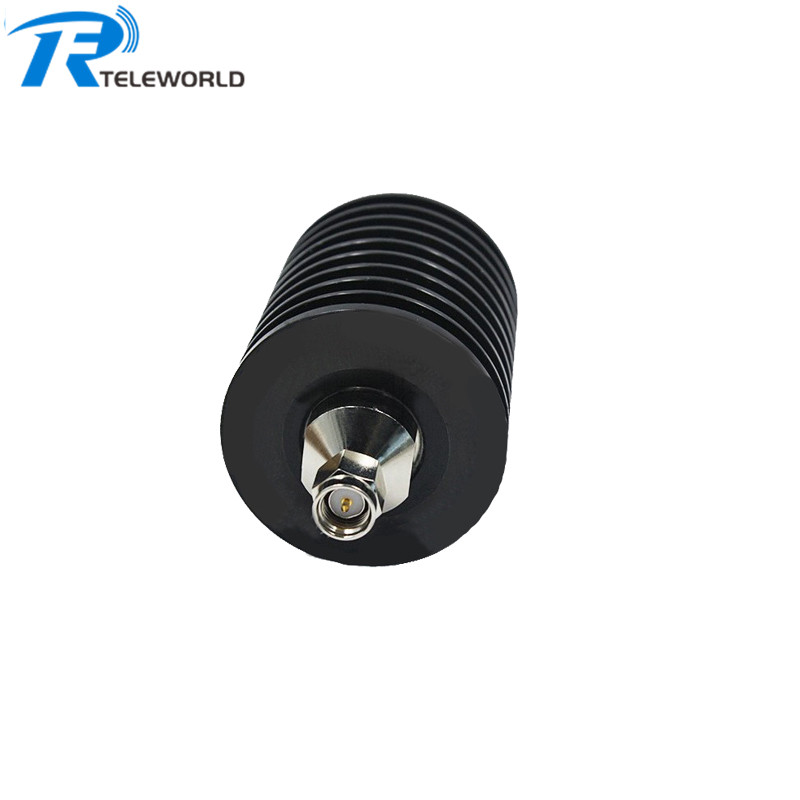

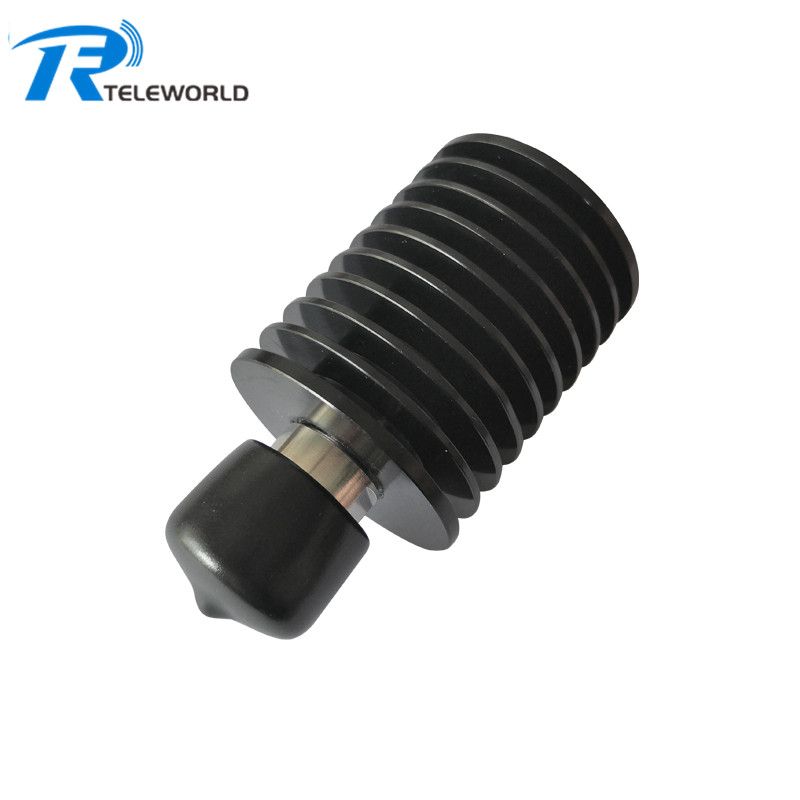

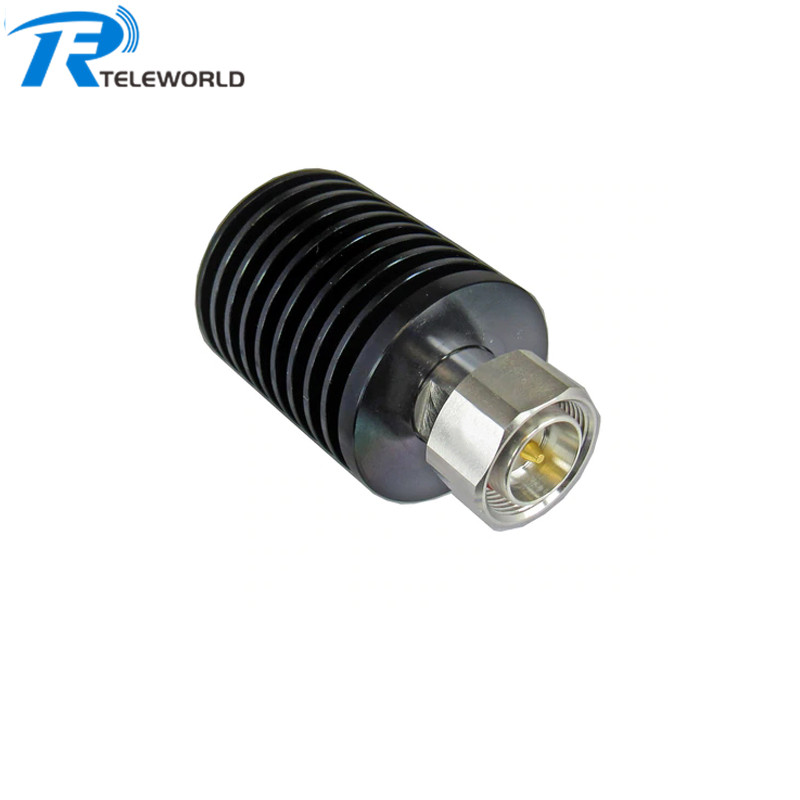

25W N RF Terminator Dummy Load 3GHz 4Ghz 6GHz 12.4GHz 18GHz 50ohm
TWTN-25-3G
Frequency 3GHz and up to 18GHz optional
SMA,N,BNC,4.3-10 connector optional
Factory supply with fast delivery
Welcome to send inquiry
Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.
| 25W N RF Terminator, dummy load 3/4/68/12/18GHz 50ohm | |
| Norminal Impendance | 50ohm |
| Frequency range | DC-3GHz up to 18GHz |
| VSWR | 3GHz≤1.15 |
| Power rating | 25W |
| Temperature range | -55℃ to 125℃ |
