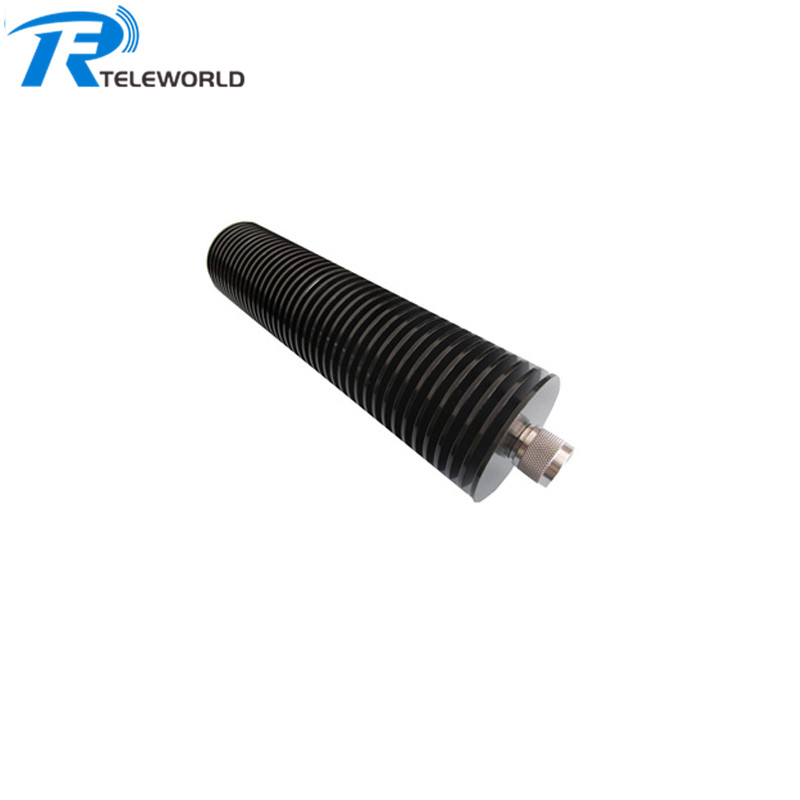

300W RF Terminator Dummy Load 3GHz 4GHz 6GHz 50ohm
Frequency 3GHz 4GHz 6GHz optional
SMA,N,BNC,4.3-10 connector optional
Factory supply with fast delivery
Welcome to send inquiry
Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.
| 300W N RF Terminator, dummy load 3/4/6GHz 50ohm | |
| Norminal Impendance | 50ohm |
| Frequency range | DC-3/4/6GHz |
| VSWR | 3GHz≤1.2 6GHz≤1.3 |
| Power rating | 300W |
| Temperature range | -55℃ to 125℃ |
