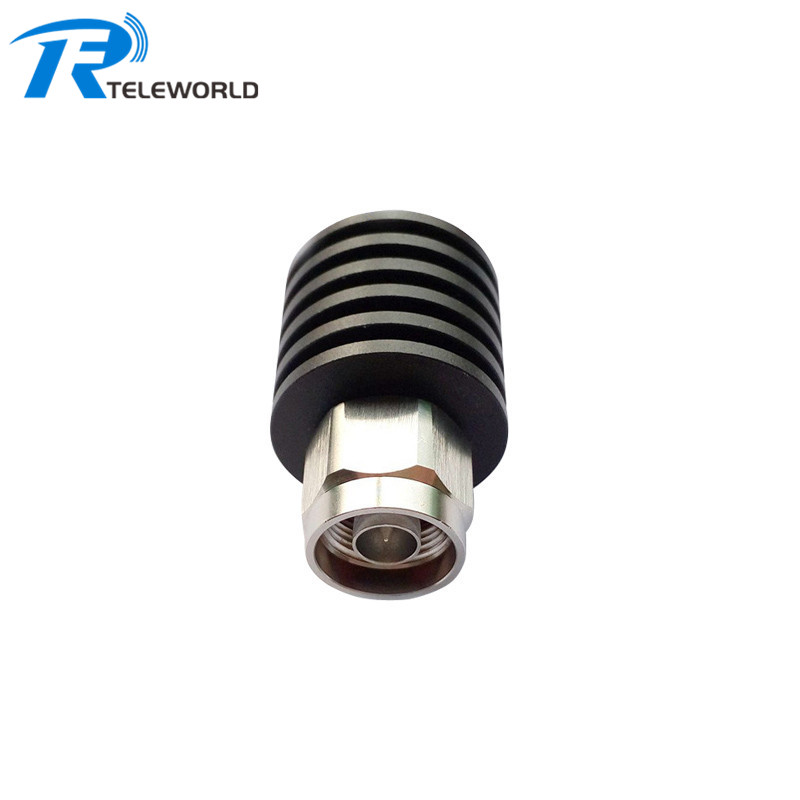

5W N dummy load RF Terminator 6GHz 8GHz 10GHz 12GHz 18GHz 50ohm
TWTN-5-6G
Frequency 6GHz and up to 18GHz optional

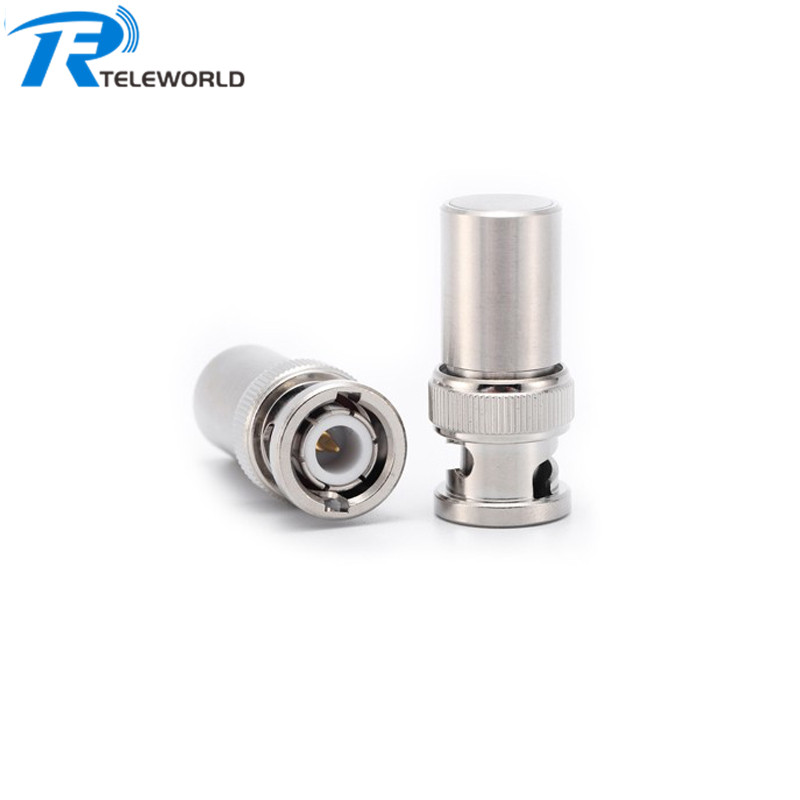

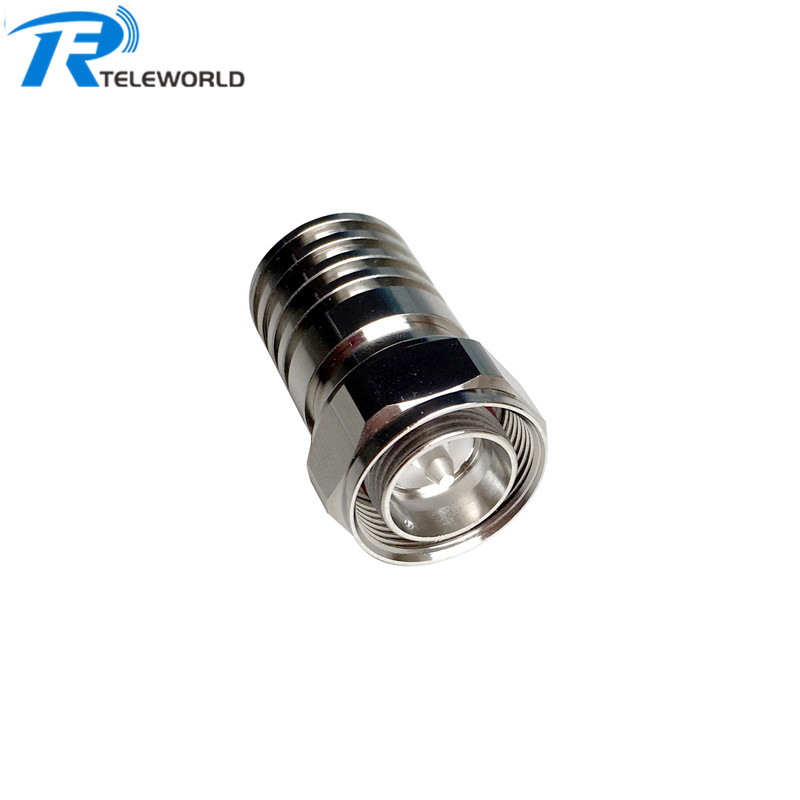

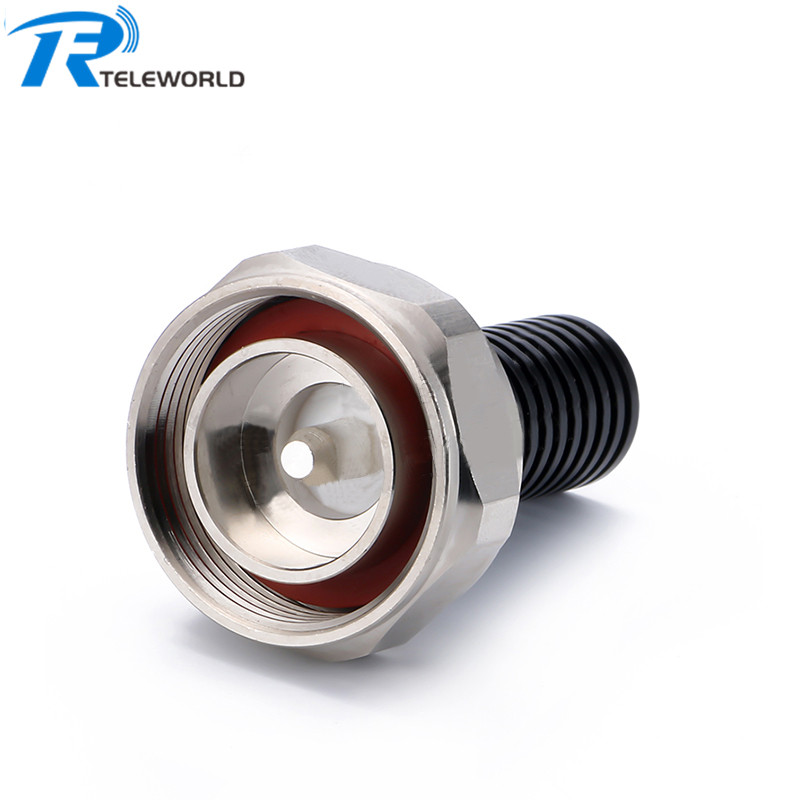

SMA,N,BNC,4.3-10 connector optional
Factory supply with fast delivery
Welcome to send inquiry
Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.

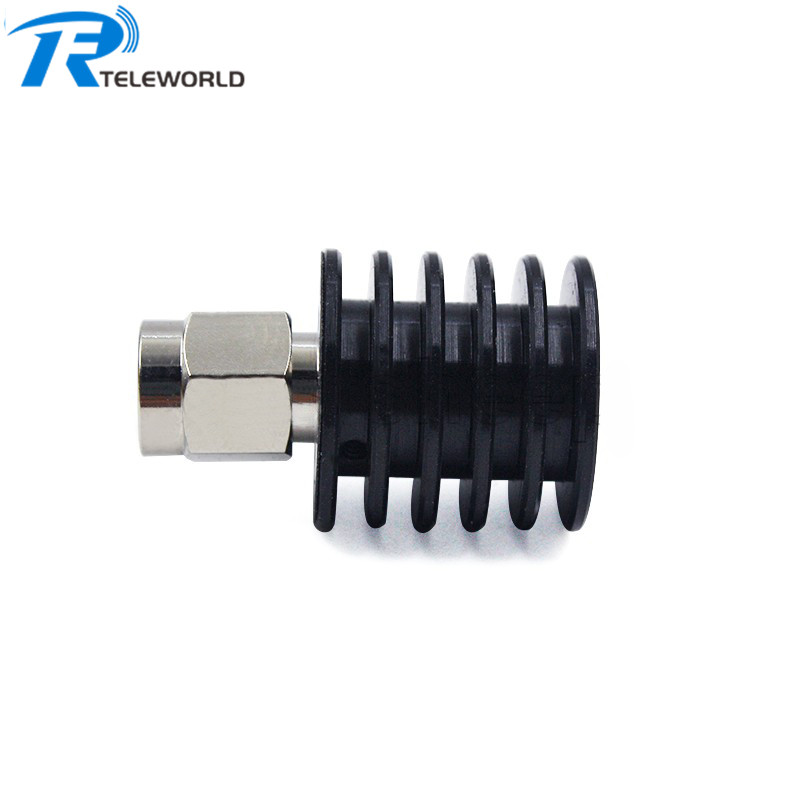

| 5W SMA RF Terminator, dummy load 6/8/10/12/18GHz 50ohm | |
| Norminal Impendance | 50ohm |
| Frequency range | DC-6/10/12/18GHz |
| VSWR | 6GHz≤1.2 |
| Power rating | 5W |
| Temperature range | -55℃ to 125℃ |
