Home > Products >> RF Terminator & Dummy Load >> 10W RF Terminator Dummy Load

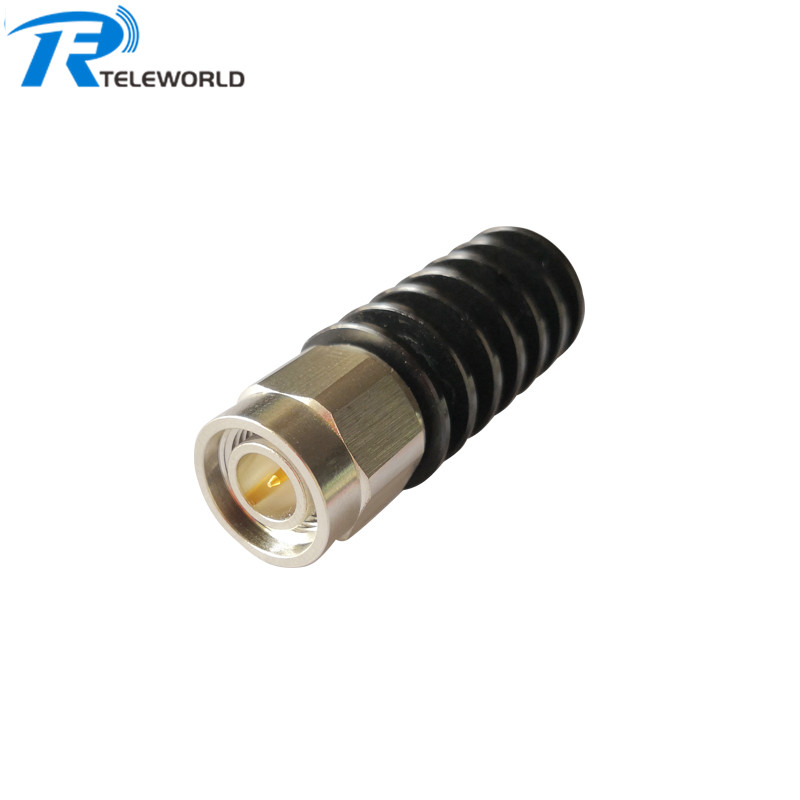

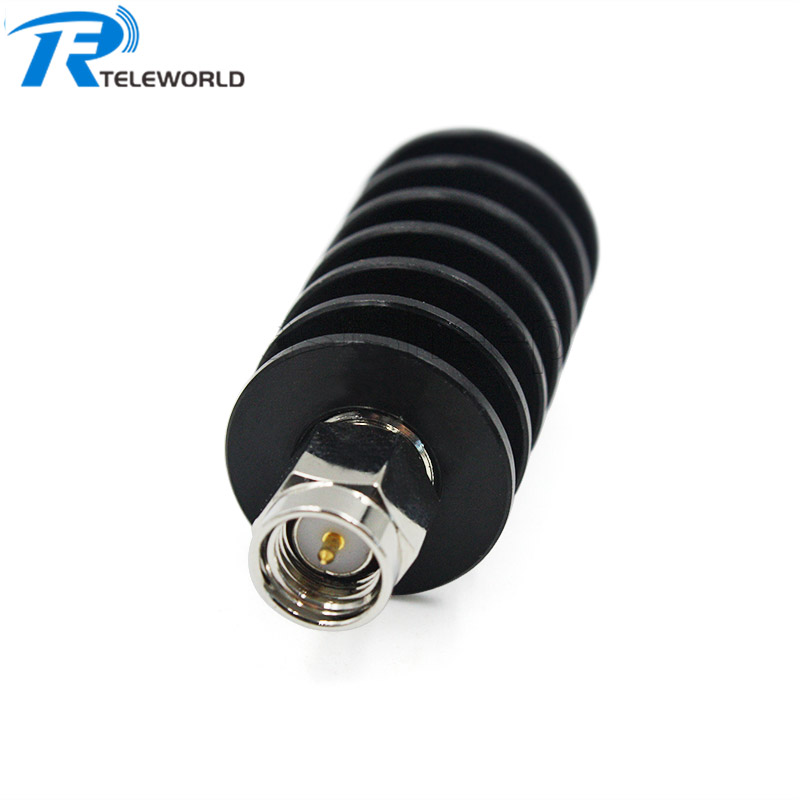

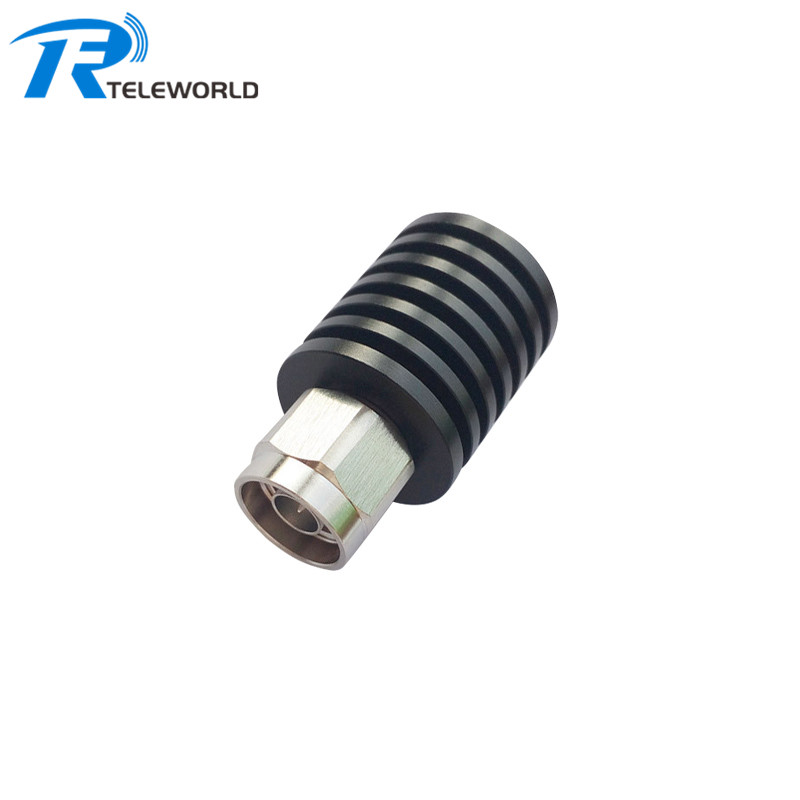

  • 10W 4.3-10 dummy load terminator 3GHz 4GHz 6GHz 50ohm

    • 10W 4.3-10 dummy load terminator 3GHz 4GHz 6GHz 50ohm

    TWTmD-10-6G
    Frequency 3/4/6GHz optional
    SMA,N,BNC,4.3-10 connector optional
    Factory supply with fast delivery
    Welcome to send inquiry

    Inquire Now Next Product
    • Product Description

    Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.


    10W 4.3-10 RF Terminator, dummy load 3/4/6GHz 50ohm
    Norminal Impendance50ohm
    Frequency rangeDC-3/4/6GHz
    VSWR

    6GHz≤1.2
    18GHz≤1.3

    Power rating10W
    Temperature range-55℃ to 125℃
    Tags: 10W 4.3-10 dummy load, 10W mini DIN terminator, 10W 4.3-10 Terminator, 10w 4.3/10 RF load, 10W 4.3-10 RF terminator
