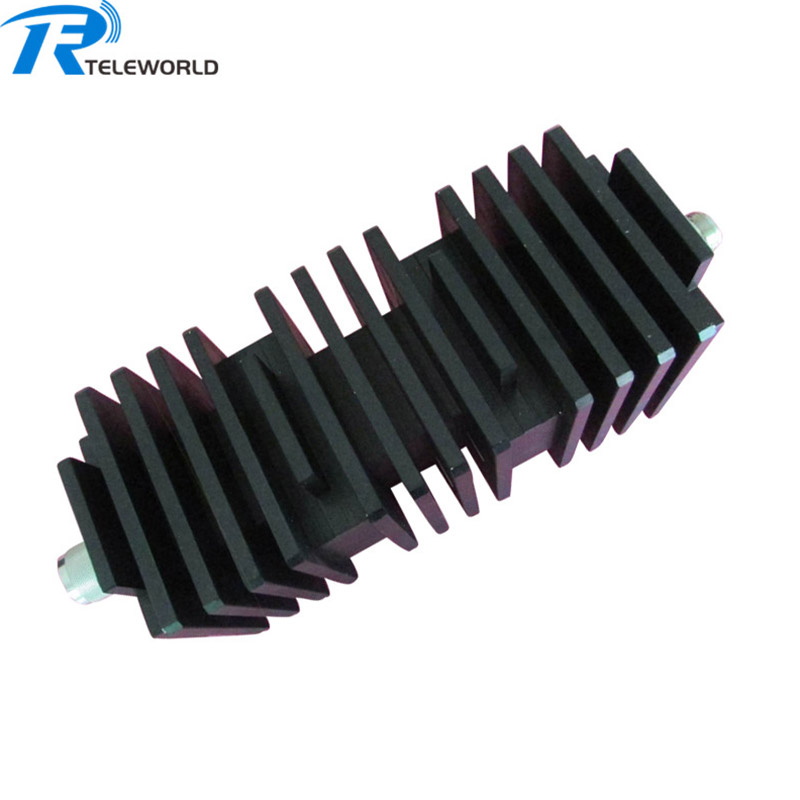

200W N coaxial Fixed attenuator 18GHz 10dB 20dB 30dB 40dB 50ohm
TWAN-200-18GHz
Frequency 18GHz optional
Attention range from 1-50dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-18G, 200W N coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 18GHz |
| VSWR | 18GHz≤1.4 | POWER RATING | 200W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 10,20,30.40.50dB available, and 10-40dB.±1.5dB,50dB±2dB | ||
