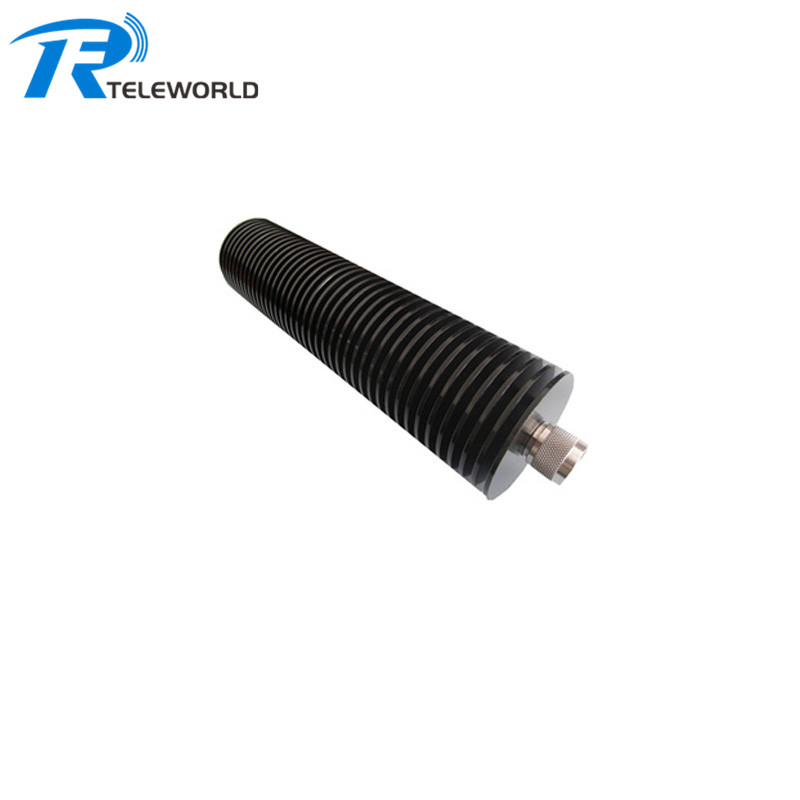

200W N coaxial attenuator 3Ghz 4Ghz 6GHz 8GHz 10dB 20dB 30dB 40dB 50dB 50ohm
TWAN-200-6G
Frequency 4/6/8GHz optional
7/16,4.3/10 connector optional
Attention range from 1-50dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-4/6/8G, 200W N coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 3/4/6/8GHz |
| VSWR | 3GHz≤1.15 | POWER RATING | 200W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 10,20,30.40.50dB available, and 10-40dB.±1dB,50dB±1.5dB | ||
