Low PIM NEX10 male to 7/16 DIN Female RF Adapter
Factory supply with fast delivery
Welcome to send inquiry
NEX10 Series all available，For more details pls contact us
NEX10 M/F to SMA M/F

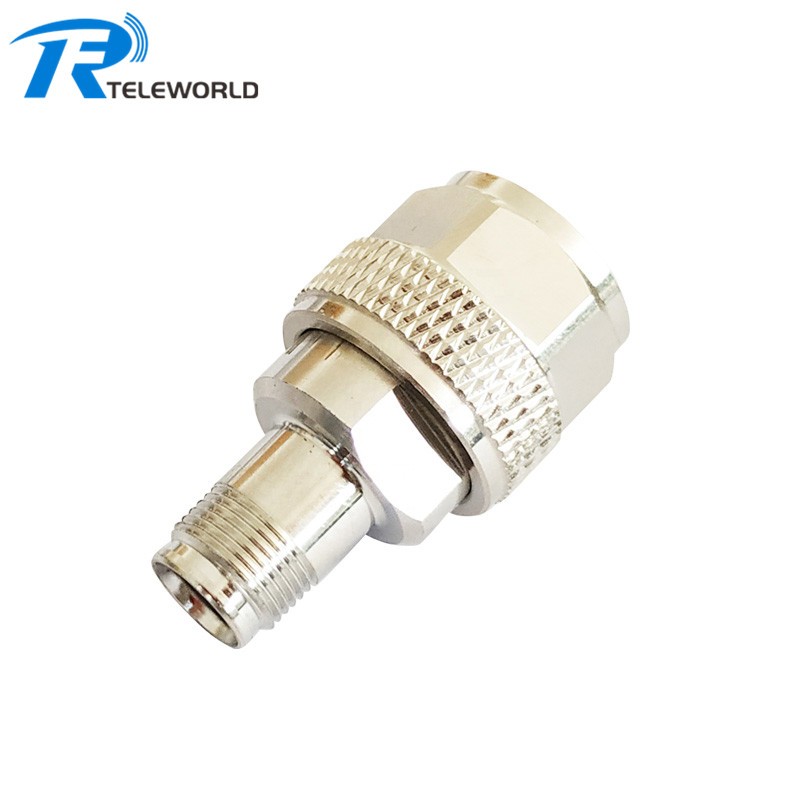

NEX10 M/F to N M/F
NEX10 M/F to 3.5mm M/F

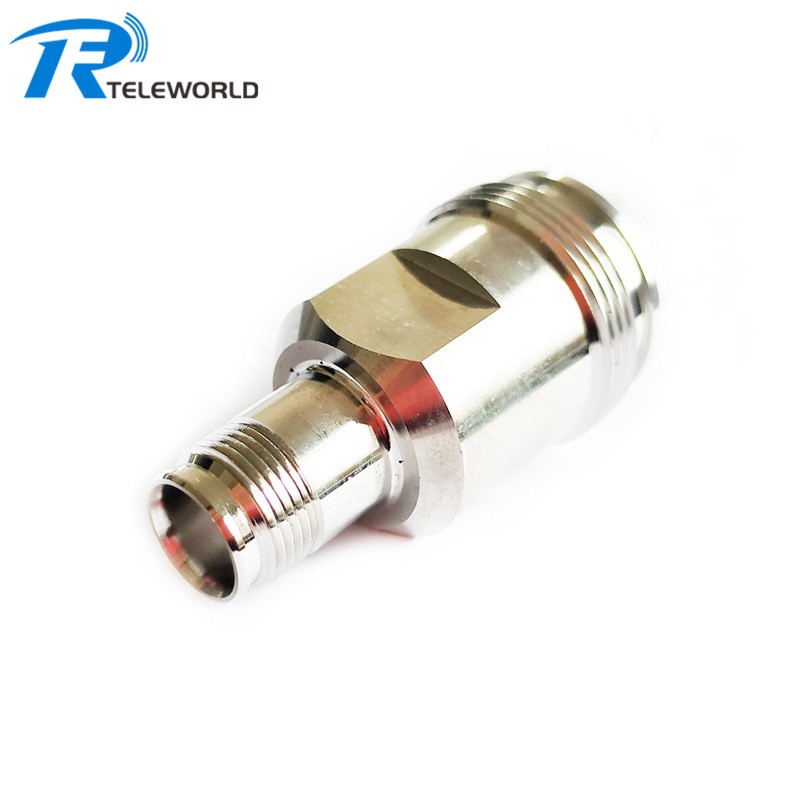

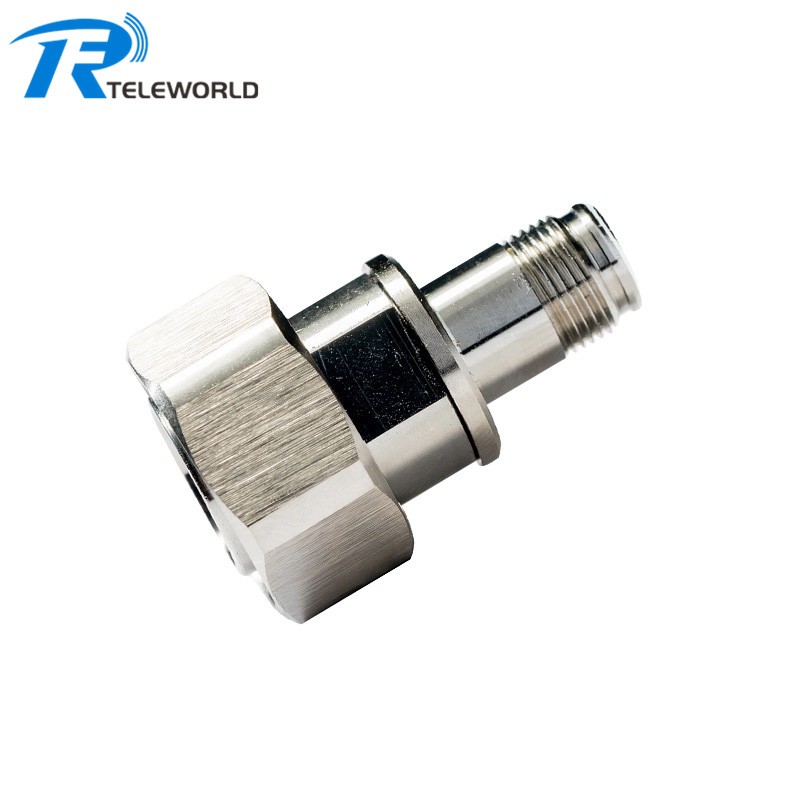

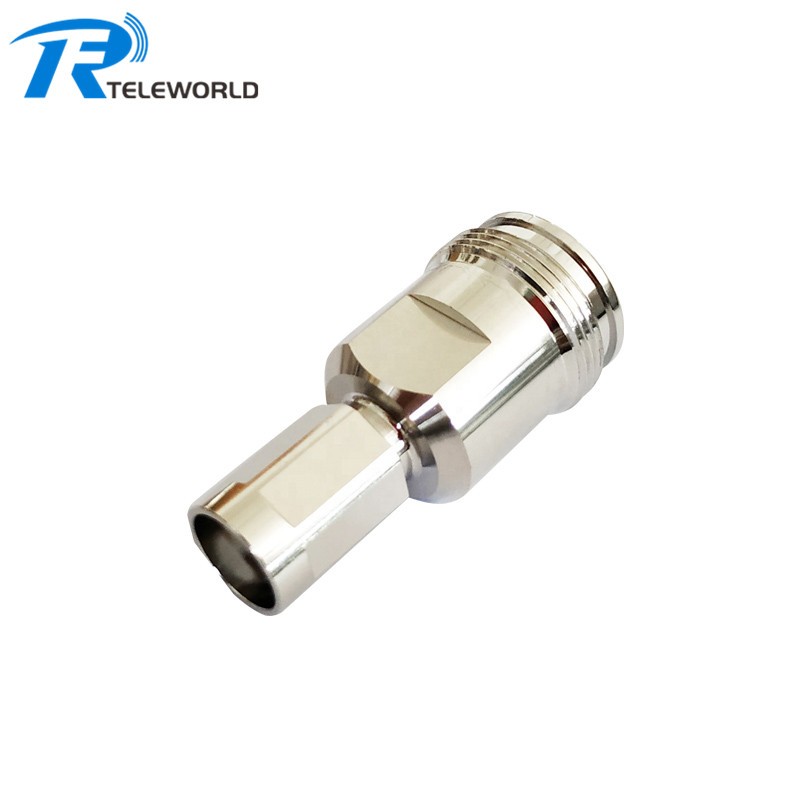

NEX10 M/F to 4.3-10 M/F

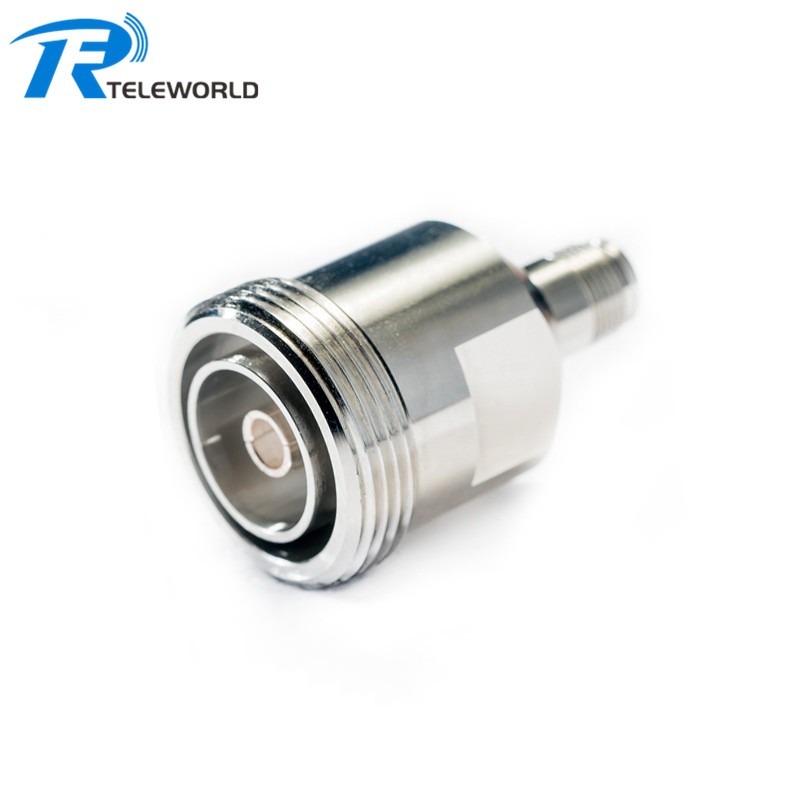

NEX10 M/F to 7/16 DIN M/F
| NEX10 | 4.3-10 | DIN | N | |
| Passive Intermodulation | -166dBc @2*43dBm | -166dBc @2*43dBm | -165dBc @2*43dBm | -155dBc @2*43dBm |
| Power Handling | 100W(2GHz) | 500W(2GHz) | 1000W(2GHz) | 300W(2GHz) |
| Frequency Range | 20GHz | 6GHz | 6GHz | 6GHz |
| Return Loss | 36dB@4GHz | 36dB@4GHz | 36dB@4GHz | 36dB@4GHz |
| 34dB@6GHz | 32dB@6GHz | 32dB@6GHz | 32dB@6GHz | |
| Coupling Mechanisms | Screw | Screw | Screw | Screw |
| Push Pull | Push Pull | |||
| Hand Screw | Hand Screw | |||
| Packaging Density | 12.7mm | 25.4mm | 32mm | 25.4mm |
