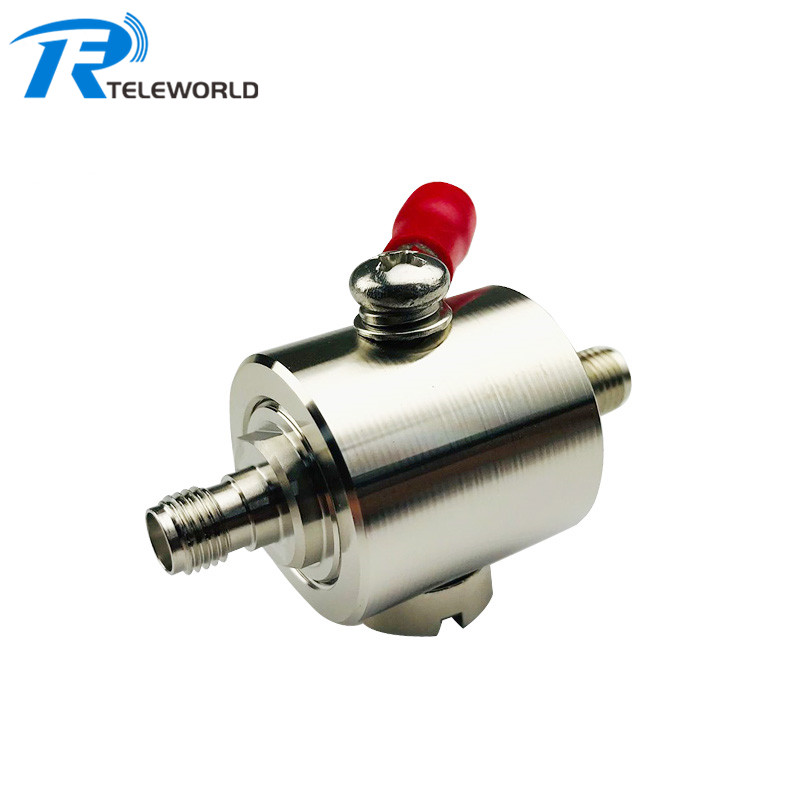

50ohm 6GHz SMA female to SMA female lightning arrester surge protector
TWSASf-50W-6G
Frequency 6GHz
Factory supply with fast delivery
Welcome to send inquiry
Lighting strike by lightning means a calamity to the radio equipment.At the severalty microseconds twinkling of any eye,well up to the dozens of kilovltage per meter,whole system bear enormour.It is with lightning arrester(pass electricity of protecting device) must protecting nature,preventative enclosure fully.Correct exertion,guarantee system high-efficience operation
lightning arrester
Characteristic impedance 50Ω
Contact resistance (normal)
Inner conductor ≤0.4mΩ
Outer conductor ≤0.2mΩ
Frequency range : DC-3G/6G optional
Maximum allowable power (w): 50W
Flow capacity: (kA@8/20μS wave): 10
Nominal discharge voltage (V): 230
Residual voltage (): <600
Standing wave (dB): ≤1.2
Insertion loss (dB): <0.15
Enclosure protection rating : IP67
