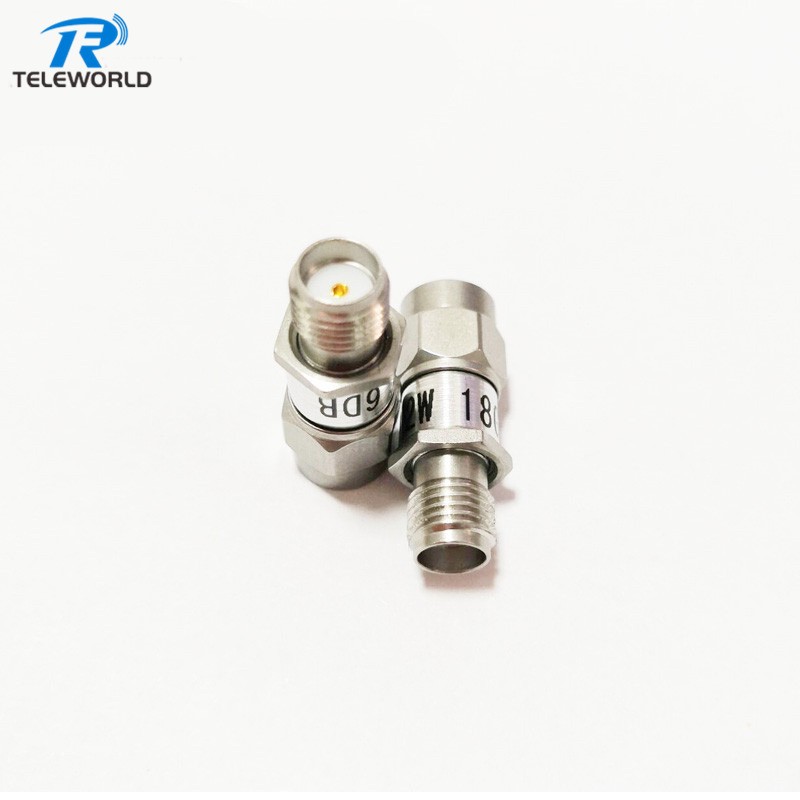

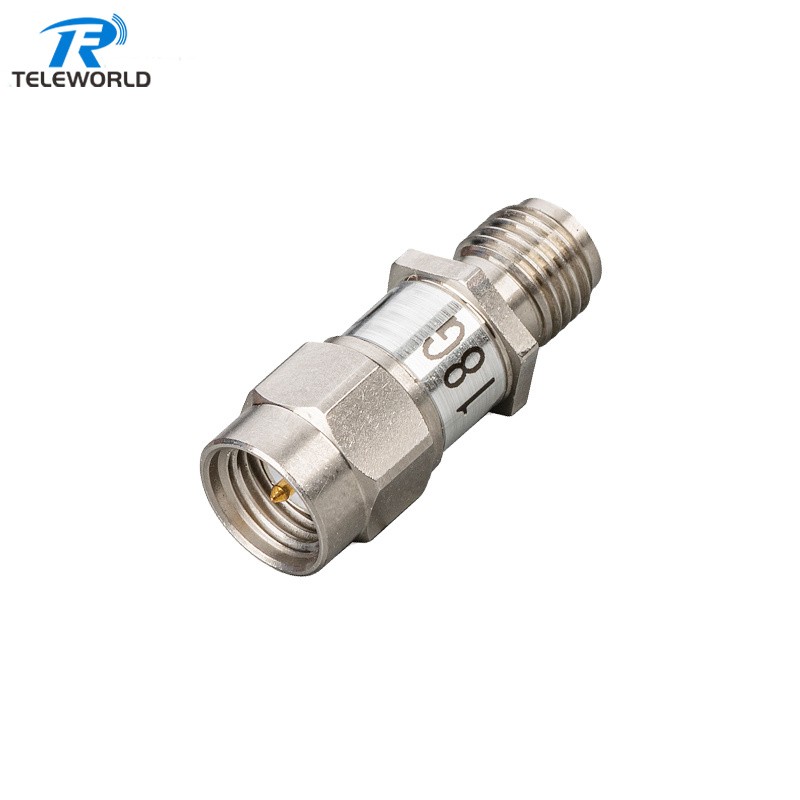

Stainless steel 2W SMA Fixed Attenuator 6GHz 8GHz 12GHz 18GHz 26.5GHz 0dB 1dB 2dB 3dB 4dB 5dB 6dB 7dB 8dB 9dB 10dB 15dB 20dB 25dB 30dB 40dB 50ohm
TWASm-2-18-XX
Frequency 0-18GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-40dB,Customized support
Factory supply,Fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz.
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-18G,2W SMA Attenuator stainless steel PassivatedTechnical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 18GHz (up to 26.5GHz optional) |
| VSWR | 6GHz≤1.2 | POWER RATING | 2W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | 1-10dB (Φ8*21.8mm),11-30dB (Φ8*25mm) | ||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,15,20,30dB available, and 1-10dB.±0.8dB,15-30dB±1dB | ||
