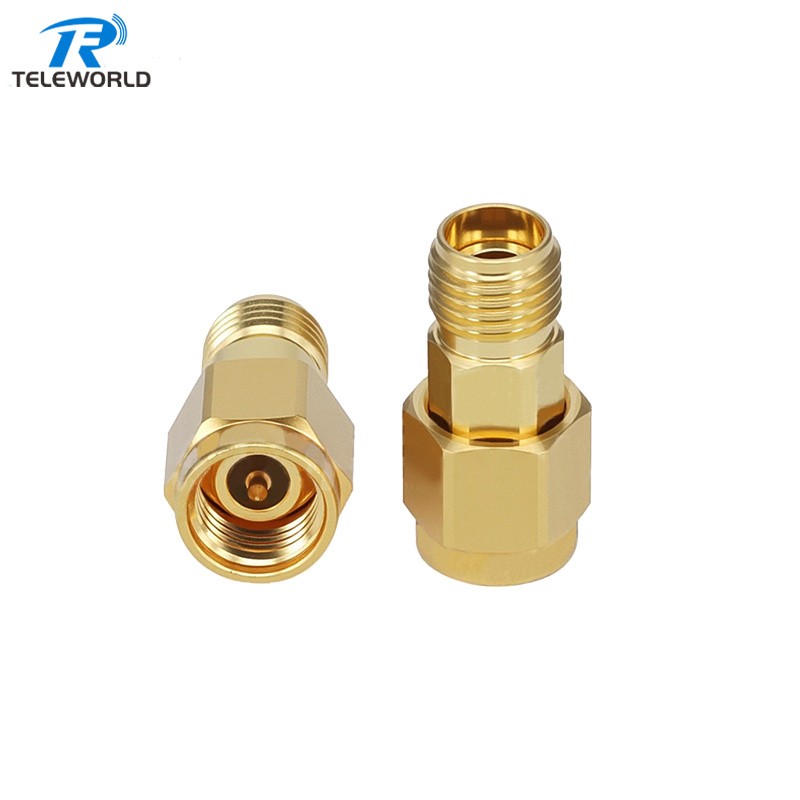

2W 2.92mm Non-magnetic Cryogenic Attenuator 40GHz 0dB 1dB 2dB 3dB 5dB 6dB 10dB 15dB 20dB 30dB 50ohm
TWAL2.92X-2-40-XX
Frequency DC-40GHz
2.92mmJ-J,J-K,K-K
Factory supply,Fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz.
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-40G,2W SMA Non-magnetic Cryogenic Attenuator stainless steel PassivatedTechnical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 40GHz |
| VSWR | ≤1.25 | POWER RATING | 2W |
| TEMPERATURE RANGE | -260°C to +125°C | ||
| Dimensions: | Φ9x17.2mm | ||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,20,30dB available, and 1-10dB(-0.7/+0.8),20.30dB(-0.8/+1) | ||
