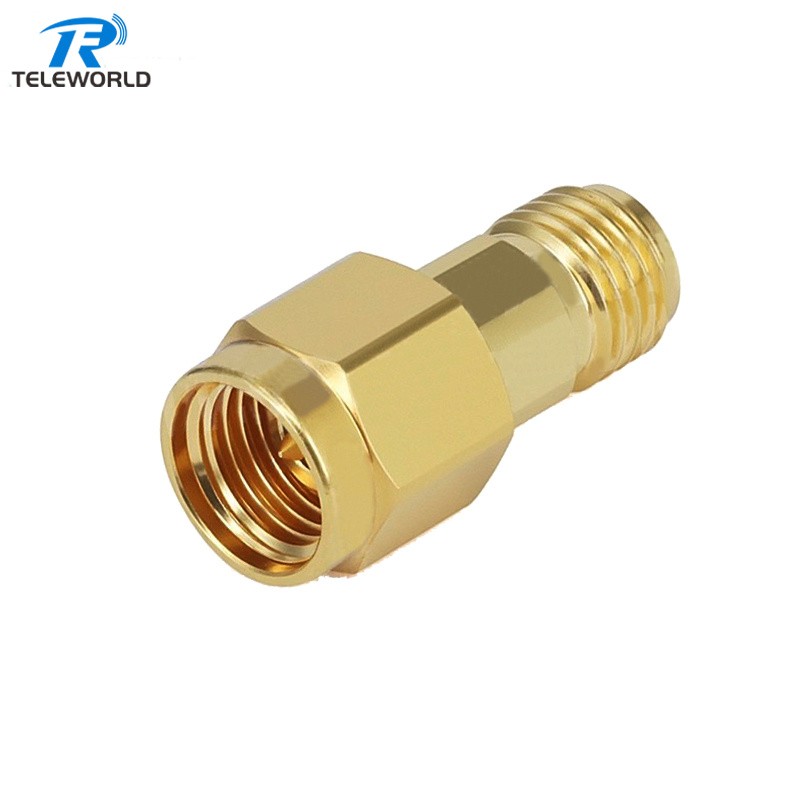

2W SMA Cryogenic Attenuator Non-magnetic Low-Temperature 18GHz 27GHz 0dB 1dB 2dB 3dB 5dB 6dB 10dB 15dB 20dB 30dB 50ohm
TWALSX-2-27-XX
Frequency DC-27GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Factory supply,Fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz.
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-27G,2W SMA Non-magnetic Cryogenic Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 27GHz |
| VSWR | ≤1.25 | POWER RATING | 2W |
| TEMPERATURE RANGE | -260°C to +125°C | ||
| Dimensions: | Φ9x16.3mm | ||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,20,30dB available, and 1-30dB(-0.6/﹢0.8) | ||
