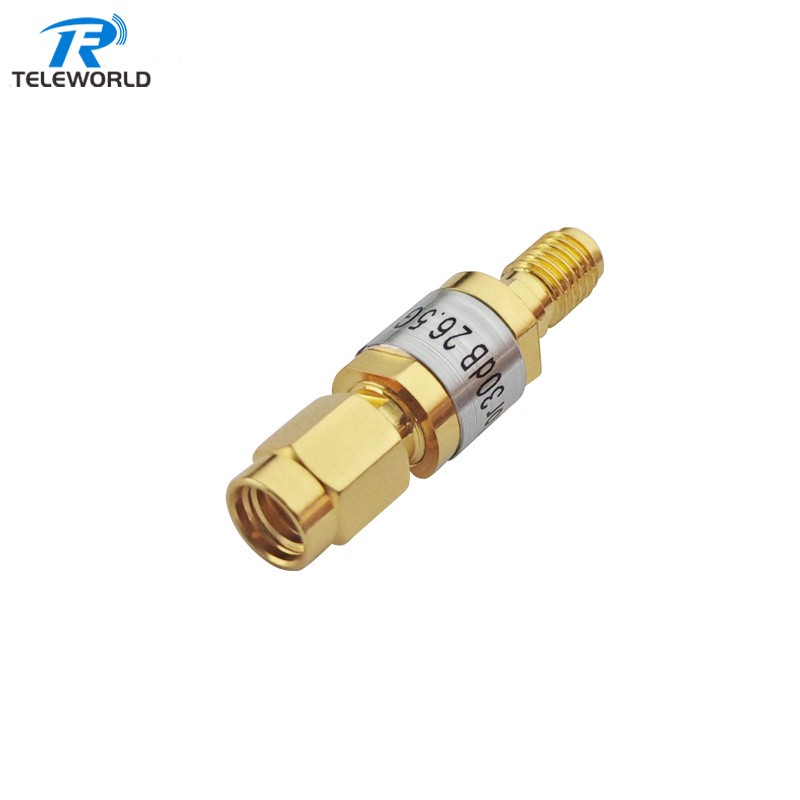

2W SSMA Fixed Attenuator 1dB 2dB 3dB 4dB 5dB 6dB 7dB 8dB 9dB 10dB 15dB 20dB 30dB 40dB 26.5GHz
TWASS-2-26.5-XX
Frequency 0-26.5GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-40dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed Attenuator are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-26.5GHz, 2W SSMA RF Coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 26.5GHz |
| VSWR | 8G≤1.25 | POWER RATING | 2W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | Φ8x30mm | ||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,15,20,30,40dB available, and 1-30dB±1dB,40dB±1.2dB | ||
