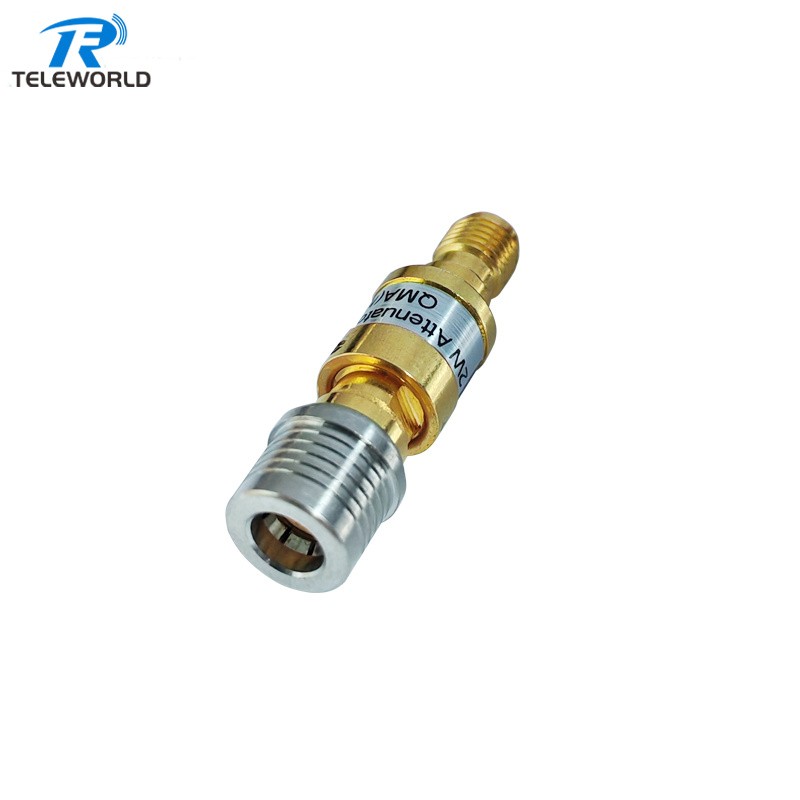

2W QMA to SMA Fixed Attenuator 3GHz 4GHz 6GHz 1db.2db.3db.5db.6db.10db.15db.20db.30db 50ohm
TWAQS-2-6G
Frequency 0-6GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-40dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz.
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-6GHz, 2W QMA Fixed Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 6GHz |
| VSWR | ≤1.2 | POWER RATING | 2W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | φ10*30 mm | ||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,15,20,30dB available, and 1-9dB.±0.6dB,10-30dB±1dB | ||
