Home > Products >> Coaxial Fixed Attenuator >> 1W 2W Coaxial Fixed Attenuator

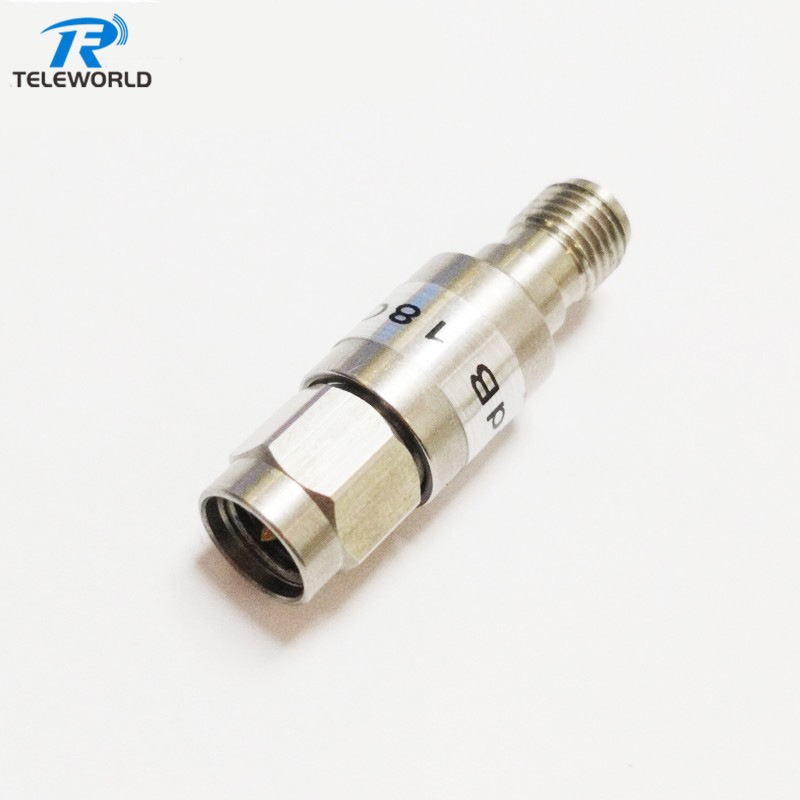

Stainless steel 2W SMA Fixed Attenuator 6GHz 8GHz 10GHz 12GHz 18GHz 1dB 2dB 3dB 4dB 5dB 6dB 7dB 8dB 9dB 10dB 15dB 20dB 30dB 40dB 50dB 60dB 50ohm

TWAS-2-6G
Frequency 0-6GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-40dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry

  • Product Description
  • Test Report

Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz

1.High quality with fast delivery

2.Professional R&D team

3.OEM&ODM service support

4.Competitive price

As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional

welcome to send inquiry,we will do our best to support


Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.


Applications:

Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.


50ohm DC-6GHz, 2W SMA Fixed Attenuator Technical Specifications:
NORMINAL IMPENDANCE50ΩFREQUENCY RANGEDC to 6GHz(up to 18GHz optional)
VSWR

6G≤1.2
18G≤1.35

POWER RATING2W
TEMPERATURE RANGE-55°C to +125°C
Dimensions:φ10*30 mm
Attenuation1,2,3,4,5,6,7,8,9,10,15,20,30dB available, and 1-9dB.±0.6dB,10-30dB±1dB

2 Watt SMA Fixed Attenuator 6GHz 8GHz 10GHz 12GHz 18GHz 1dB 2dB 3dB 4dB 5dB 6dB 7dB 8dB 9dB 10dB 15dB 20dB 30dB 50ohm
