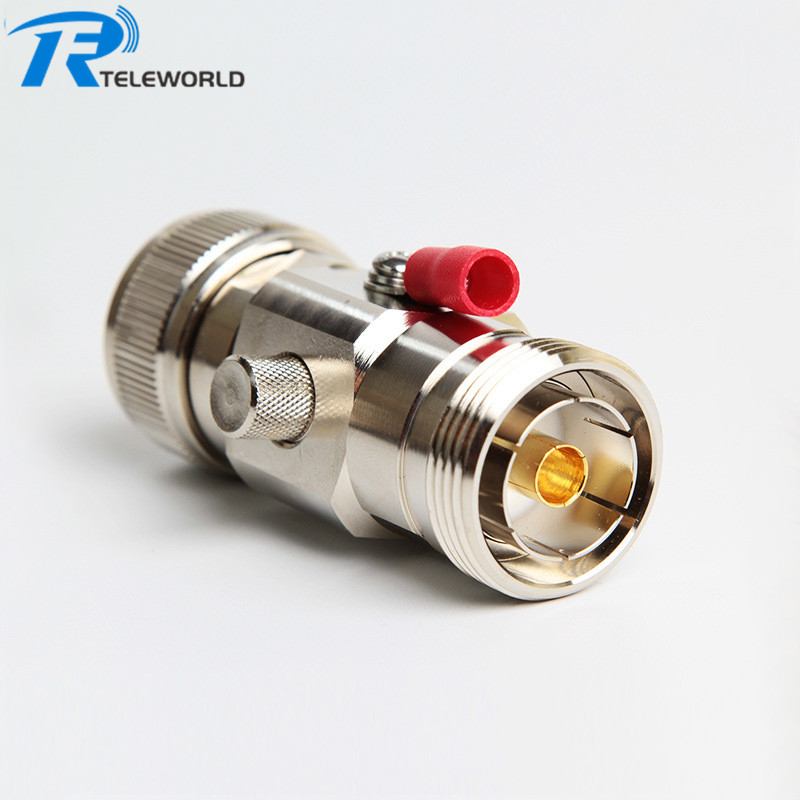

500W Lightning protector L27 surge arrester male to female 1.5GHz 50ohm
TWSAL27-500W-1.5G
Frequency 1.5GHz
Factory supply with fast delivery
Welcome to send inquiry
Lighting strike by lightning means a calamity to the radio equipment.At the severalty microseconds twinkling of any eye,well up to the dozens of kilovltage per meter,whole system bear enormour.It is with lightning arrester(pass electricity of protecting device) must protecting nature,preventative enclosure fully.Correct exertion,guarantee system high-efficience operation
lightning arrester
Characteristic impedance: 50Ω
Contact resistance (normal) Inner conductor ≤ 0.5mΩ
Outer conductor ≤0.5mΩ
Frequency range (MHz): DC-1500
Maximum allowable power (w): 500
Flow capacity: (kA@8/20μS wave): 10
Nominal discharge voltage (V): 230
Residual voltage (1kV/μs): <600
Standing wave (dB): ≤1.2
Insertion loss (dB): <0.2
Shell protection rating: IP67
