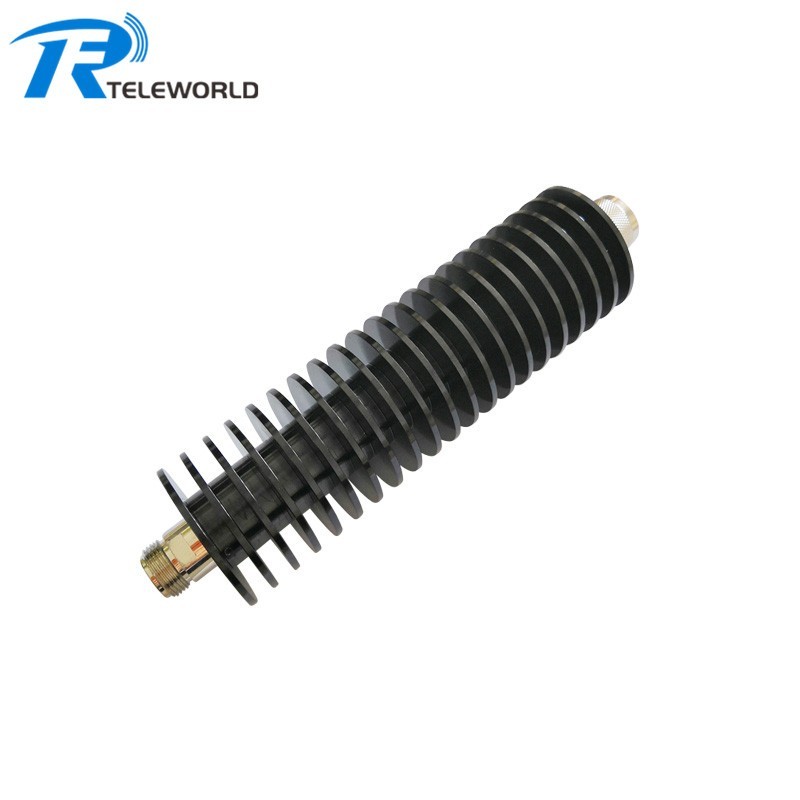

150W RF Coaxial Attenuator 8.5GHz 10GHz 10dB 20dB 30dB 40dB 50dB 50ohms
TWANF-150-8.5G
Frequency 8.5/10GHz optional
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-50dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-8.5G, 150W N coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 8.5/10GHz |
| VSWR | ≤1.35 | POWER RATING | 150W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 10,20,30,40,50dB available, and 10-30dB±1dB,40-50 ±1.5dB | ||
