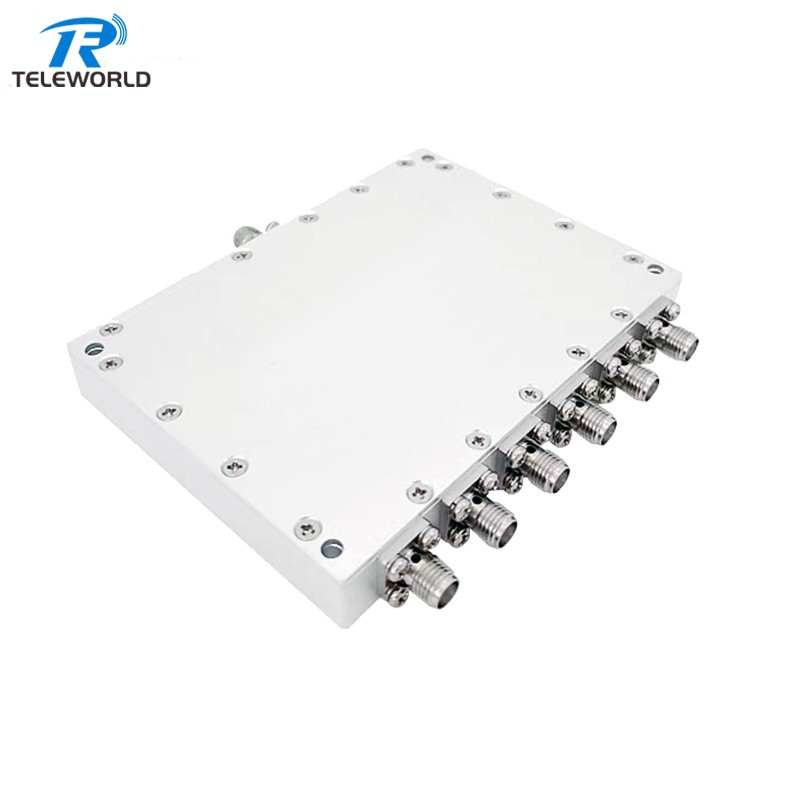

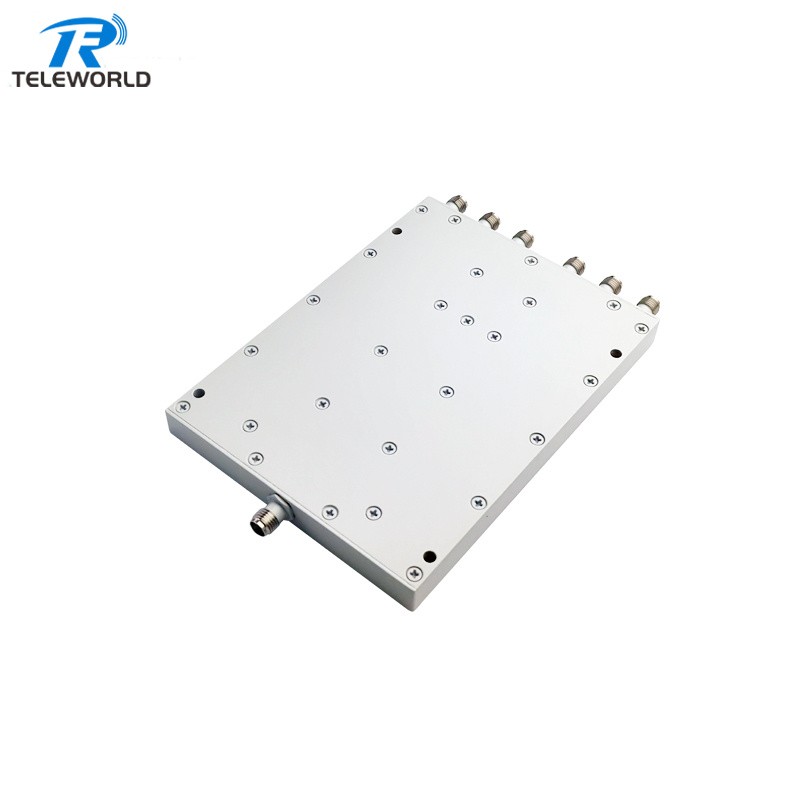

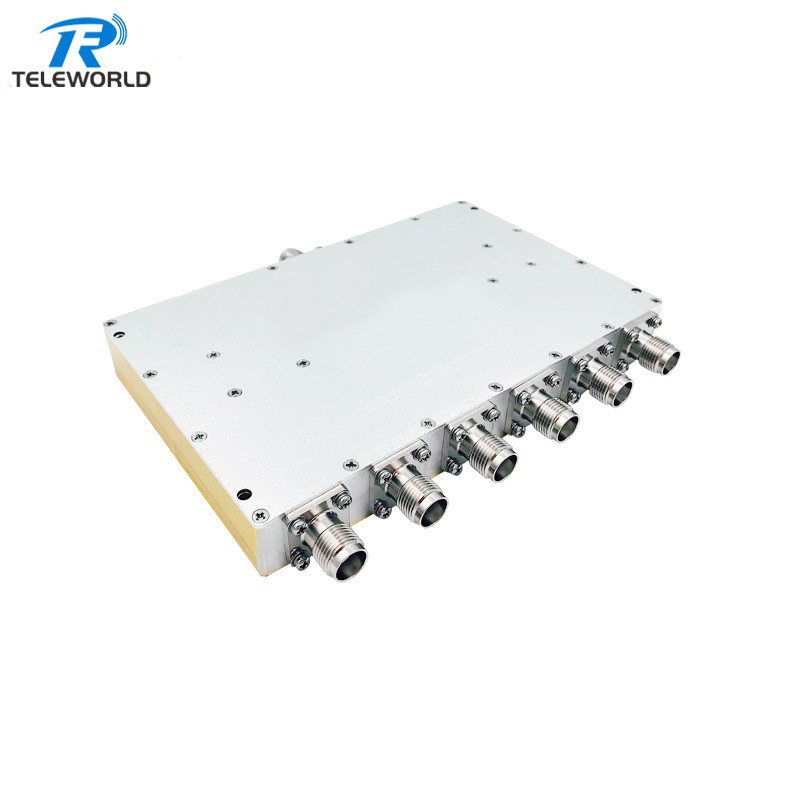

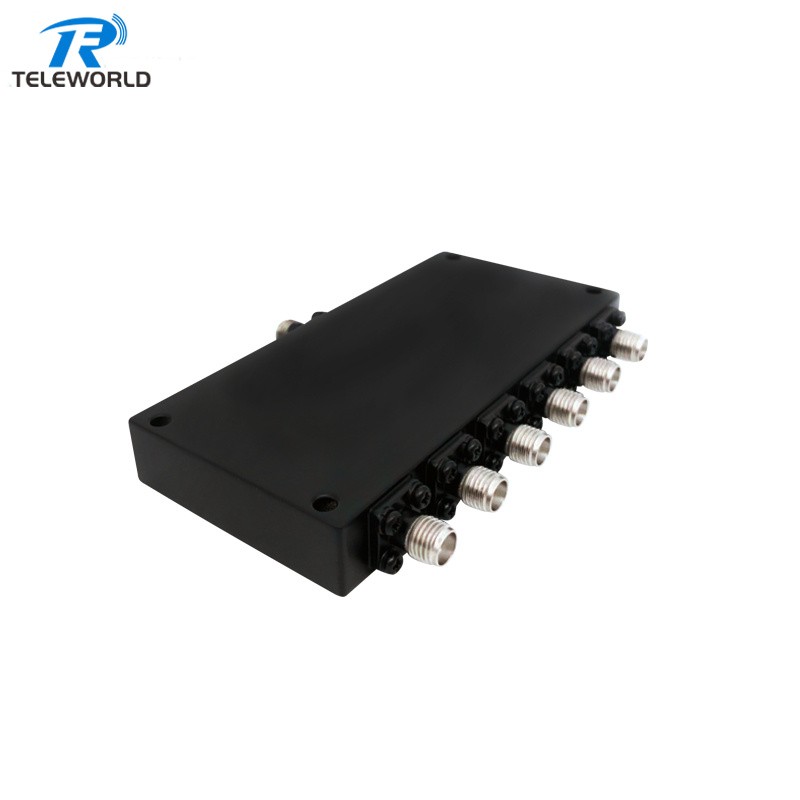

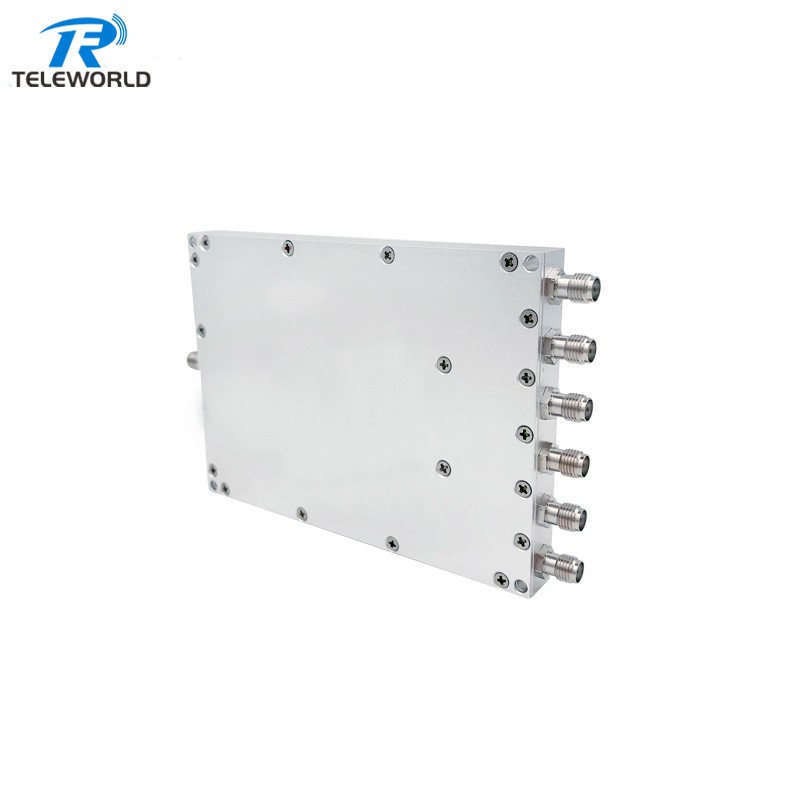

30W 0.5-6GHz SMA 6 way RF Splitter Power Divider 500-6000MHz 50ohm
Frequency 500-6000MHz
Factory supply with fast delivery
Welcome to send inquiry
Factory service,Customized support
2Way/3way/4way/6way/8way/12way/16way/32way/64way optional
Wide frequency optional and up to 50GHz
Series connector optional SMA/N/BNC/2.92mm/2.4mm
A power divider divides an incoming signal into two (or more) output signals. In the ideal case, a power divider can be considered loss-less, but in practice there is always some power dissipation. Because it is a reciprocal network, a power combiner can also be used as a power combiner, where two (or more) ports are used to combine input signals into a single output.Theoretically, a power divider and a power combiner can be the exact same component, but in practice there may be different requirements for combiners and dividers, such as power handling, phase matching, port match and isolation.
| SN | Parameters | Specifications |
| 1 | Frequency Range | 500-6000MHz |
| 2 | Insertion Loss | ≤ 2.2dB（Excluding theoretical loss 7.8dB） |
| 3 | Input Port VSWR | Typ.1.22 / Max.1.3 |
| 4 | Output Port VSWR | Typ.1.2 / Max.1.3 |
| 5 | Isolation | Typ. 24dB / Min.18dB |
| 6 | Amplitude Balance | ≤ 0.8dB |
| 7 | Phase Balance | ±8° |
| 8 | Impedance | 50 Ohms |
| 9 | Input/Output Connectors | SMA-Female |
| 10 | Power Rating | Splitter 30W; Combiner 1W |
| 11 | Operation Temperature | -35℃ ~ +75℃ |
