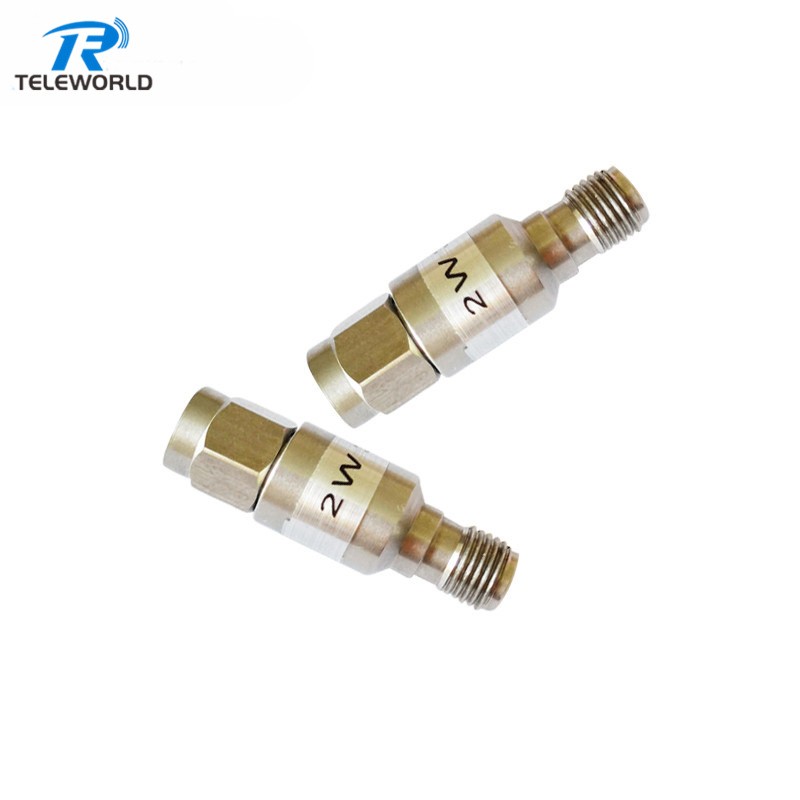

2W SMA DC Block 50V 30MHz-6GHz 50ohm
TWDS-50V-6G
Frequency 6GHz
SMA,N connector optional
Factory supply with fast delivery
Welcome to send inquiry
DC Blocks are coaxial components that prevent the flow of direct current (DC) while offering minimum interference to RF signals.
They have series capacitors on the input and output of the attenuator that allows RF signal to pass but block DC from passing through.
| DC-6GHz SMA 50V DC Block Technical Specifications | |
| Norminal Impendance | 50ohm |
| Frequency range | 30MHz -6GHz |
| VSWR | ≤1.2 |
| Power rating | 2W |
| Temperature range | -35℃ to 85℃ |
| Maximum Voltage | 50V |
| Insertion Loss | ≤0.6dB |
