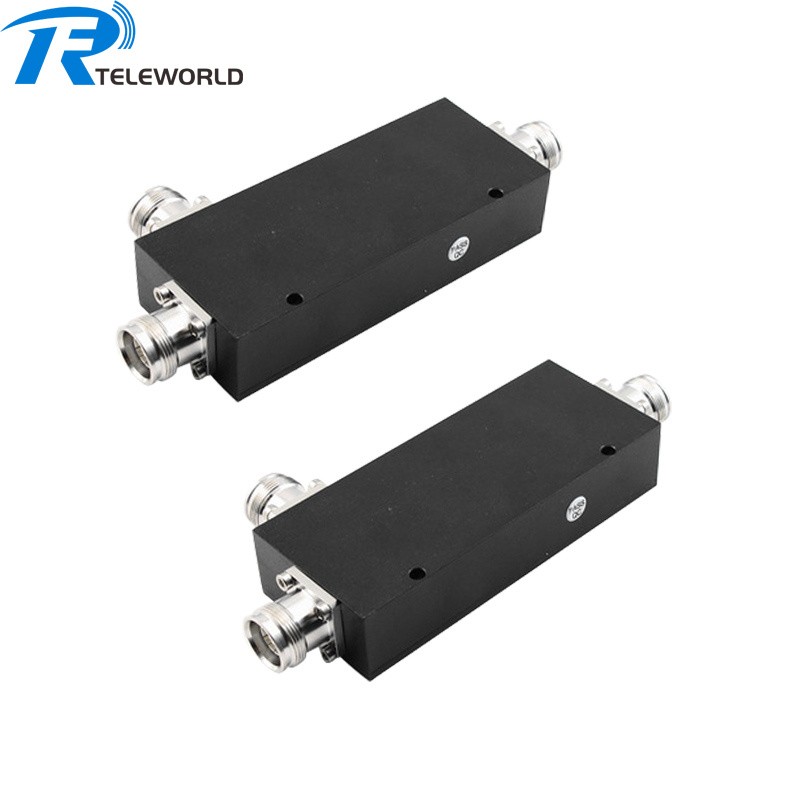

500W 7/16 DIN 5G Directional Coupler Low PIM 698-2700MHz 5dB 6dB 7dB 10dB 15dB 20dB 30dB 40dB 45dB
TWDCD-0827
5-45dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support N/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Coupler is a device with directional transmission characteristics to transfer power between systems. In microwave systems, it is a component that divides the microwave power in one way into several ways proportionally to achieve the power distribution function. Coupler because it has directional, can achieve directional coupling of the signal in the transmission line, and the size of the coupler output can be controlled to achieve signal acquisition and injection. In high-power measurement, the directional coupler can be used in series before absorbing the load and coupling out a small amount of power for measurement, turning high-power measurement into small power measurement.
Mainly used with indoor distribution and signal acquisition
| Model No. | TWDC-0827-5 | TWDC-0827-6 | TWDC-0827-7 | TWDC-0827-10 | TWDC-0827-15 | TWDC-0827-20 | TWDC-0827-30 | TWDC-0827-40 | TWDC-0827-45 |
| Frequency (MHz) | 800-2700 | ||||||||
| Insertion Loss | ≦2.0 | ≦1.75 | ≦1.45 | ≦0.8 | ≦0.5 | ≦0.4 | ≦0.4 | ≦0.4 | ≦0.4 |
| Coupling | 5dB | 6dB | 7dB | 10dB | 15dB | 20dB | 30dB | 40dB | 45dB |
| Accuracy | ±0.8 | ±1.0/±1.0 | ±1.2 | ±1.5 | |||||
| Isolation | ≧25 | ≧26 | ≧27 | ≧28 | ≧33 | ≧38 | ≧48 | ||
| VSWR | ≦1.25 | ||||||||
| PIM | ≦-150dBc@2*43dBm | ||||||||
| Power | 500W | ||||||||
| Impedance | 50 ohm | ||||||||
| RF Connector | 7/16 DIN-female | ||||||||
| Color | Black-plated | ||||||||
| Temperature | -20~+70 | ||||||||
| Application | Indoor or Outdoor, IP60 or IP65 | ||||||||
| Humidity | 5%-95% | ||||||||
| Weight(kg) | 0.60 (Type 7/16 DIN) | ||||||||
