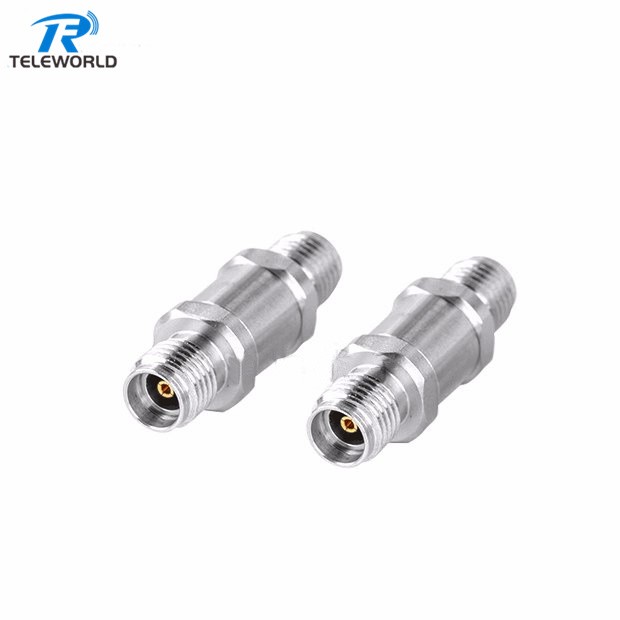

2.92mm to SMA RF Coaxial Adapter 26.5GHz 50ohm
2.92mm to SMA series adapter
Frequency up to 27GHz
Factory supply with fast delivery
Welcome to send inquiry
2.92mm male to SMA female
2.92mm male to SMA male
2.92mm female to SMA female
SMA Precision coaxial connector for microwave applications.the maximum frequency is
27GHz.
•Design in accordance with: IEEE Std 287 TM -2007
Standard materials and finish
•Center conductor:beryllium copper,gold plated
•Insulator:PEI
•Outer conductor:Stainless steel,Passivated
Electrical Characteristics
•Characteristic Impedance:50Ω
•Frequency range:DC-27GHz
•VSWR:1.15:1 max
•Insulation resistance: 5000MΩmin
•Test voltage:1000V
Mechanical
•Coupling torque:1.69N• max
•Mating cycles: 500cycles min
Environmental
•Temperature range: -55℃~+155℃
