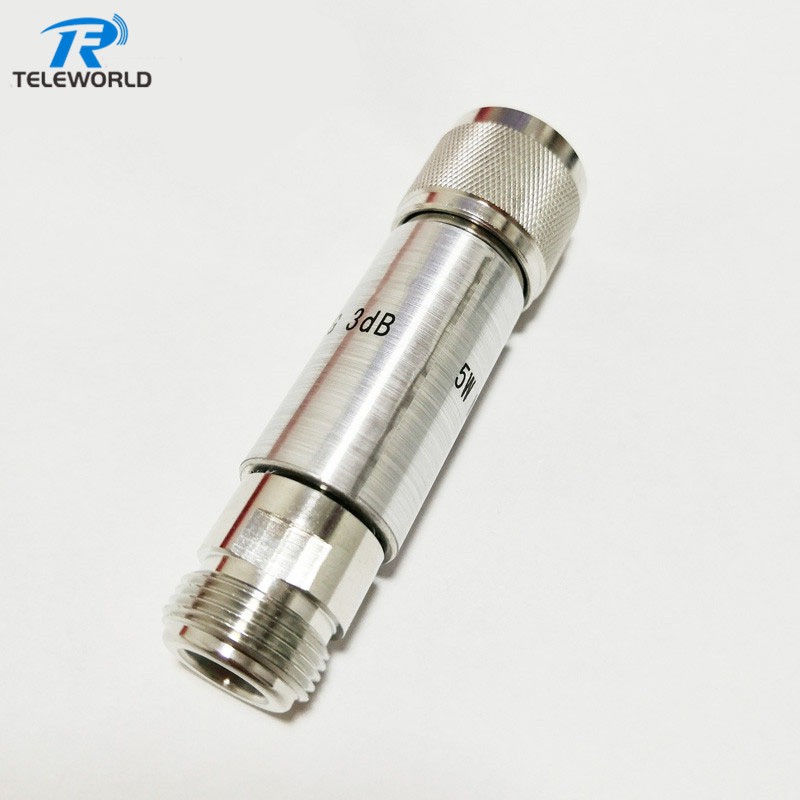

Stainless steel 5W RF Coaxial Attenuator N Male to Female 3GHz 6GHz 8Ghz 12Ghz 18GHz 3dB 6dB 9dB 10dB 20dB 30dB 40dB 50ohm
TWANS-5-6-XX
Frequency 0-6GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-40dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
5W stainless steel Coaxial Attenuator 3GHz 6GHz 8Ghz 12Ghz 18GHz 3dB 6dB 9dB 10dB 20dB 30dB 50ohm
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz.
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-6GHz, 5W N Coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 6GHz(up to 18GHz optional) |
| VSWR | 6G≤1.25 | POWER RATING | 5W |
| TEMPERATURE RANGE | -55°C to +120°C | ||
| Dimensions: | φ20*70mm | ||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,15,20,30.40dB available, and 1-9dB.±0.6dB,10-40dB±1dB | ||
