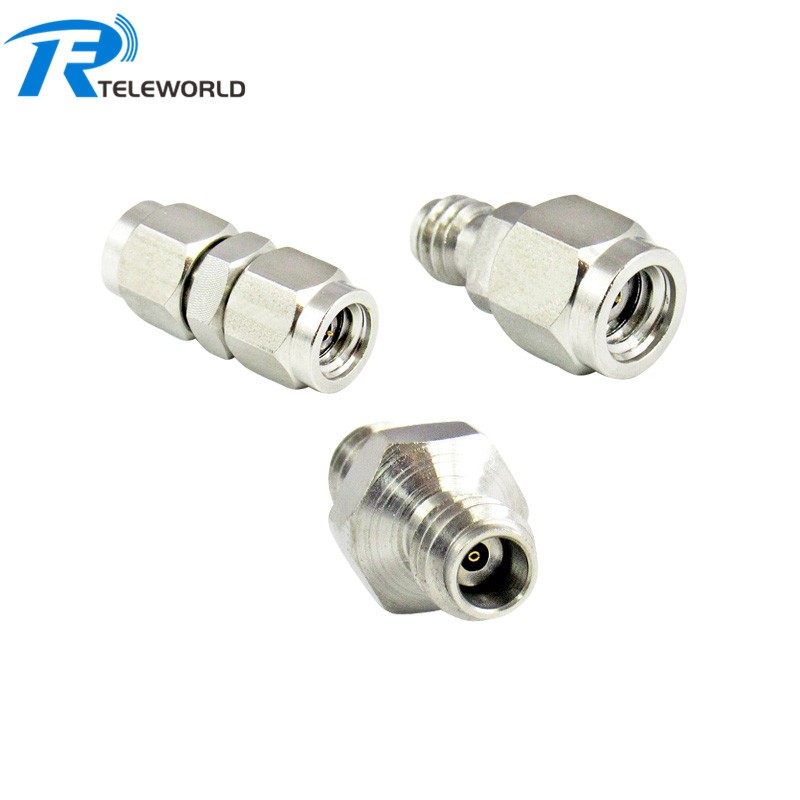

  • 1.0mm to 1.85mm Millimeter RF Adapter 67GHz

    • 1.0mm to 1.85mm Millimeter RF Adapter 67GHz

    1.85mm series adapter
    Frequency up to 67GHz
    Factory supply with fast delivery
    Welcome to send inquiry

    Inquire Now
    • Product Description

    1.0mm male to 1.85mm male

    1.0mm male to 1.85mm female

    1.0mm female to 1.85mm male
    1.0mm female to 1.85mm female


    Adapter 1.0mm female to 1.85mm female

    1.85 Precision coaxial connector for microwave applications.the maximum frequency is 67GHz.

    •Design in accordance with: IEEE Std 287 TM -2007

    Standard materials and finish

    •Center conductor:beryllium copper，gold plated

    •Insulator:PEI

    •Outer conductor:Stainless steel,Passivated

    Electrical Characteristics

    •Characteristic Impedance:50Ω

    •Frequency range:DC-67GHz

    •VSWR:1.25:1 max

    •Insulation resistance: 5000MΩmin

    •Test voltage:500V

    Mechanical

    •Coupling torque:1.69N• max

    •Mating cycles: 500cycles min

    Environmental

    •Temperature range: -55℃～+155℃

    High quality SMA to SMA Straight Adapter up to 26.5Ghz 50ohm
