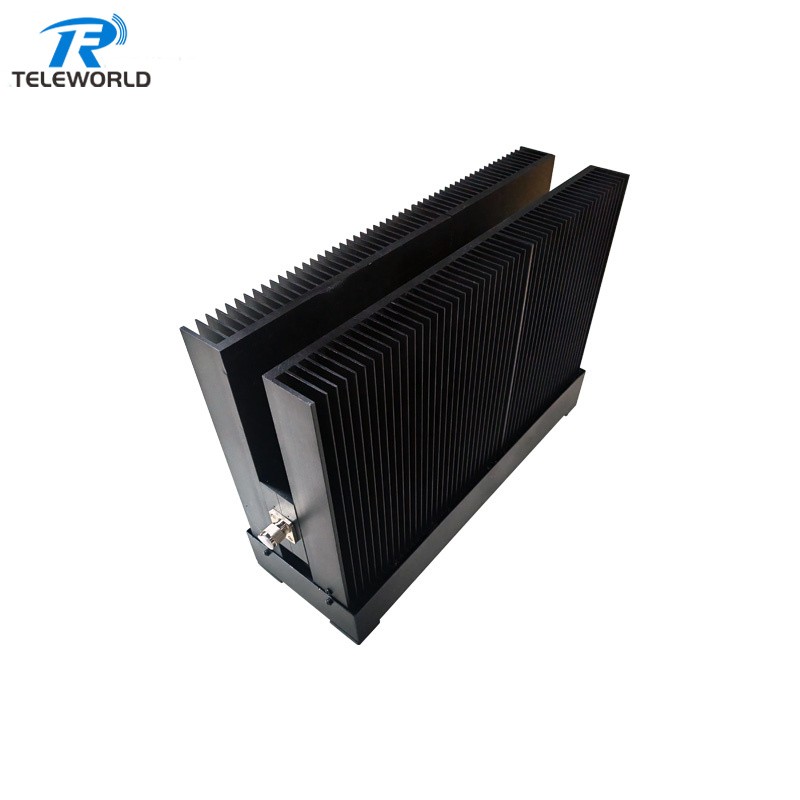

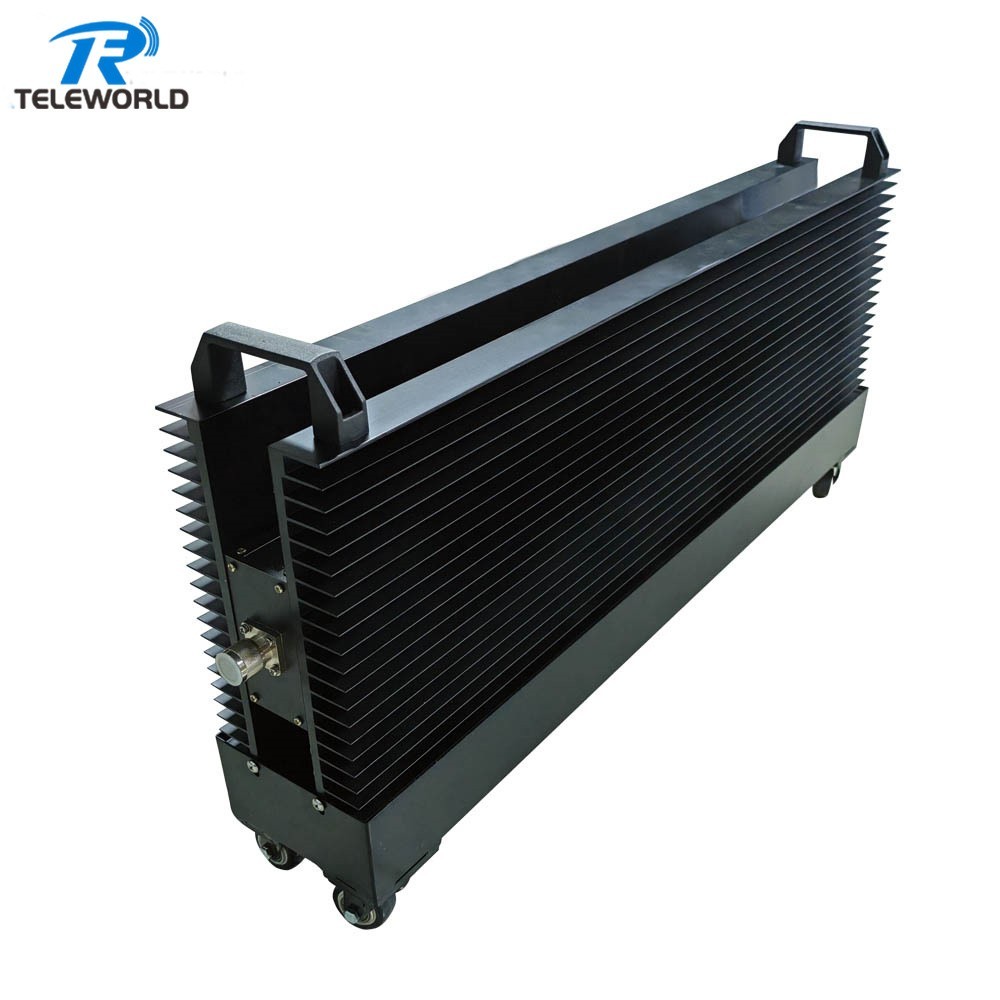

1000W RF Coaxial Attenuator 20dB 30dB 40dB 50dB 1GHz 2Ghz 3GHz 6GHz
TWANE-1000-3-XX
Frequency 1-3/4/6GHz optional
Attention range from 10-50dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-1/2/3GHz, 1000W N coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 1/2/3/4/6GHz |
| VSWR | 3GHz≤1.4 | POWER RATING | 1000W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 30.40.50dB available, and 30-40dB.±1.5dB,50dB±2dB | ||
