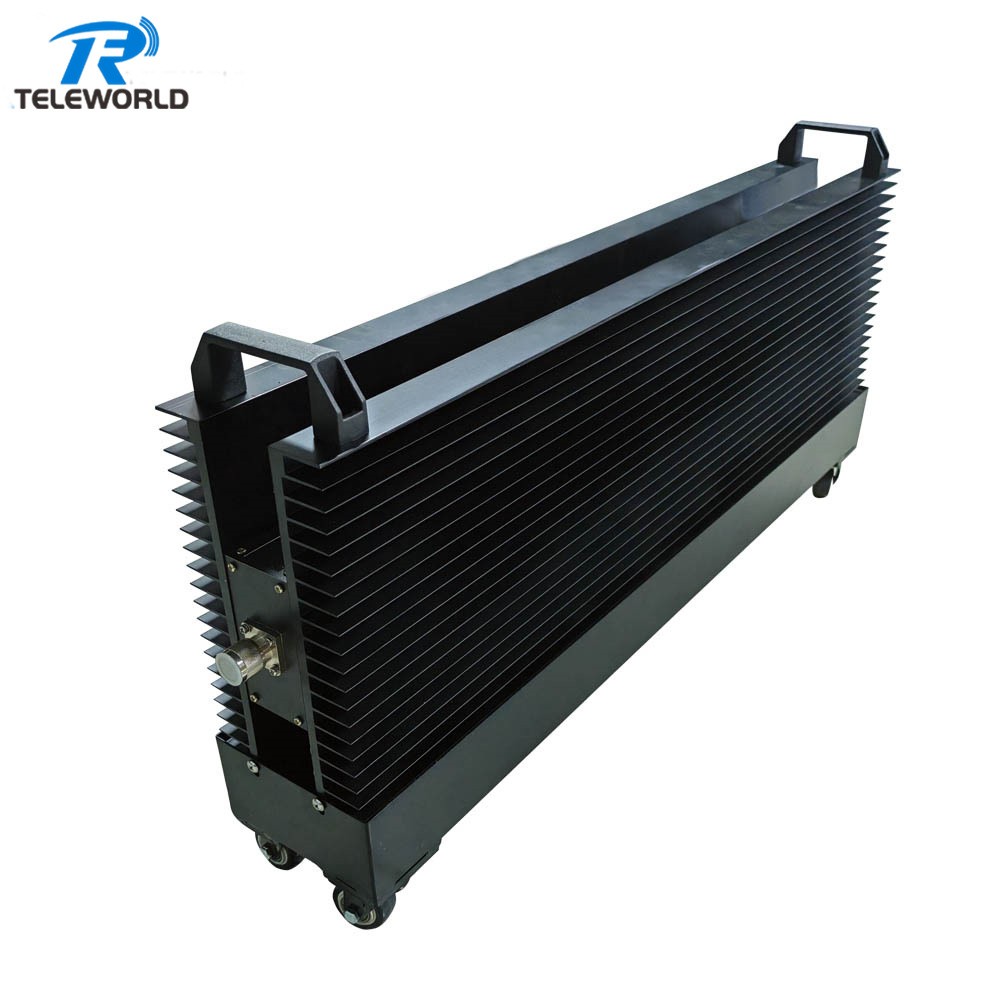

Continuous Power 1000W RF Termination Dummy load 1GHz 2GHz 3GHz 6GHz
TWTN-1000-3G
Frequency 1-3G optional
N and DIN Connector optional
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.
| DC-1/2/3GHz, 1000W RF Termination Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 1/2/3GHz |
| VSWR | 3GHz≤1.55 | POWER RATING | 1000W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | 425×170×410mm | ||
| Cononector | N and DIN Connector optional | ||
