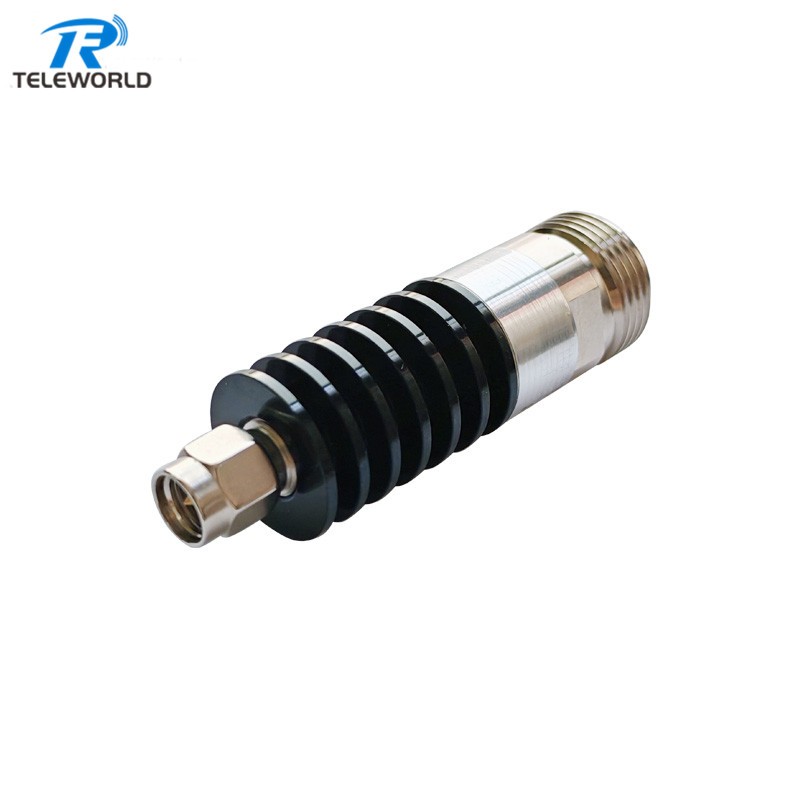

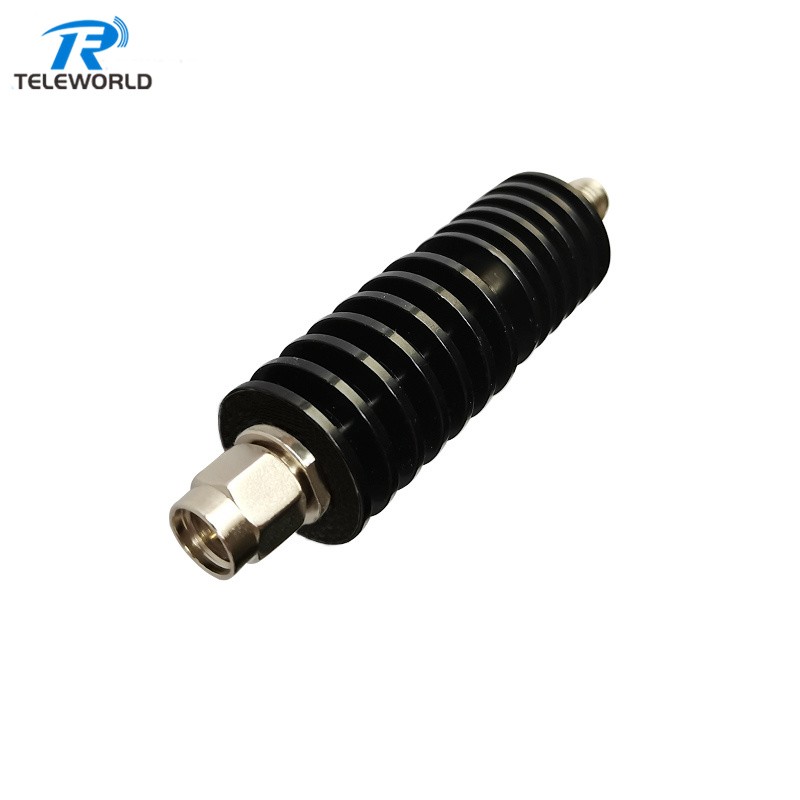

10W SMA Attenuator 26.5GHz 1dB 2dB 3dB 5dB 6dB 10dB 20dB 30dB 40dB 50ohm
TWASX-10-26.5-XX
Frequency 0-26.5GHz
Attention range from 1-30dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on coaxial attenuator,termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-26.5GHz, 10W SMA Fixed Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 26.5GHz |
| VSWR | ≤1.25 | POWER RATING | 10W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | Φ32x39mm | ||
| Attenuation | 1-10,20,30dB available,1-10dB -0.6/+1.0dB，20-30dB±1dB | ||
