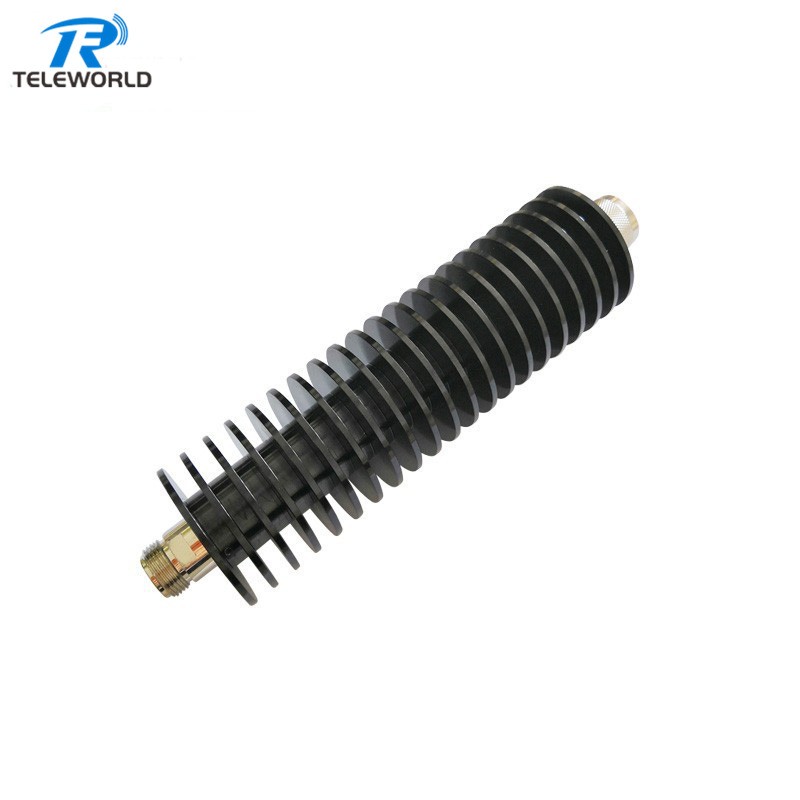

150W RF Coaxial Attenuator 3GHz 6GHz 8.5GHz 10GHz 3dB 6dB 10dB 20dB 30dB 40dB 50dB 50ohms
TWAND-150-8G
Frequency 8.5/10GHz optional
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-50dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed Attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-8G, 150W N coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 8/10GHz |
| VSWR | 8G≤1.4 | POWER RATING | 150W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | 173×130×75mm | ||
| Attenuation | 3.6.10,20,30,40,50dB available, and 10-20dB±1.7dB,30-50 ±1.5dB | ||
