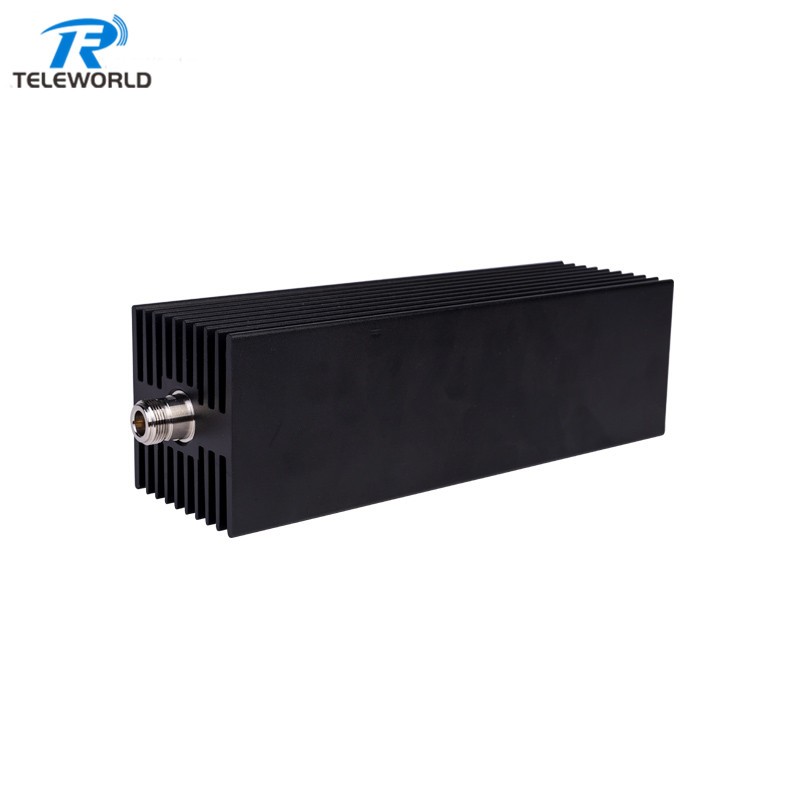

  • 200W 4.3-10 7/16 DIN RF Termination Dummy Load 2GHz 3GHz 4GHz 50ohm

    • 200W 4.3-10 7/16 DIN RF Termination Dummy Load 2GHz 3GHz 4GHz 50ohm

    TWTmD-200-3G
    SMA/N connector optional
    Frequency 6/8/12.4/18GHz optional
    Factory supply with fast delivery
    Welcome to send inquiry

    Inquire Now Next Product
    • Product Description

    Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz

    1.High quality with fast delivery

    2.Professional R&D team

    3.OEM&ODM service support

    4.Competitive price

    As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional

    welcome to send inquiry,we will do our best to support


    Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.


    200W 4.3-10 RF Termination, Dummy load 2/3/4GHz 50ohm
    Norminal Impendance50ohm
    Frequency rangeDC-2/3/4GHz
    VSWR

    3GHz≤1.2
    4GHz≤1.25

    Power rating200W
    Temperature range-55℃ to 125℃

    200W RF Terminator Dummy Load 3GHz 4GHz 6GHz 8GHz 12.4GHz 18GHz 50ohm


    Tags: 200W 4.3-10 RF Termination, 200W 4.3-10 Dummy load, 200W 4.3-10 RF load, 200W 4.3-10 RF Terminator, 200W 4.3-10 Termination load, 200W DIN RF Termination, 200W DIN Dummy load, 200W DIN RF load, 200W DIN RF Terminator
