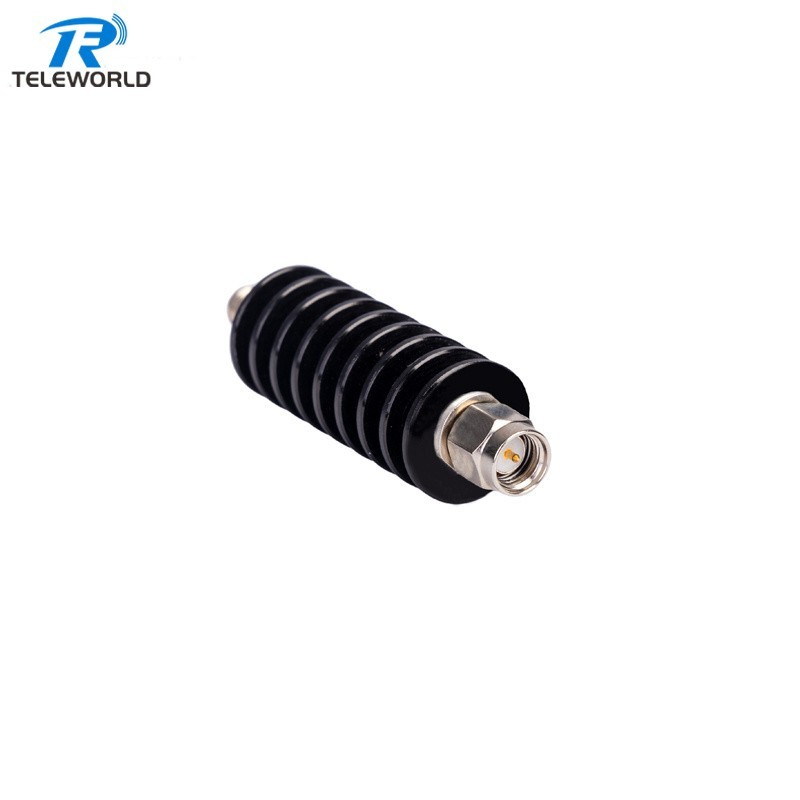

20W SMA Attenuator 6GHz 8GHz 12GHz 18GHz 3dB 6dB 10dB 20dB 30dB 40dB
TWAS-20-6G
Frequency DC-6GHz
Attention range from 10-30dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed Attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-6GHz, 20W SMA Coaxial Fixed Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 6GHz（up to 18GHz optional） |
| VSWR | 6GHz ≤1.25 | POWER RATING | 20W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 1.2.3.6.10,20,30.40.50dB available, and1-30dB with ±0.8dB,40-50dB±1.2dB | ||
