Home > Products >> RF Termination load >> 20W RF Termination Load

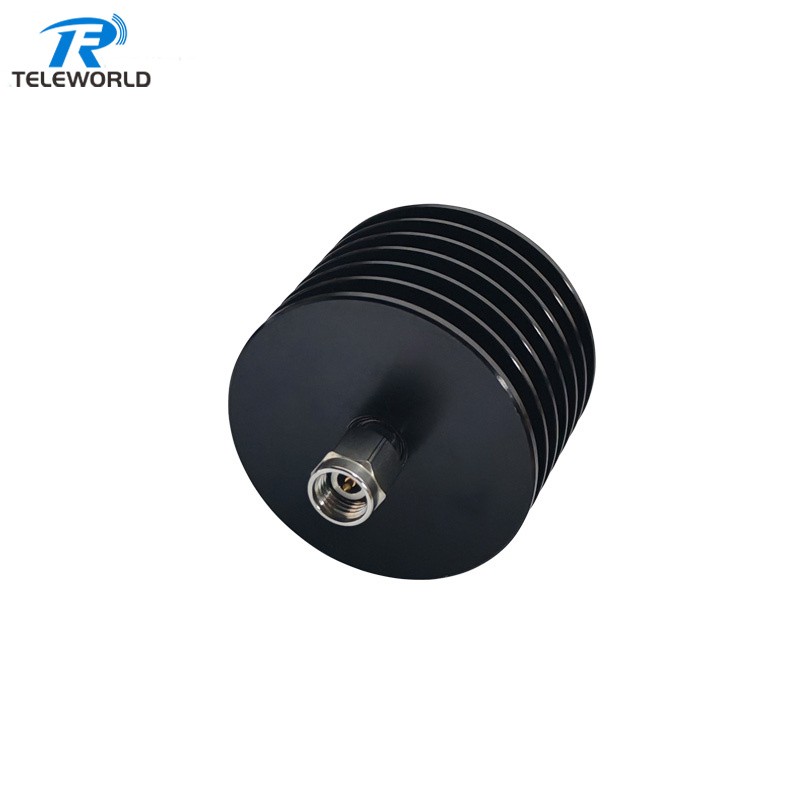

  • 20W 2.92mm 2.4mm RF Termination Terminator Dummy Load 40GHz 50GHz 50ohm

    • 20W 2.92mm 2.4mm RF Termination Terminator Dummy Load 40GHz 50GHz 50ohm

    TWT2.92-20-40G
    Frequency 40GHz
    SMA,N,BNC,4.3-10 connector optional
    Factory supply with fast delivery
    Welcome to send inquiry

    Inquire Now Next Product
    • Product Description

    Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz

    1.High quality with fast delivery

    2.Professional R&D team

    3.OEM&ODM service support

    4.Competitive price

    As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional

    welcome to send inquiry,we will do our best to support


    Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.


    20W 2.92mm 2.4mmRF Terminator, dummy load 40GHz 50GHz 50ohm
    Norminal Impendance50ohm
    Frequency rangeDC- 40GHz/50GHz

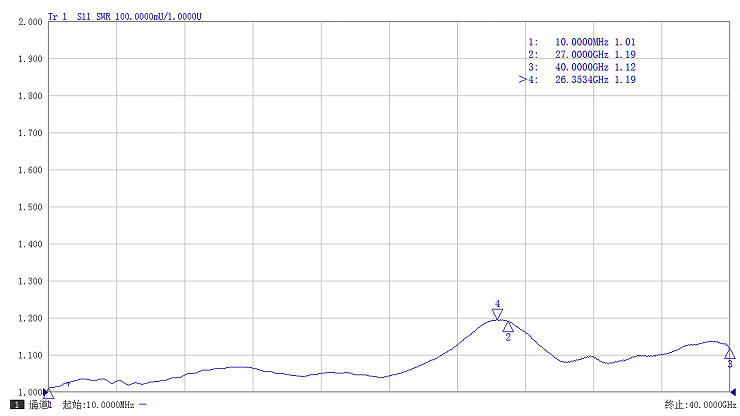

    VSWR

    40GHz≤1.35
    50GHz≤1.4

    Power rating20W
    Temperature range-55℃ to 125℃
