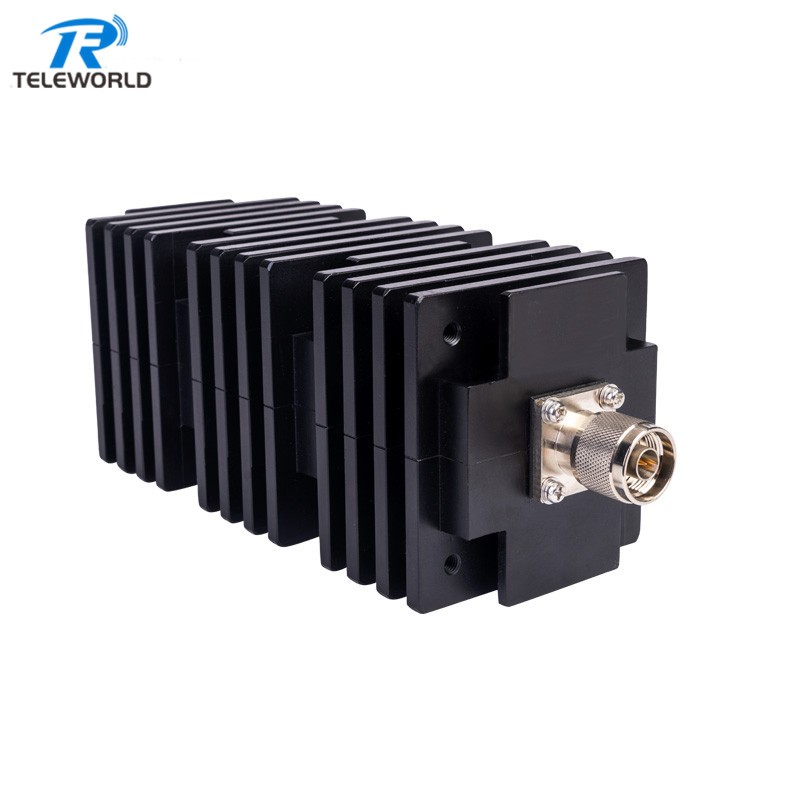

250W Coaxial Attenuator N male to female 18GHz 10dB 20dB 30dB 40dB 50dB 50ohm
TWAN-250-18GHz
Frequency 18GHz optional
Attention range from 1-50dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed Attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-18G, 250W N coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 18GHz |
| VSWR | 18GHz≤1.5 | POWER RATING | 250W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 10,20,30.40.50dB available, and 10-30dB -3.5/+5dB, 40.50dB.-3.5/+4.5dB | ||
