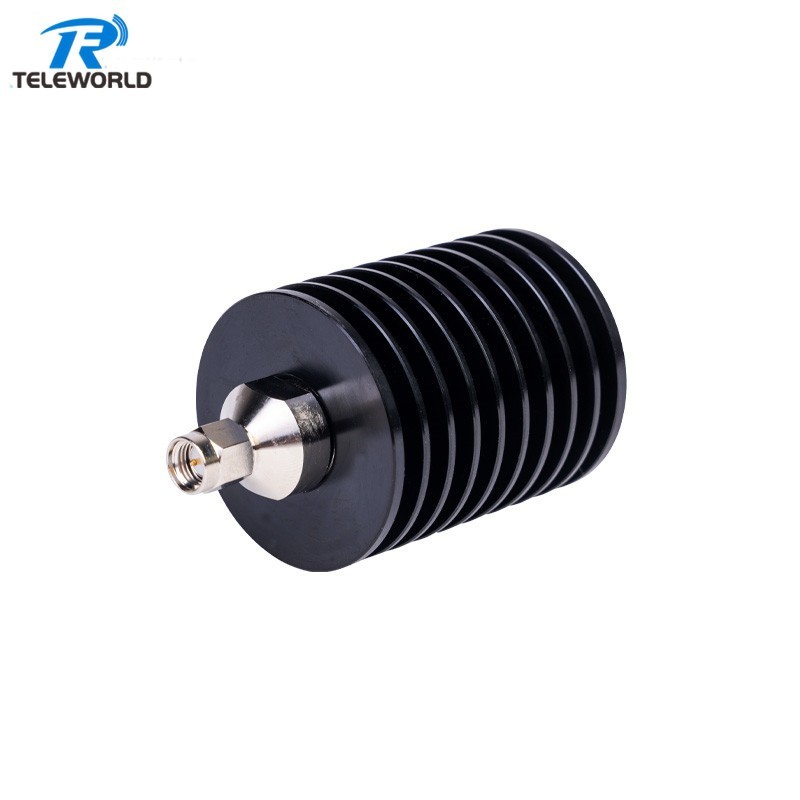

30W SMA Attenuator 3GHz 4GHz 5G 6GHz 8GHz 10GHz 12GHz 18GHz 1dB 2dB 3dB 4dB 5dB 6dB 7dB 8dB 9dB 10dB 15dB 20dB 30dB 40dB 50ohm
TWAS-30-6G
Frequency 0-6GHz,up to 26.5GHz optional
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-40dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-6G, 30W SMA coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 6GHz(up to 18GHz optioinal) |
| VSWR | 6GHz≤1.2 | POWER RATING | 30W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 1-9,10,15,20,30.40,50dB available, and 1-10dB.±0.8dB,15-30dB±1dB 40-50dB±1.5dB | ||
