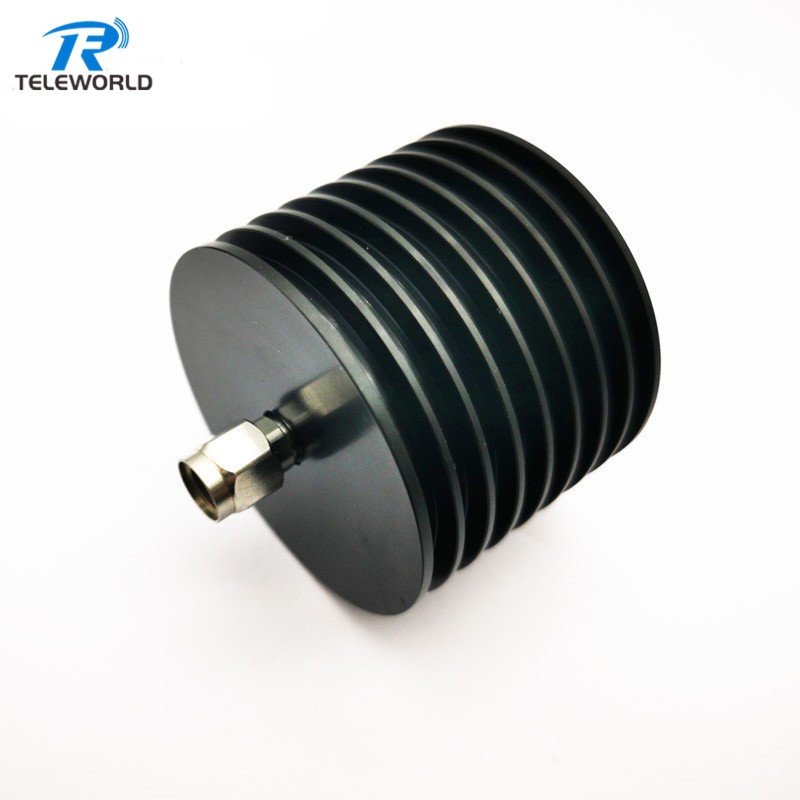

30W 2.92mm RF Termination Terminator Dummy Load 40GHz 50ohm
TWT2.92X-30-40G
Frequency DC-40GHz
SMA,N,BNC,4.3-10 connector optional
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.
| 30W 2.92mm RF Terminator, dummy load 40GHz 50ohm | |
| Norminal Impendance | 50ohm |
| Frequency range | DC-40GHz |

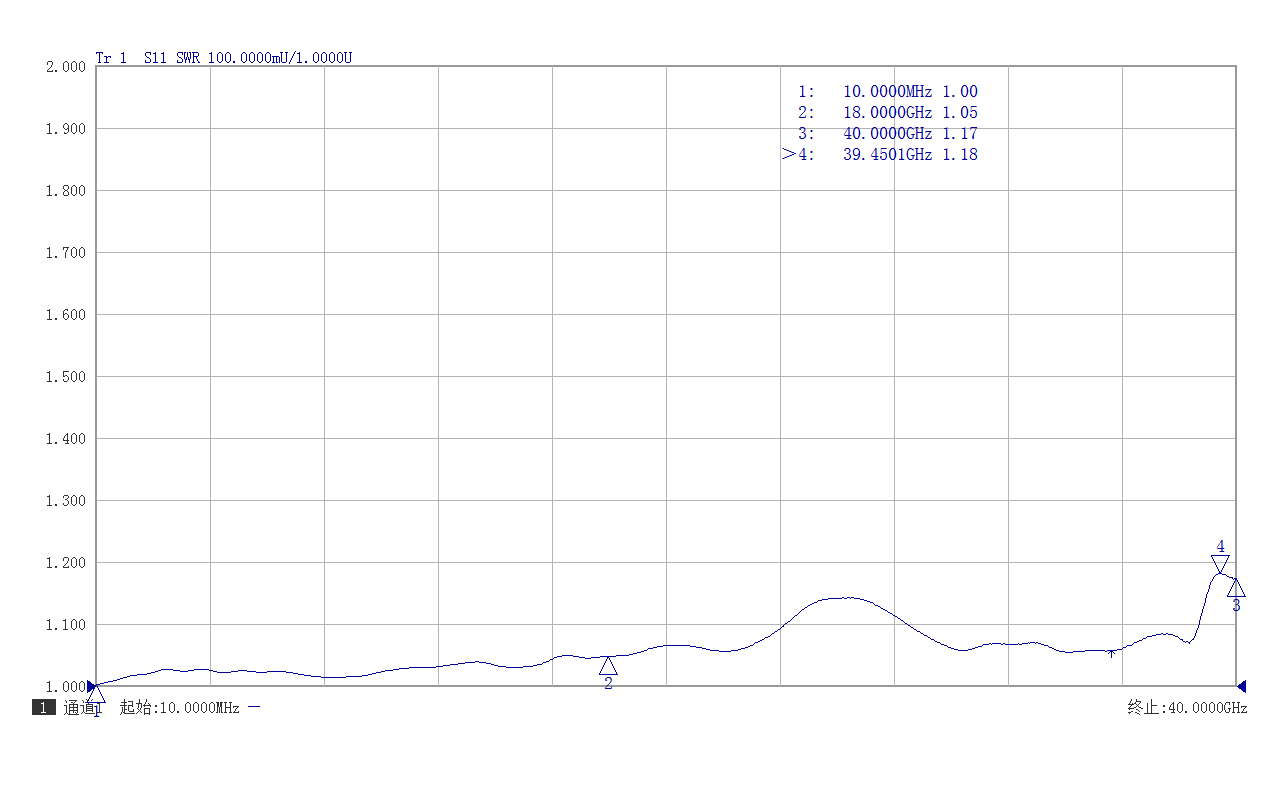

| VSWR | ≤1.3 |
| Power rating | 30W |
| Temperature range | -55℃ to 125℃ |
