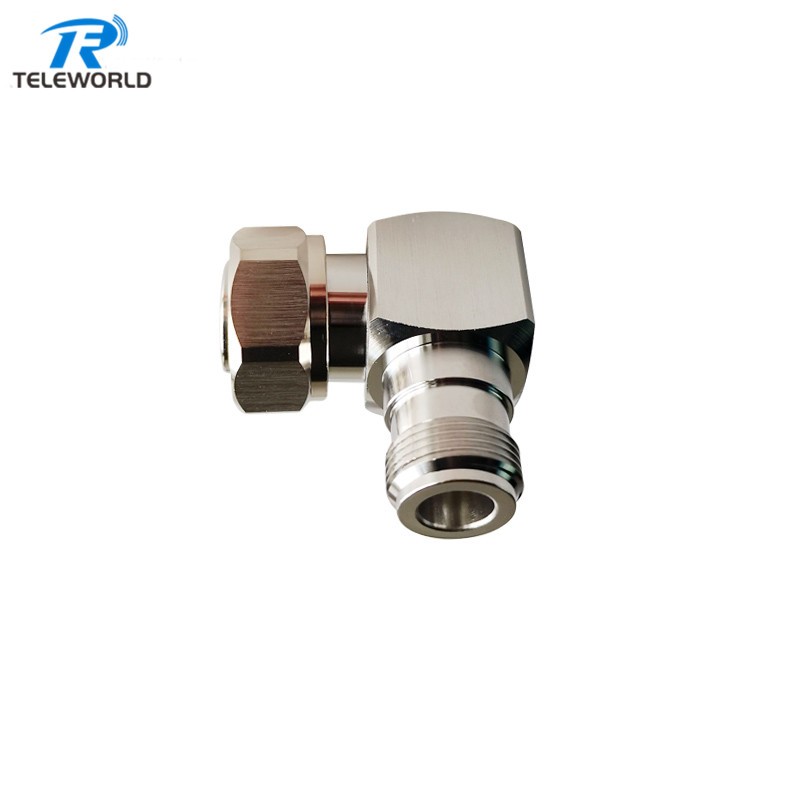

4.3-10 male to N female Right Angle RF Coaxial Adapter Low PIM -160dBc
Factory service, OEM and ODM support
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-6GHz |
| VSWR | 3G ≤1.15 |
| Dielectric withstanding voltage | ≥2500RMS,50Hz,at sea level |
| Dielectric Resistance | ≥5000MΩ |
| PIM3 | ≤-160dBc |
| Insertion Loss | ≤0.05 |
| Mechanical | |
| Durability | Mating cycles ≥500 |
| Environmental | |
| Temperature Range | -40℃~+85℃ |
| Rosh-compliance | Full ROHS compliance |
| Salt-fog test | 96h |
| Material and plating | ||
| Description | Material | Plating |
| Body | Brass | Tri-alloy |
| Insulator | PTFE | --- |
| Center conductor | Phosphor bronze | Ag |
| Other | Brass | Tri-alloy |
Following all avaliable:
4.3-10 DIN male to N female
4.3-10 DIN male to N male
4.3-10 DIN female to N male,
4.3-10 DIN female to N female,
4.3-10 DIN male to 7-16 DIN female,
4.3-10 DIN male to 7-16 DIN male,
4.3-10 DIN female to 7-16 DIN female,
4.3-10 DIN female to 7-16 DIN male,
4.3-10 DIN male to 4.3-10 female
