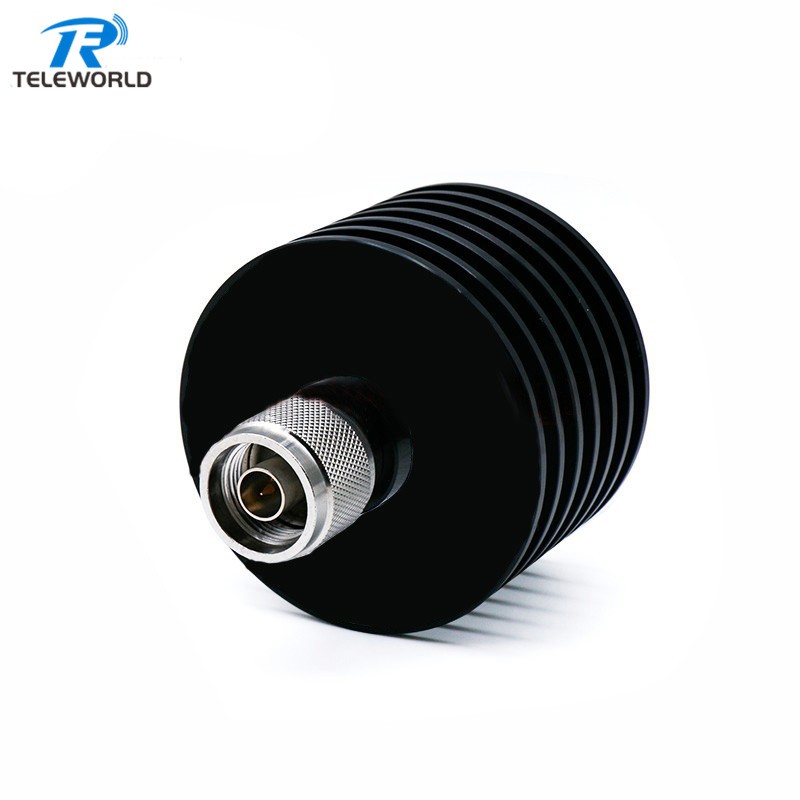

N Type 50W Coaxial Attenuator 10GHz 12GHz 18GHz 3dB 5dB 6dB 10dB 20dB 30dB 40dB 50dB 50ohm
TWAN-50-18G
Frequency 0-18GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-30dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination Load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed Attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-18G, 50W N coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 18GHz |
| VSWR | ≤1.35 | POWER RATING | 50W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | φ63*97 | ||
| Attenuation | 3,6,10,15,20,30.40.50dB available, and 1-10dB.±1dB,15-30dB±1.5dB | ||
