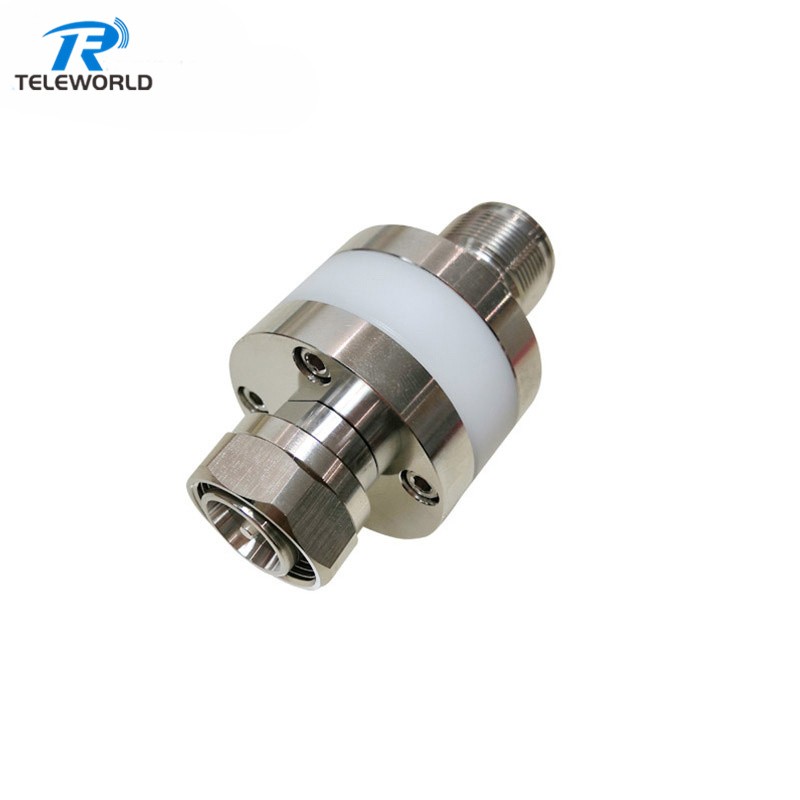

50V 100V 200V DC Block 30MHz-3GHz 6GHz N male to female 50Ohm
TWDN-100V-6G
Frequency 3/6GHz optional
Factory supply with fast delivery
Welcome to send inquiry
DC Blocks are coaxial components that prevent the flow of direct current (DC) while offering minimum interference to RF signals.
They have series capacitors on the input and output of the attenuator that allows RF signal to pass but block DC from passing through.
| DC-6GHz N 50V 100V 200V DC Block Technical Specifications | |
| Norminal Impendance | 50ohm |
| Frequency range | DC-3/6GHz optional |
| VSWR | 3GHz≤1.2 |
| Power rating | 2W |
| Temperature range | -45℃ to 85℃ |
| Maximum Voltage | 50V/100V/200V optional |
| Insertion Loss | 3-6GHz≤0.7dB |
