Home > Products >> Coaxial Connector&Adapter >> 7/16 DIN Series
Characteristic Impedance 50 ohm
Frequency Range DC-7.5GHz
VSWR ≤1.1(3000MHZ)
Dielectric Withstanding Voltage ≥4000V RMS,50Hz,at sea level
Dielectric Resistance ≥10000MΩ
Contact Resistance Center Contact ≤0.4mΩ
Outer Contact ≤1.5mΩ
Related Products

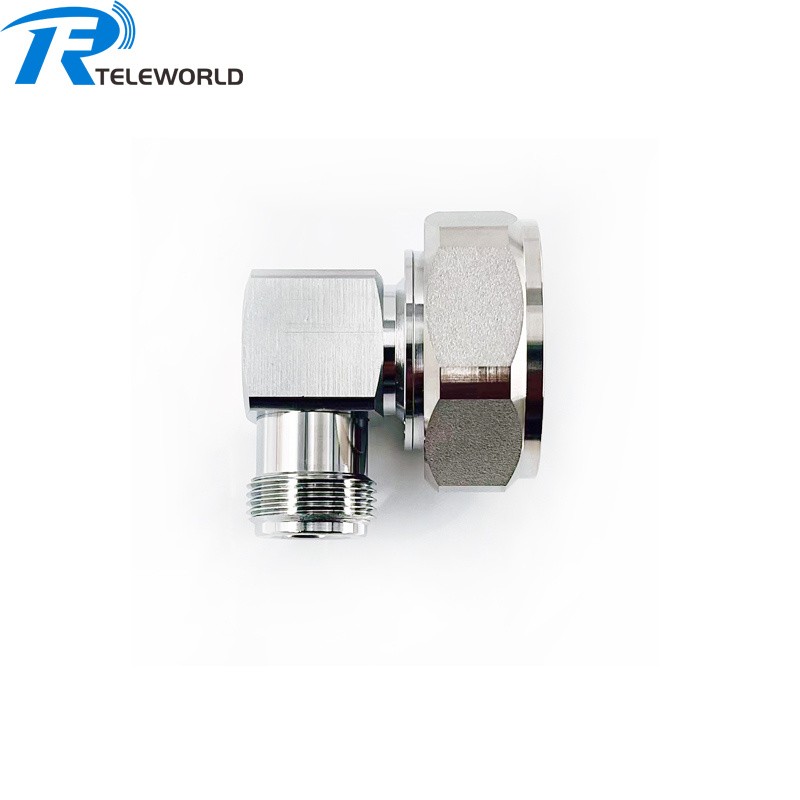

7/16 DIN male to N female RF Adaper Low PIM -160dBc

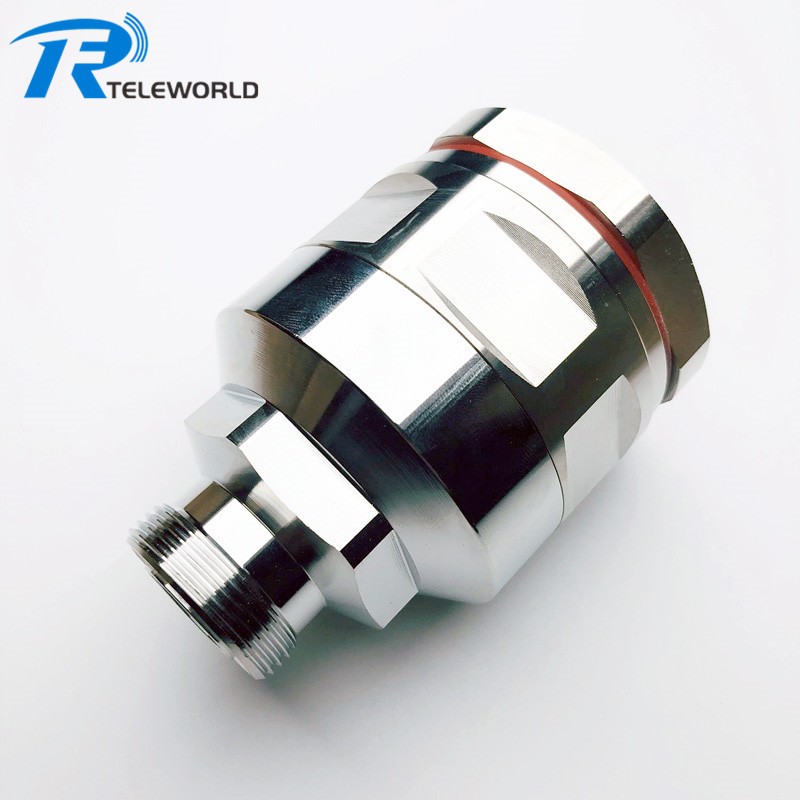

7/16 DIN Female Connector for 1-5/8 feeder Cable
