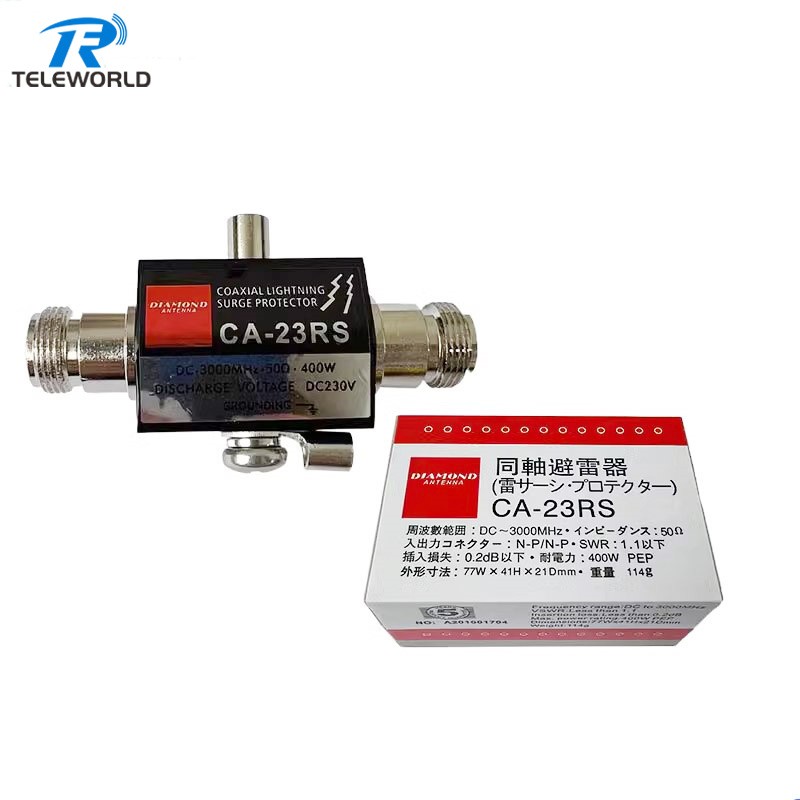

CA-23RS Coaxial anttenna Lightning protector Surge Arrester DC-3000Mhz N female to female
TWSCA-23RS
Frequency DC-3GHz
Factory supply with fast delivery
Welcome to send inquiry
Lighting strike by lightning means a calamity to the radio equipment.At the severalty microseconds twinkling of any eye,well up to the dozens of kilovltage per meter,whole system bear enormour.It is with lightning arrester(pass electricity of protecting device) must protecting nature,preventative enclosure fully.Correct exertion,guarantee system high-efficience operation
lightning arrester
| Type | CA-23RS |
| Connecter | N-F/N-F |
| Frequency Range | DC-3000MHz |
| VSWR | <1.15:1 |
| Insertion Loss | <0.2dB |
| Withstand Power | 400W PEP |
| Discharge Voltage | DC230V±15% |
| Plus Voltage(1×40)us | 1000V |
| Plus Voltage(1×40)us | 6KA |
| Resistance at 100V | >10000MΩ |
| Dimensions | 78×41×20mm |
| Weight | 110g |
