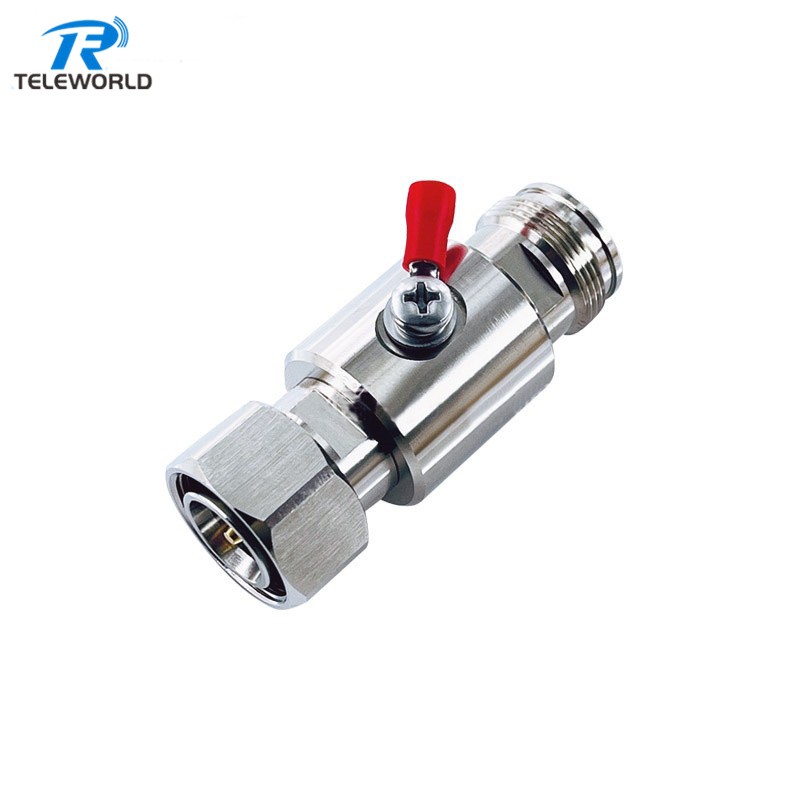

MC-6BP Discharge Lightning protector Surge Arrester DC 6GHz N male to female
MC-6BP
Frequency 6GHz BR>
Factory supply with fast delivery
Welcome to send inquiry
Lighting strike by lightning means a calamity to the radio equipment.At the severalty microseconds twinkling of any eye,well up to the dozens of kilovltage per meter,whole system bear enormour.It is with lightning arrester(pass electricity of protecting device) must protecting nature,preventative enclosure fully.Correct exertion,guarantee system high-efficience operation
lightning arrester
| Electrical | ||||
| Characteristic Impedance | 50 ohm | |||
| Frequency Range | DC-6GHz | |||
| VSWR | ≤1.3 | |||
| Insertion Loss | ≤0.3dB | |||
| Transmission power | 200W | |||
| Dielectric Withstanding Voltage | ≥2500V RMS,50hz,at sea level | |||
| Working Voltage | ≤1000V RMS,50Hz,at sea level | |||
| Residual voltage | ≤30V | |||
| Rated DC voltage | 230V | |||
| Maximum impluse discharge current | 10kA | |||
| Ground wire diameter | ≤4 mm2 | |||
| Response time | <0.5V | |||
| Dielectric Resistance | ≥5000MΩ | |||
| Contact Resistance | Center Contact | ≤2.5mΩ | ||
| Outer Contact | ≤5mΩ | |||
| Environmental & Mechanical | ||||
| Temperature Range | -40℃ ~ +85℃ | |||
| Relative humidity | ≤95%（Temperature 25℃±2℃） | |||
| Waterproof Rate | IP 67 | |||
| Durability | ≥500 cycles | |||
| ROHS compliant | Full ROHS compliance | |||
| Material and Plating | ||||
| Material | Plating | |||
| Body | Brass | Ni | ||
| Connector | Brass | Ni | ||
| Insulator | PTFE | — | ||
| Center conductor | Brass | Au | ||
| Connection sleeve | Brass | Ni | ||
| Circlip | Stainless steel | — | ||
| Screw nut | Stainless steel | — | ||
| Spring pad | Stainless steel | — | ||
| Washer | Stainless steel | — | ||
| Gasket | Silicone rubber | — | ||
| Adjustment screw | Brass | Ni | ||
| Package | ||||
| Weight | Net Weight | 125.0g / pcs | ||
| Gross Weight | 152.0g / pcs | |||
