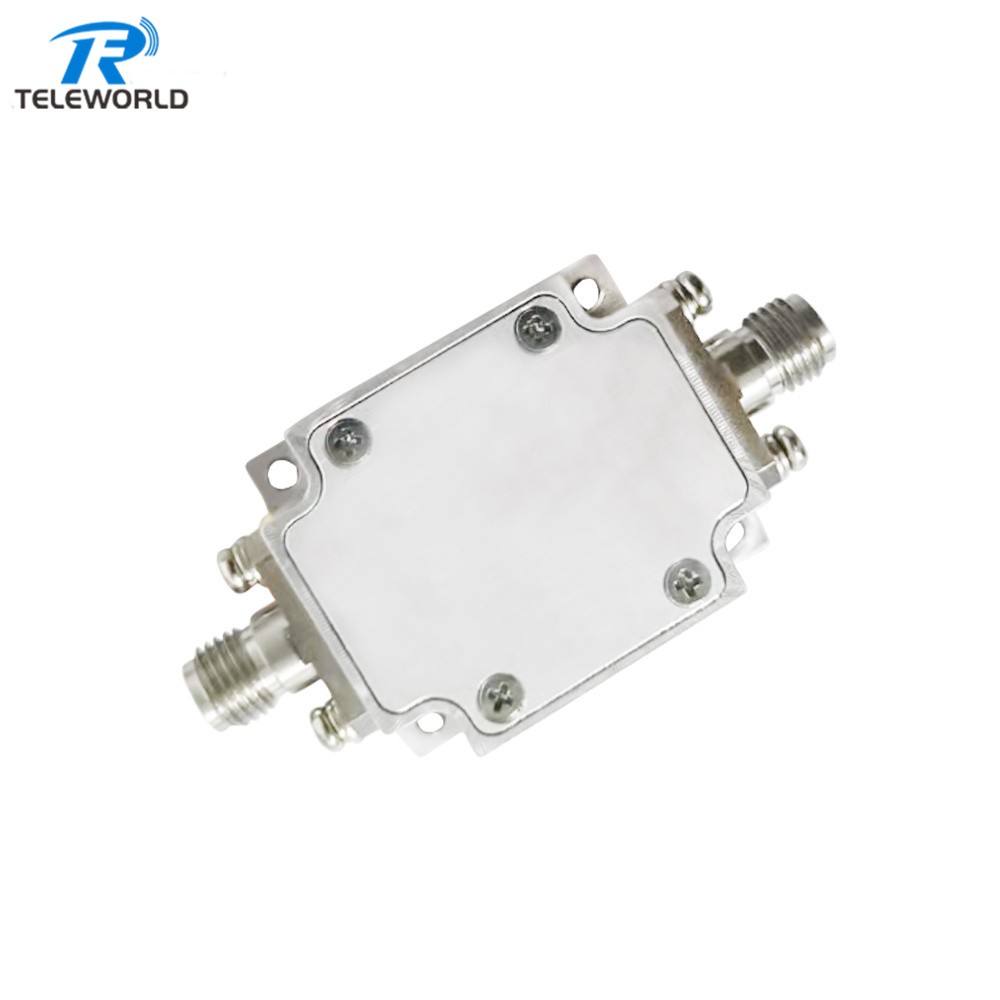

Low-Noise Amplifiers (LNAs) are a specialized type of electronic amplifier primarily used in communication systems. They receive signals from antennas, amplify them, and make them suitable for processing by subsequent electronic equipment. Our LNAs cover the frequency ranges of 1-18 GHz and 18-40 GHz. The noise figure remains stable and does not vary with temperature.
SPECIFICATIONS
1 Operating Frequency Range 1–18GHz
2 Signal Gain ≥26 dB
3 Noise Figure ≤ 2.5dB
4 Output Power ≥+14 dBm
5 VSWR ≤ 2.5
6 Impedance 50 Ω
7 Interface Type :SMA-50K
8 Operating Power Supply +12V/≤180mA
9 Operating Current ≤ 100mA
10 Operating Temperature -40°C to +70°C
11 Storage Temperature -55°C to +85°C
