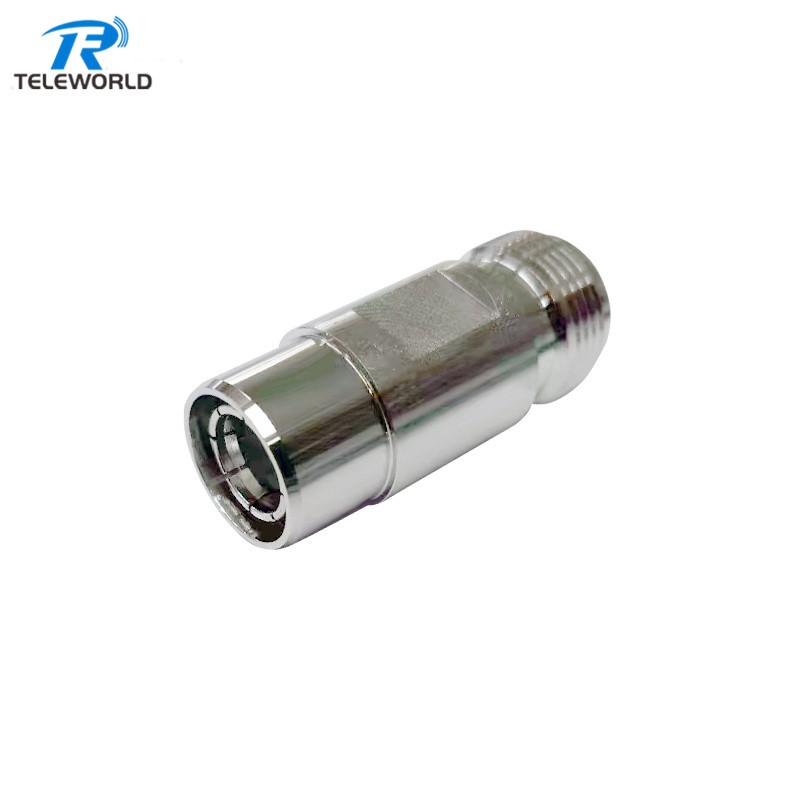

N Series Adapter 18GHz
N male to N female
N male to N male
N female to N Female
N female to N female Flange
Electrical performance:
Characteristic impedance: 50 Ohm
Frequency: DC-18GHz
Insulation resistance: ≥5000MΩ
Dielectric withstand voltage: 2500Vrms
VSWR:1.15
Insertion loss:≤0.1√f(GHz)dB
Mechanical performance
Engagement and separation force: ≤0.23Nm
Linking torque: 0.69Nm~1.15Nm
Link structure resistance torque: 1.69Nm
Durability:500times
Holding force: ≥450N
Material:
Outer conductor-Stainless steel
Inner conductor-brass
Insulator-PEI
