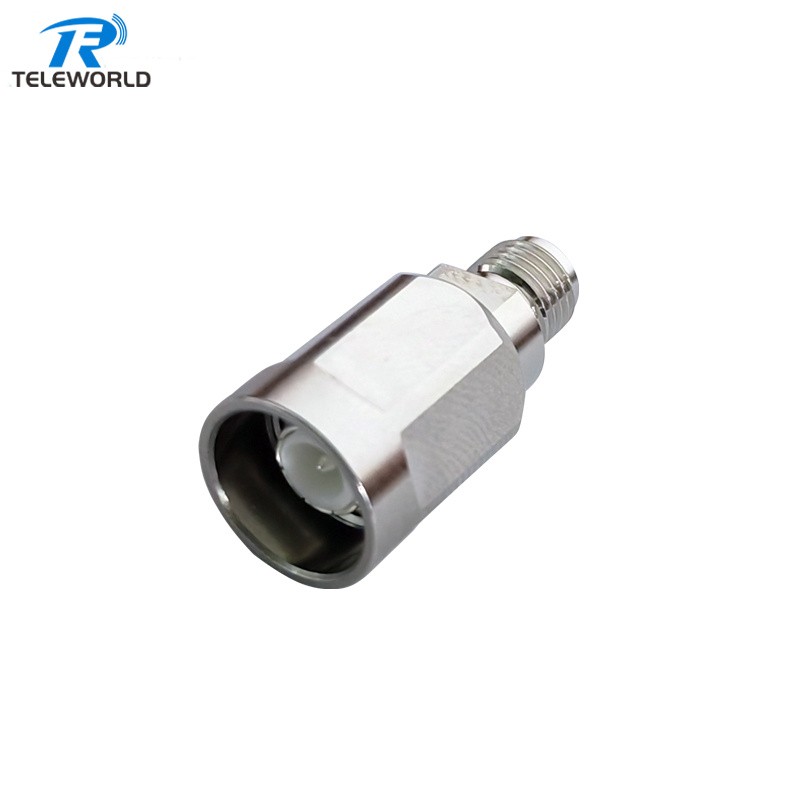

NEX10 Male to SMA Female RF Adapter 10GHz
Factory supply with fast delivery
Welcome to send inquiry
NEX10 Series all available，For more details pls contact us
NEX10 M/F to SMA M/F
NEX10 M/F to N M/F
NEX10 M/F to 3.5mm M/F
NEX10 M/F to 4.3-10 M/F
NEX10 M/F to 7/16 DIN M/F
Material & Finishing:
1. Center conductor:beryllium-copper, Silver Plating
2. Insulators: PTFE
3. Body : Brass, Ternary alloy Plating
4. Outer Conductor:beryllium-copper, Silver Plating
5. Other: Brass, Ternary alloy Plating
6. Gasket : Silicone Rubber
Electrical Data:
1. Impedance: 50 Ohms
2. Frequency: 0~10 GHz
3. Insulation resistance: ≥5000MΩ
4. VSWR: 10G≤1.3
