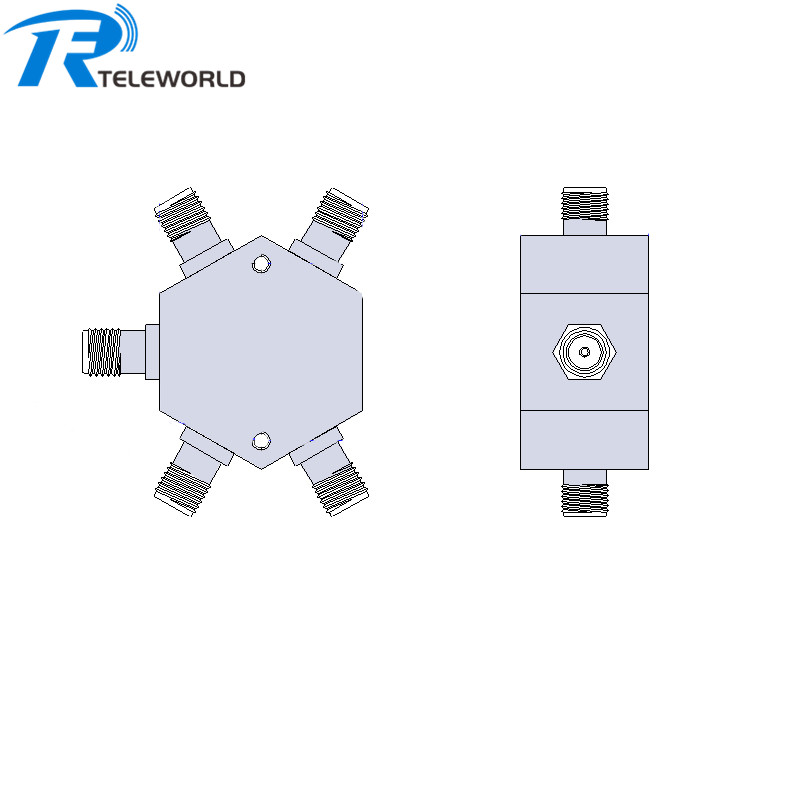

N type 2W 4 way Resistive Power Divider Splitter DC-6GHz 50ohm
Frequency DC-6GHz
Factory supply with fast delivery
Welcome to send inquiry
Factory service,Customized support
2Way/3way/4way/6way/8way/12way/16way/32way/64way optional
Wide frequency optional and up to 50GHz
Series connector optional SMA/N/BNC/2.92mm/2.4mm
A power divider divides an incoming signal into two (or more) output signals. In the ideal case, a power divider can be considered loss-less, but in practice there is always some power dissipation. Because it is a reciprocal network, a power combiner can also be used as a power combiner, where two (or more) ports are used to combine input signals into a single output.Theoretically, a power divider and a power combiner can be the exact same component, but in practice there may be different requirements for combiners and dividers, such as power handling, phase matching, port match and isolation.
| SN | Parameters | Specifications |
| 1 | Frequency Range | DC-6GHz |
| 2 | Insertion Loss | ≤ 13dB |
| 3 | Input Port VSWR | Typ.1.16 / Max.1.5 |
| 4 | Output Port VSWR | Typ.1.15 / Max.1.5 |
| 5 | Isolation | Min.12dB |
| 6 | Amplitude Balance | ± 0.8dB |
| 7 | Phase Balance | ±12° |
| 8 | Impedance | 50 Ohms |
| 9 | Input/Output Connectors | N-Female |
| 10 | Power Rating | 2W |
| 11 | Operation Temperature | -45℃ ~ +85℃ |
