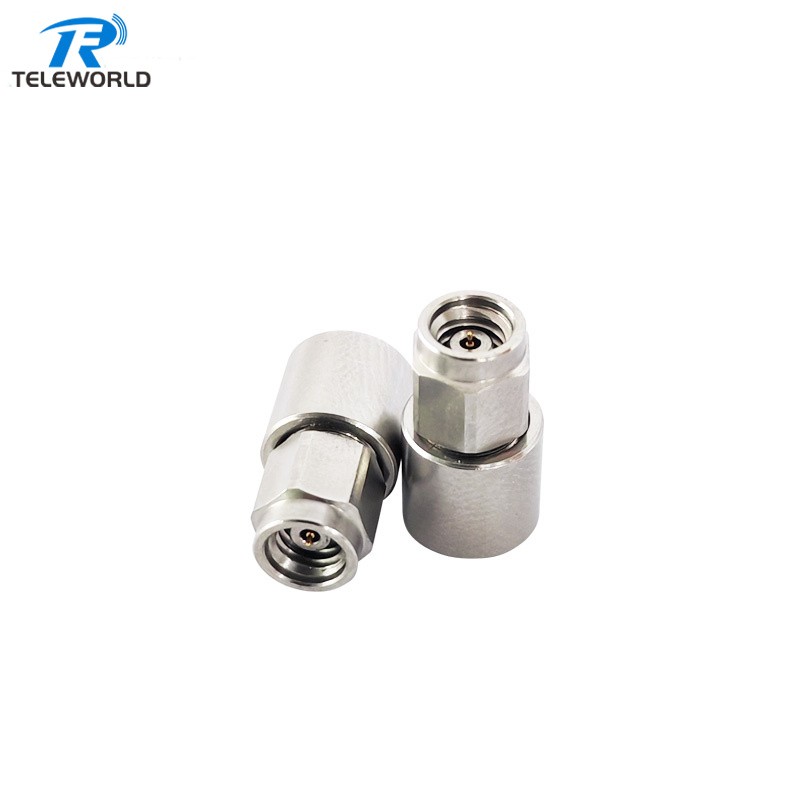

1W 1.0mm RF Termination Terminator Dummy load 110GHz 50ohm
TWT1.0X-1-110G
Frequency 110GHz
1.0mm male.female connector optional
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service onCoaxial Attenuator,RF Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Dummy Load is a device used to simulate an electrical load during testing. In an RF System aDummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.
| 1.0mm RF Termination load 110GHz 50ohm | |
| Norminal impendance | 50ohm |
| Frequency range | DC-110GHz |

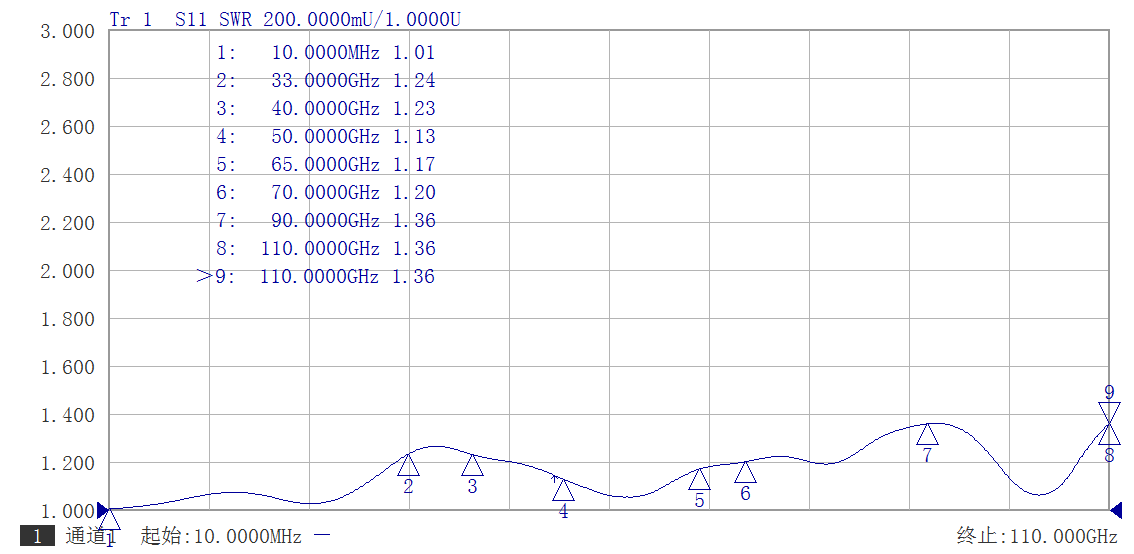

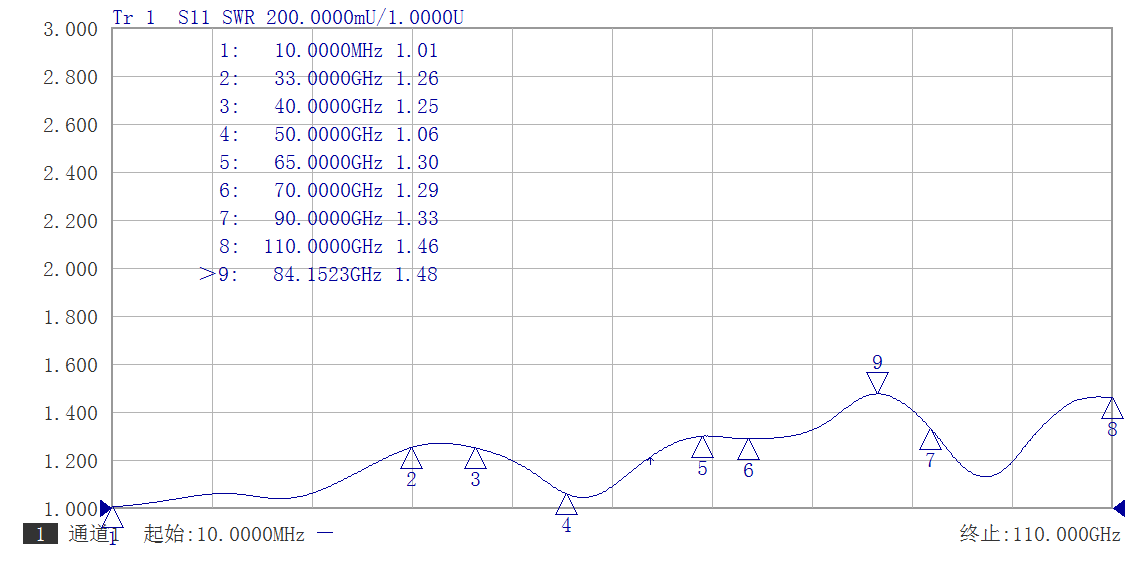

| VSWR | ≤1.4 |
| Connector | Male/Female all available |
| Power rating | 1W |
| Temperature range | -55℃ to 125℃ |
