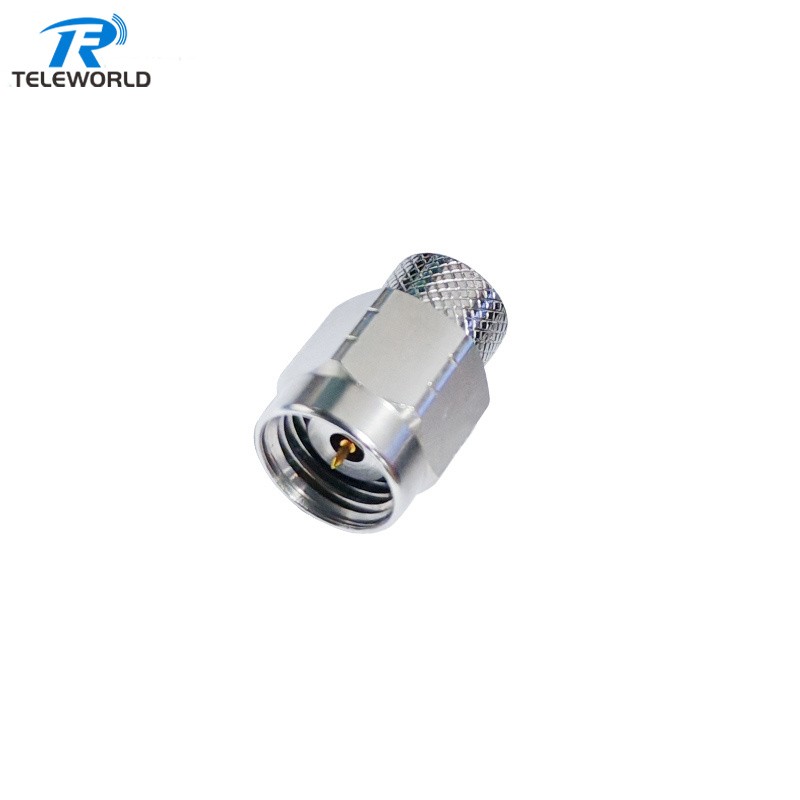

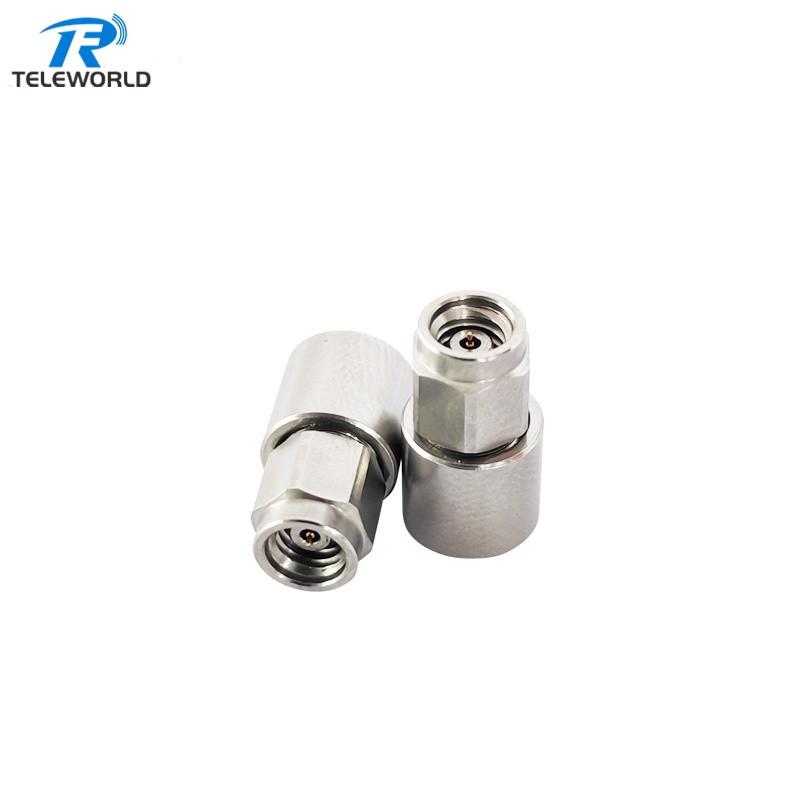

2W SMP male RF Termination Dummy load 50ohm 6GHz 18GHz 40GHz
TWTSMPM-2-6G
Frequency 6GHz
SMP male or female optional
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price

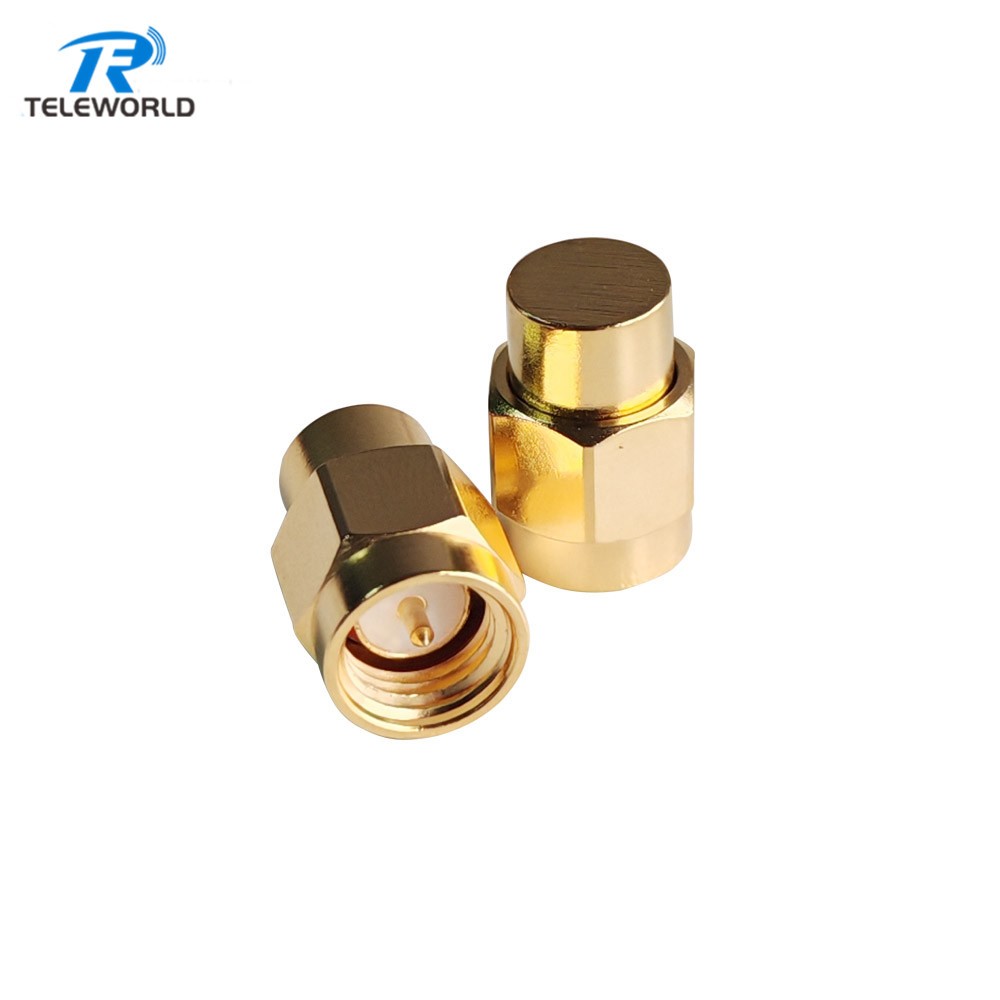

As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.
| 2W SMP RF Termination Load 50ohm | |
| Norminal Impendance | 50ohm |
| Frequency range | DC-6/18/40GHz |
| VSWR | 6GHz≤1.2 |
| Power rating | 2W |
| Temperature range | -55℃ to 125℃ |
