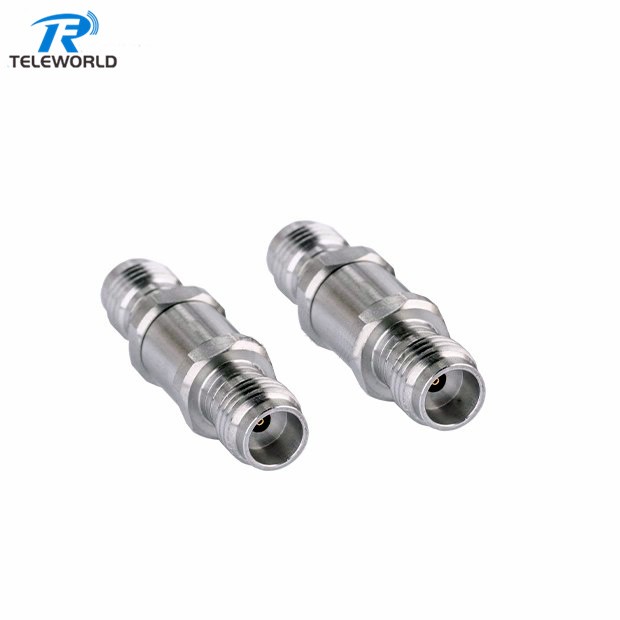

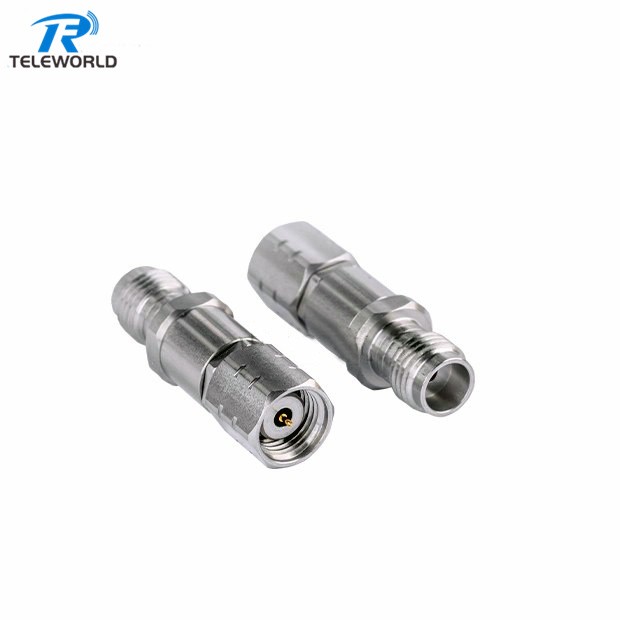

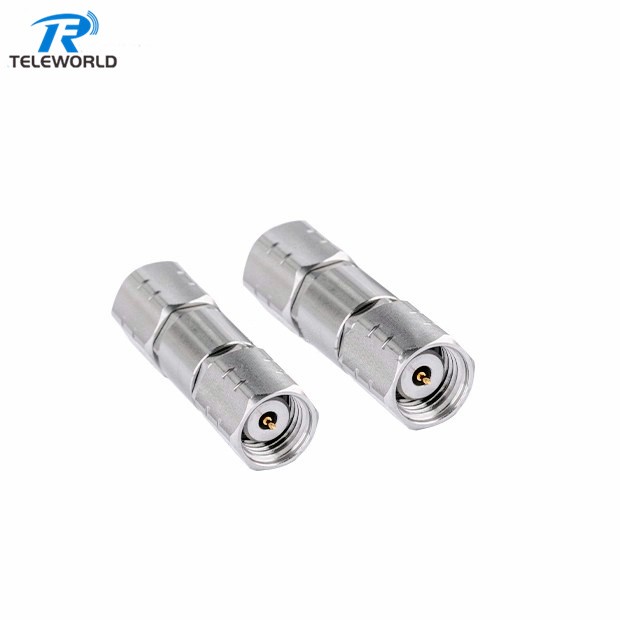

1.85mm Millimeter RF Adaper 67GHz 50ohm
1.85mm series adapter
Frequency up to 67GHz
Factory supply with fast delivery
Welcome to send inquiry
Specifications: Material / Finish
Impedance= 50 ohms Housing: Stainless steel passivation
Frequency= DC - 67GHz Center Contact: Beryllium Copper Gold plated
Durability ＞ 500 cycles Insulators: PEI and PTF
VSWR：≤1.25
Contact resistance:
Center conductor ≤4mΩ,outer conductor ≤2.5mΩ
Insertion loss ≤0.08√f(GHz)dB
Dielectric withstand voltage：500V
