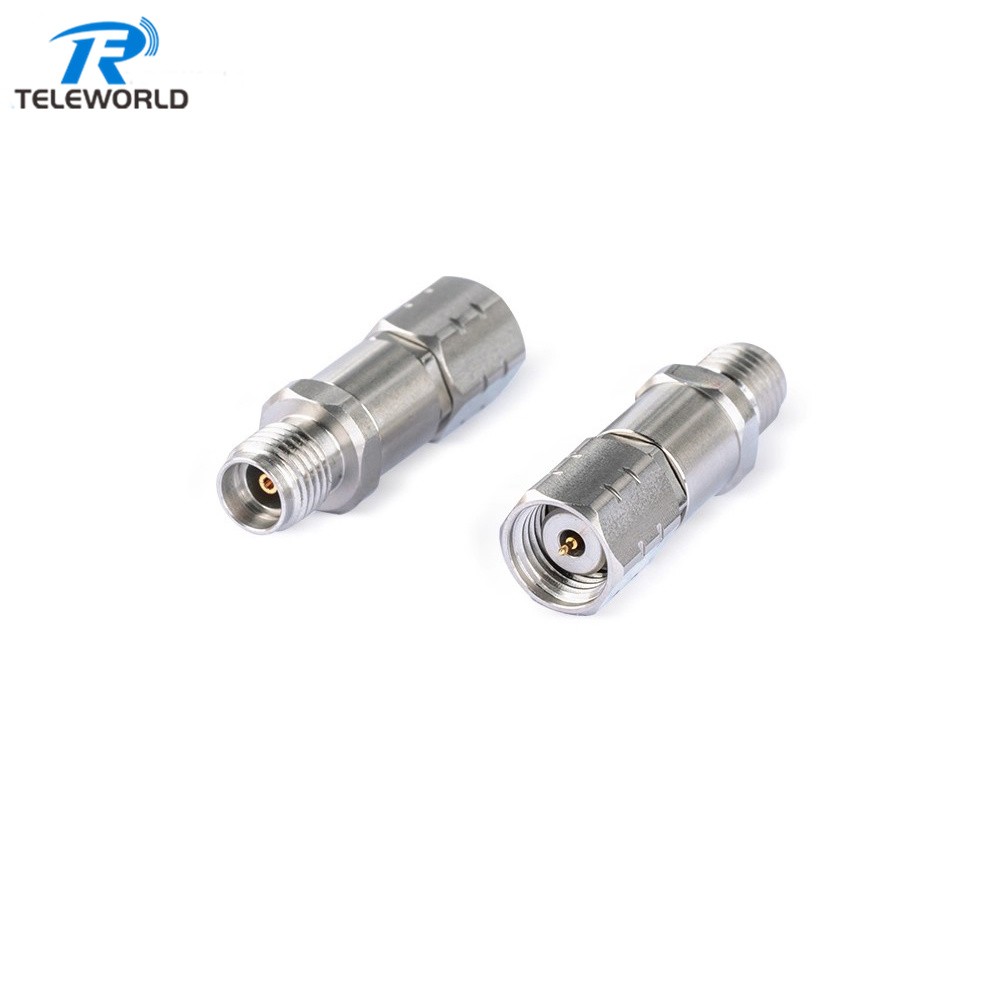

1.85mm to 3.5mm Millimeter-wave Adapter 26.5GHz 50ohm

1.85mm male to 3.5mm female

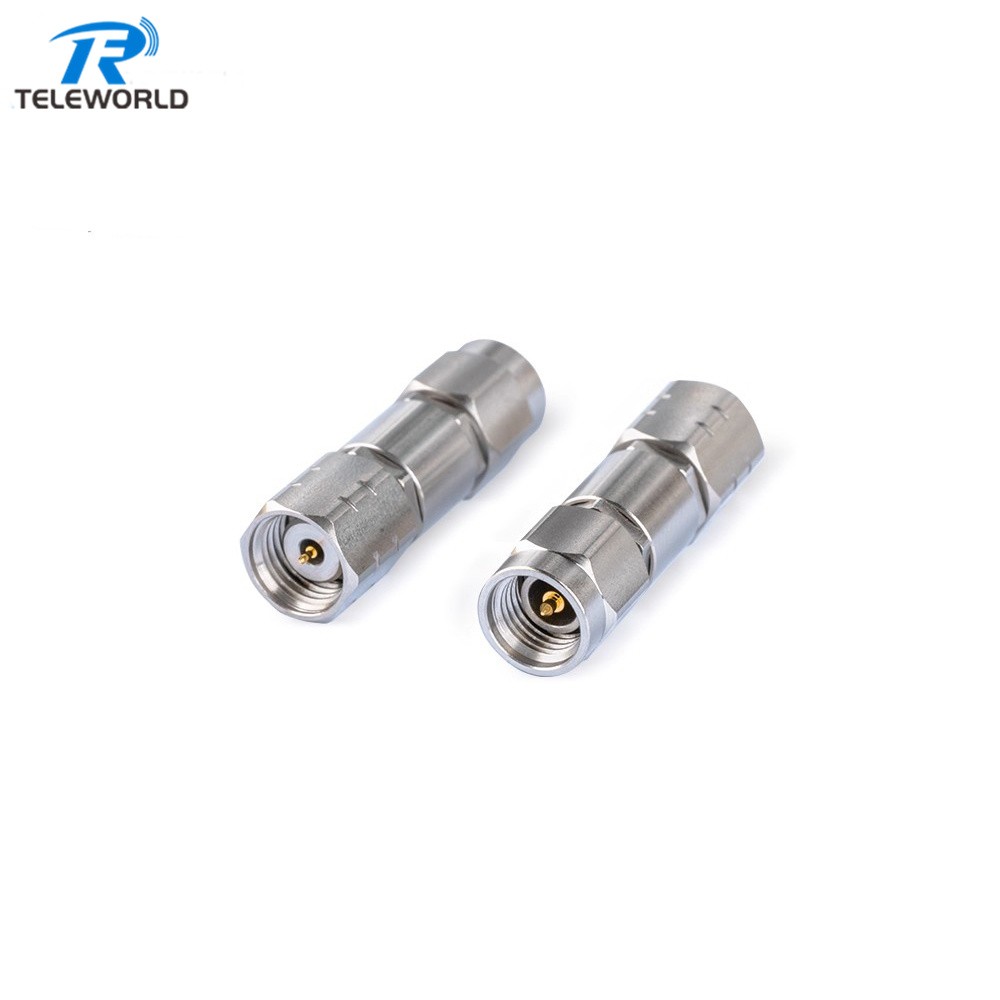

1.85mm male to 3.5mm male

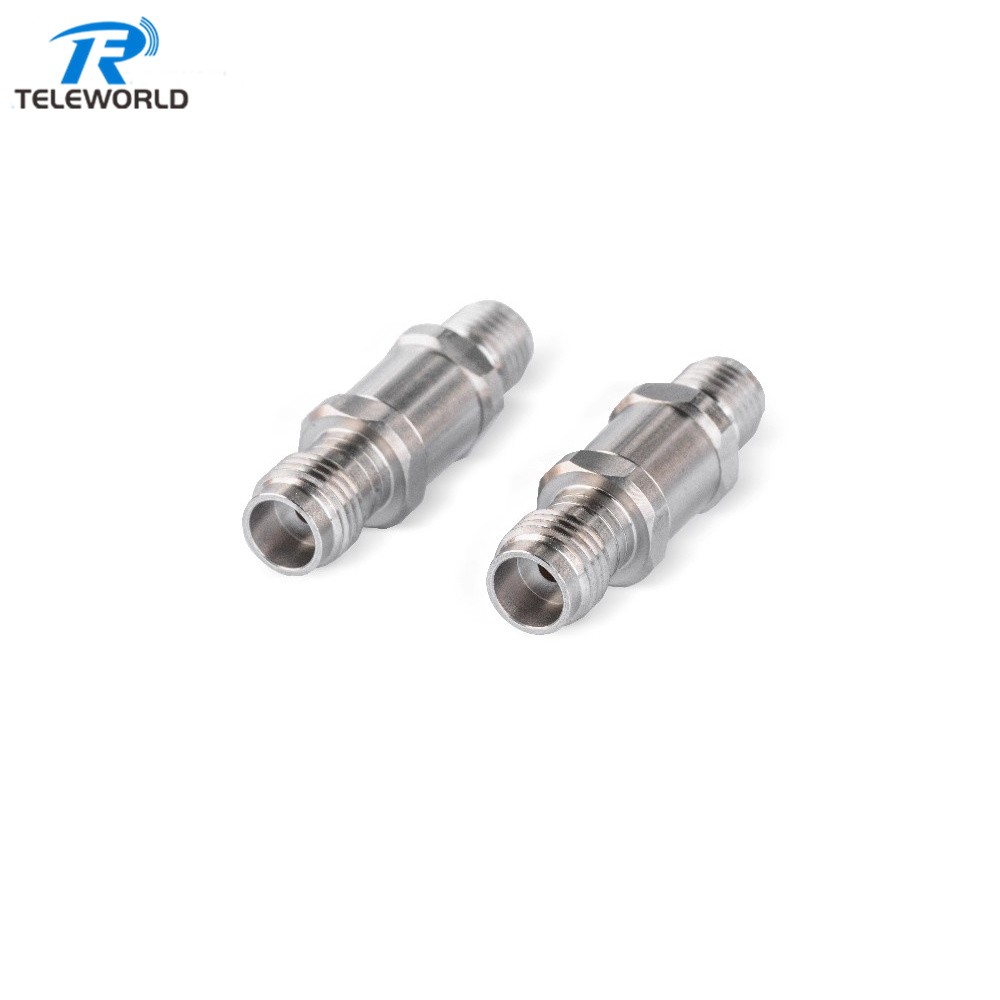

1.85mm female to 3.5mm female
1.85mm female to 3.5mm male

3.5mm Precision coaxial connector for microwave applications.the maximum frequency is 26.5GHz.

•Design in accordance with: IEEE Std 287 TM -2007

Standard materials and finish

•Center conductor:beryllium copper，gold plated

•Insulator:PEI

•Outer conductor:Stainless steel,Passivated

Electrical Characteristics

•Characteristic Impedance:50Ω

•Frequency range:DC-26.5GHz

•VSWR:1.2:1 max

•Insulation resistance: 5000MΩmin

•Test voltage:500V

Mechanical

•Coupling torque:1.69N• max

•Mating cycles: 500cycles min

Environmental

•Temperature range: -55℃～+155℃
