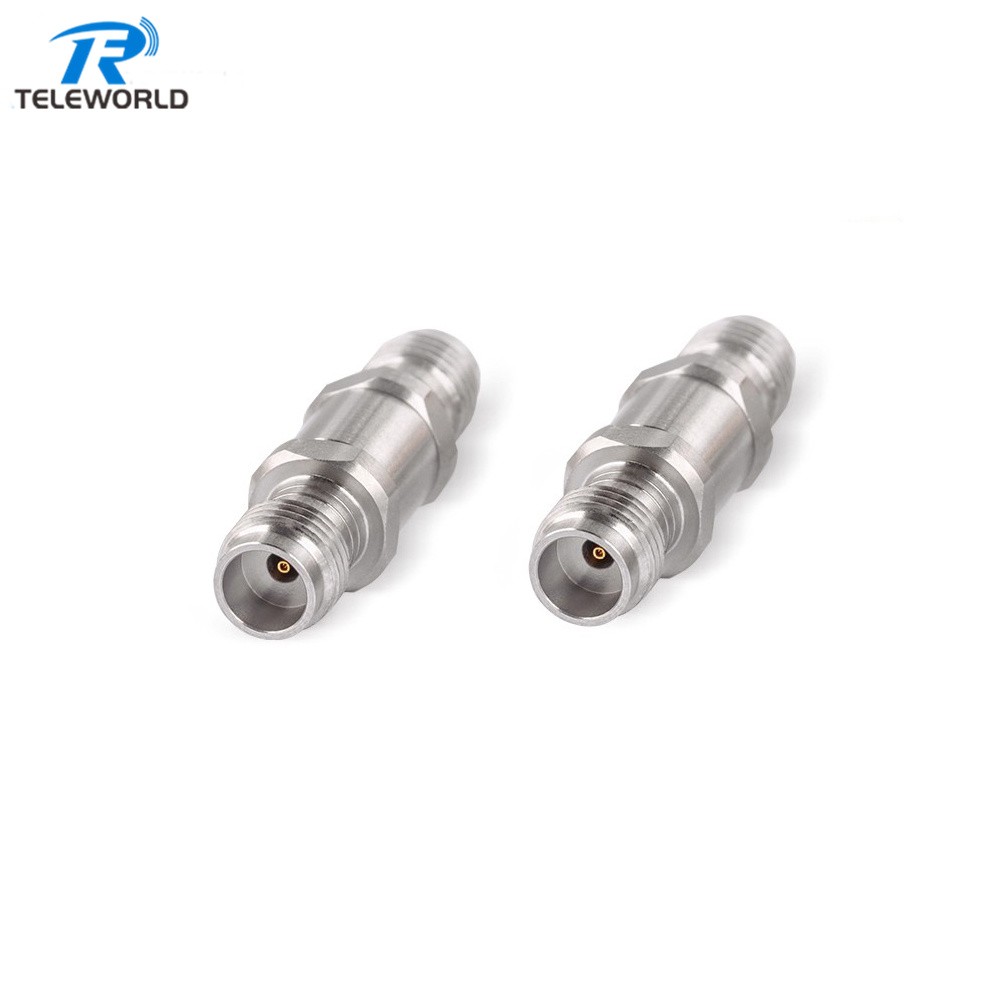

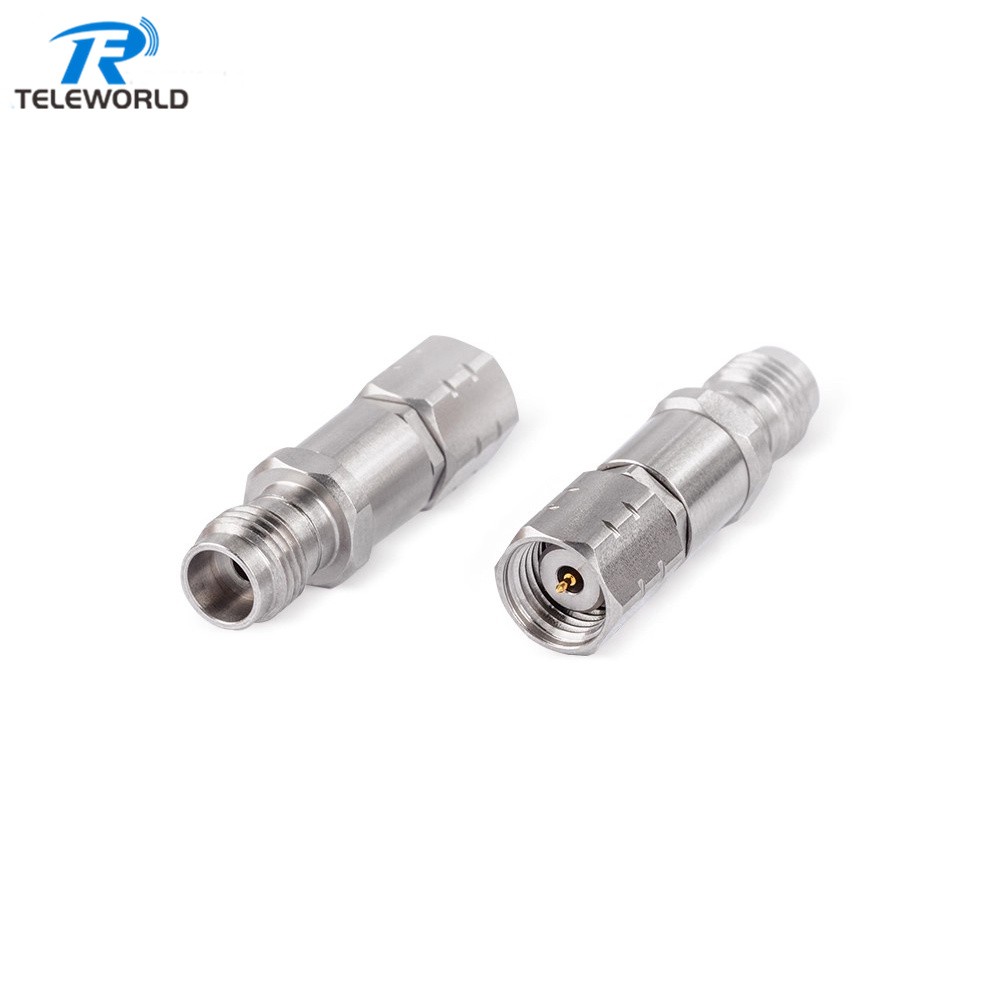

1.85mm to 2.4mm Millimeter-wave Adapter RF Adapter 50GHz 50ohm
1.85mm to 2.4mm series adapter
Frequency up to 50GHz
Factory supply with fast delivery
Welcome to send inquiry
1.85mm male to 2.4mm female
1.85mm male to 2.4mm male
1.85mm female to 2.4mm female
1.85mm female to 2.4mm male
2.4mm Precision coaxial connector for microwave applications.the maximum frequency is 50GHz.
•Design in accordance with: IEEE Std 287 TM -2007
Standard materials and finish
•Center conductor:beryllium copper，gold plated
•Insulator:PEI
•Outer conductor:Stainless steel,Passivated
Electrical Characteristics
•Characteristic Impedance:50Ω
•Frequency range:DC-50GHz
•VSWR:1.25:1 max
•Insulation resistance: 5000MΩmin
•Test voltage:500V
Mechanical
•Coupling torque:1.69N• max
•Mating cycles: 500cycles min
Environmental
•Temperature range: -55℃～+155℃
