  • 2.4mm to 2.92mm RF Adapter 40GHz 50ohm

    • 2.4mm to 2.92mm RF Adapter 40GHz 50ohm

    2.4/2.92mm Adapter
    Frequency up to 40/50/67GHz
    Factory supply with fast delivery
    Welcome to send inquiry

    Inquire Now
    • Product Description

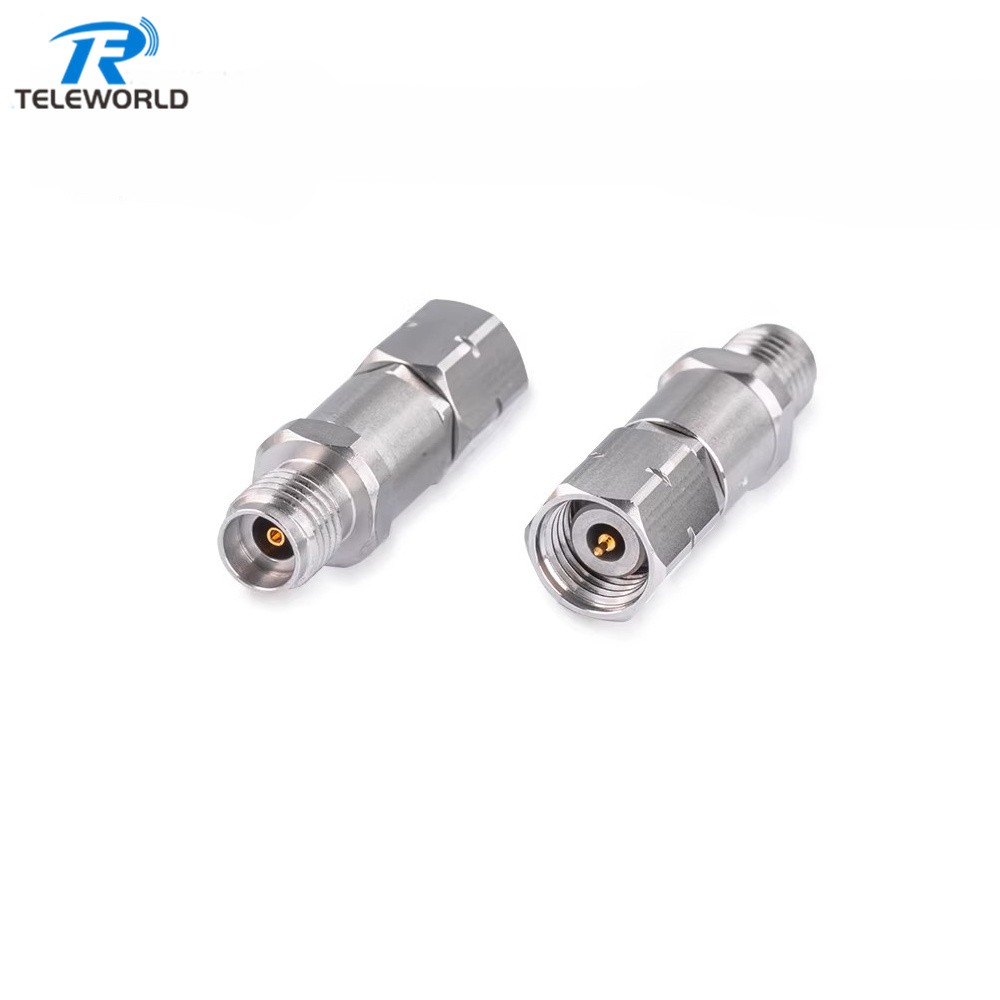

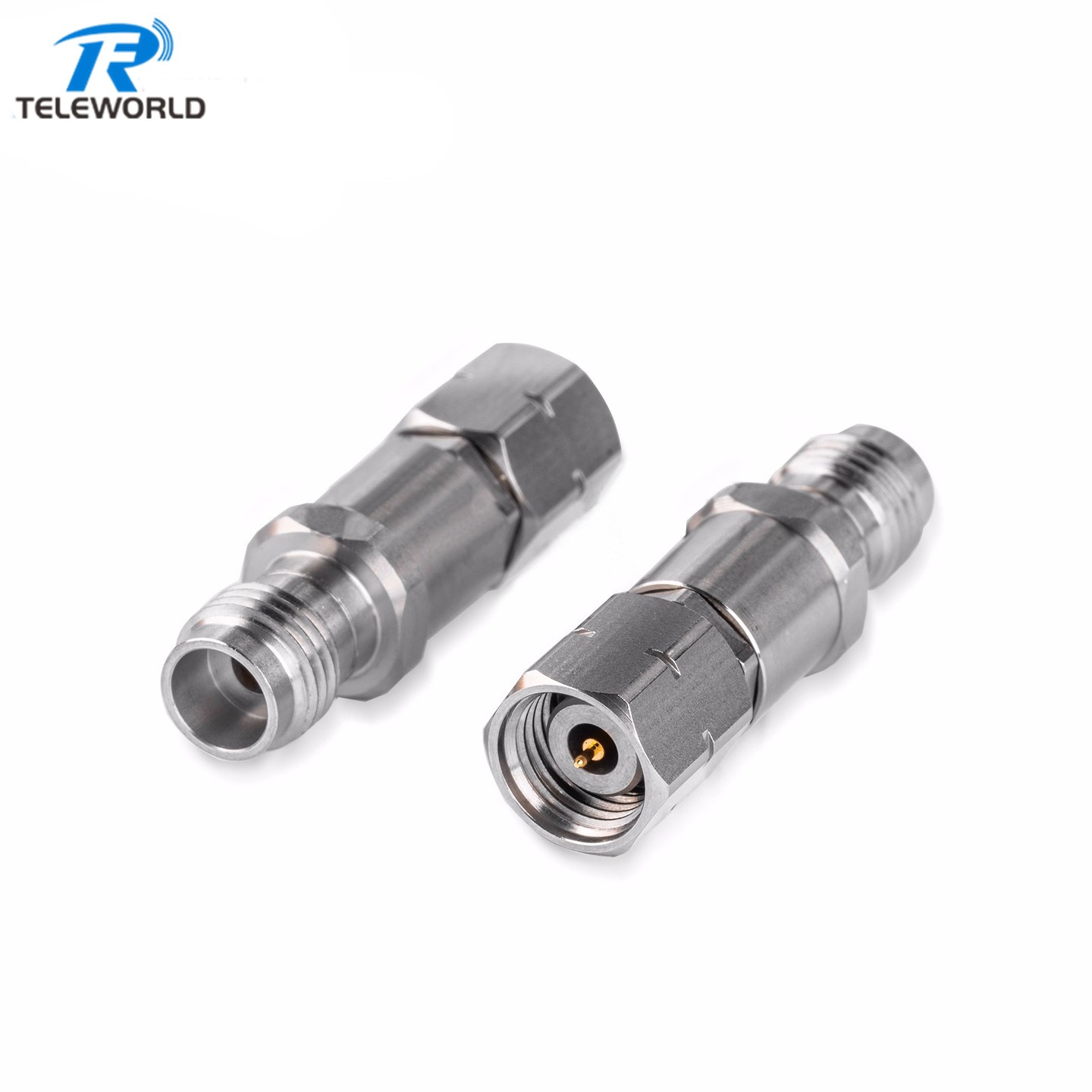

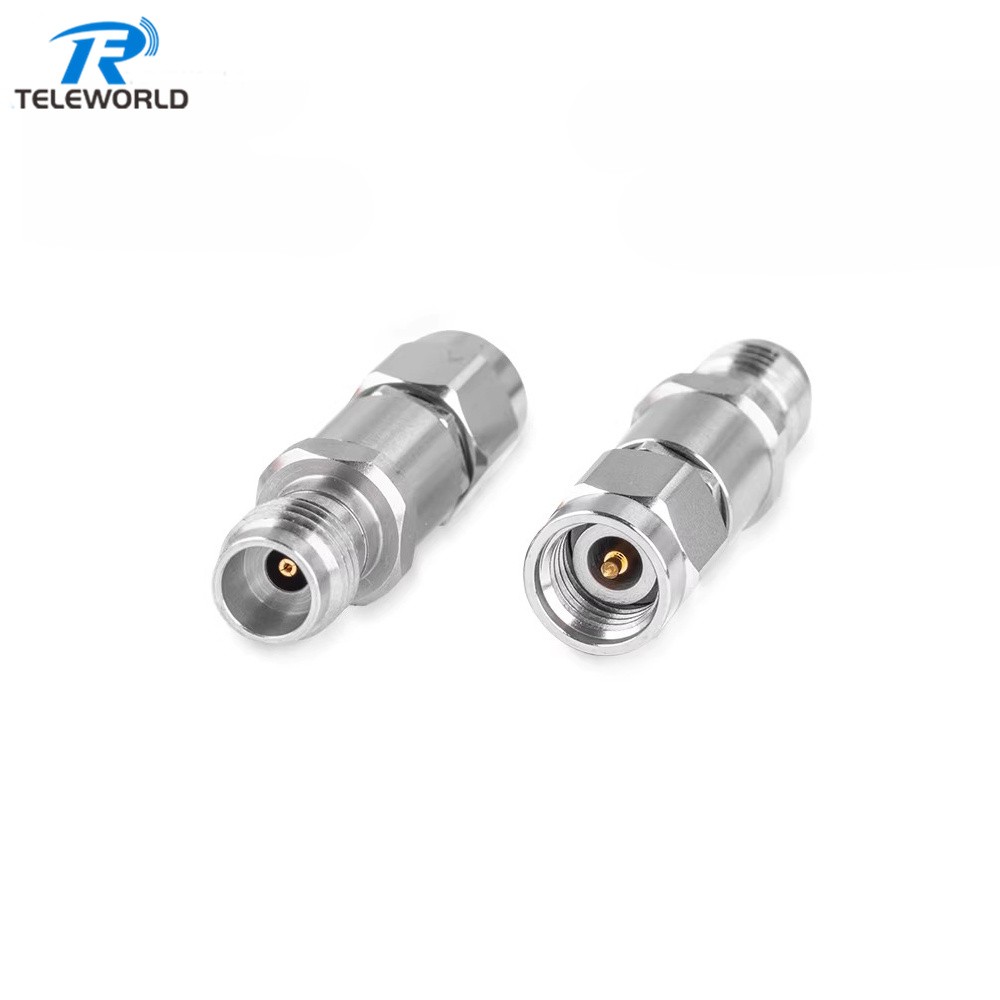

    2.92mm male to 2.4mm female

    2.92mm male to 2.4mm male

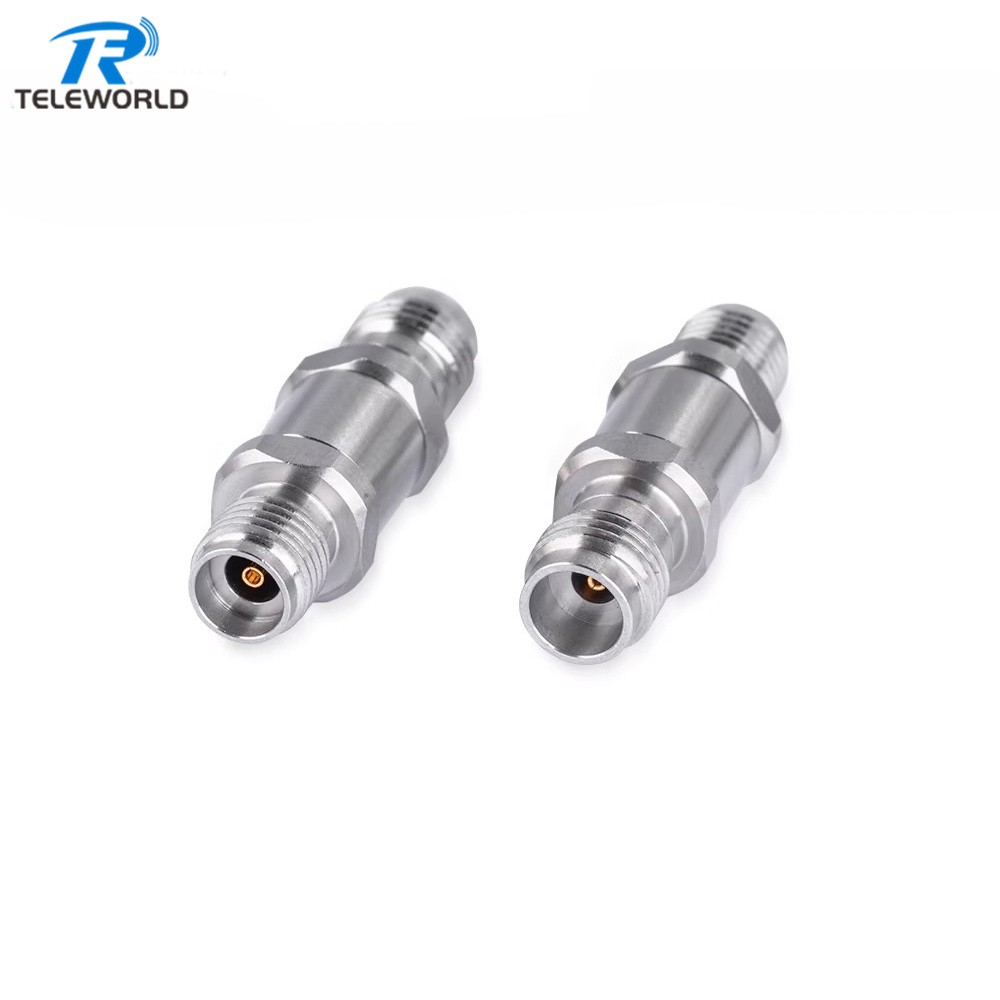

    2.92mm female to 2.4mm female
    2.92mm female to 2.4mm male

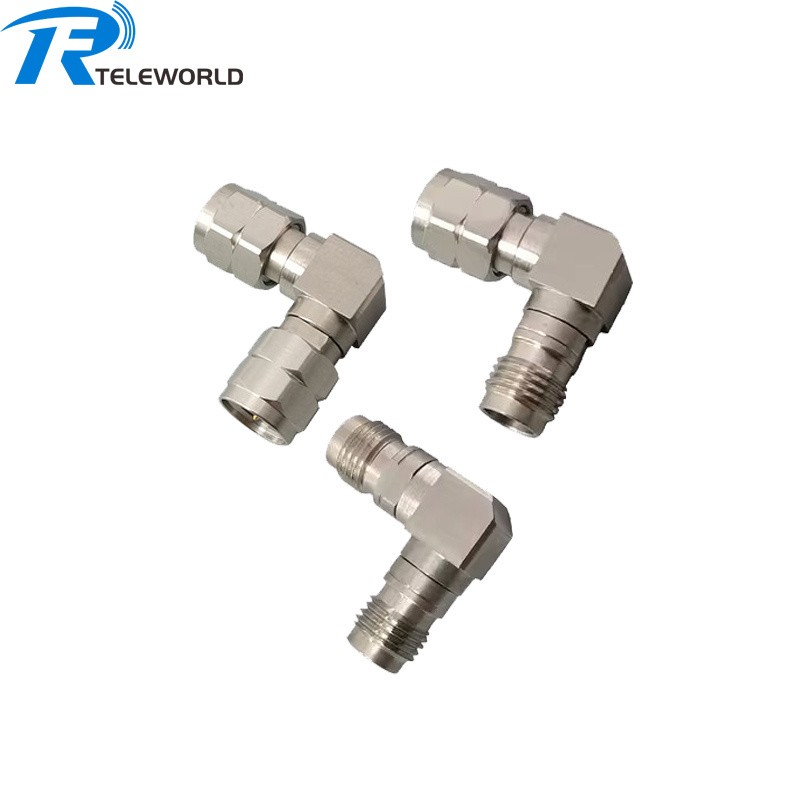

    2.92mm male to 2.4mm female right angle

    2.92mm male to 2.4mm male right angle

    2.92mm female to 2.4mm female right angle
    2.92mm female to 2.4mm male right angle

    Adapter 2.92mm

    2.92mm Precision coaxial connector for microwave applications.the maximum frequency is

    40GHz.

    •Design in accordance with: IEEE Std 287 TM -2007

    Standard materials and finish

    •Center conductor:beryllium copper，gold plated

    •Insulator:PEI

    •Outer conductor:Stainless steel,Passivated

    Electrical Characteristics

    •Characteristic Impedance:50Ω

    •Frequency range:DC-40GHz

    •VSWR:1.2:1 max

    •Insulation resistance: 5000MΩmin

    •Test voltage:1000V

    Mechanical

    •Coupling torque:1.69N• max

    •Mating cycles: 500cycles min

    Environmental

    •Temperature range: -60℃～+165℃
