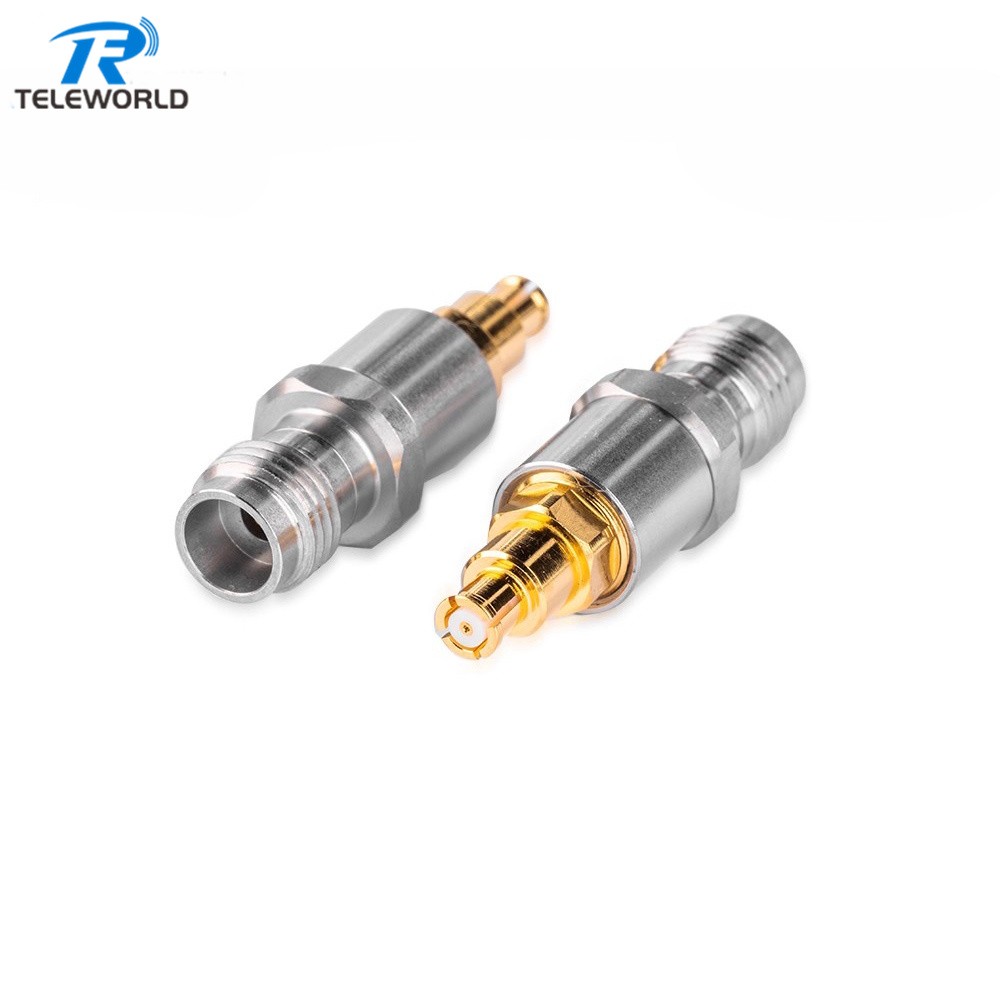

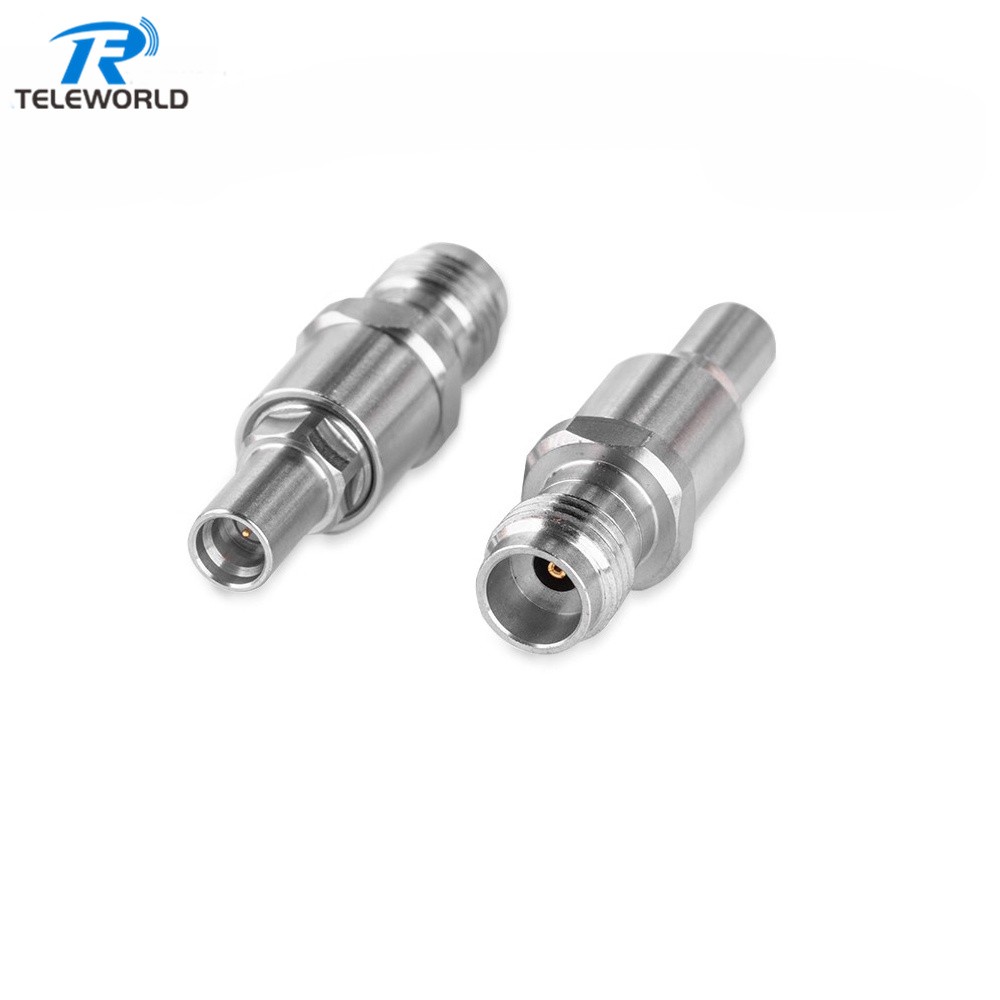

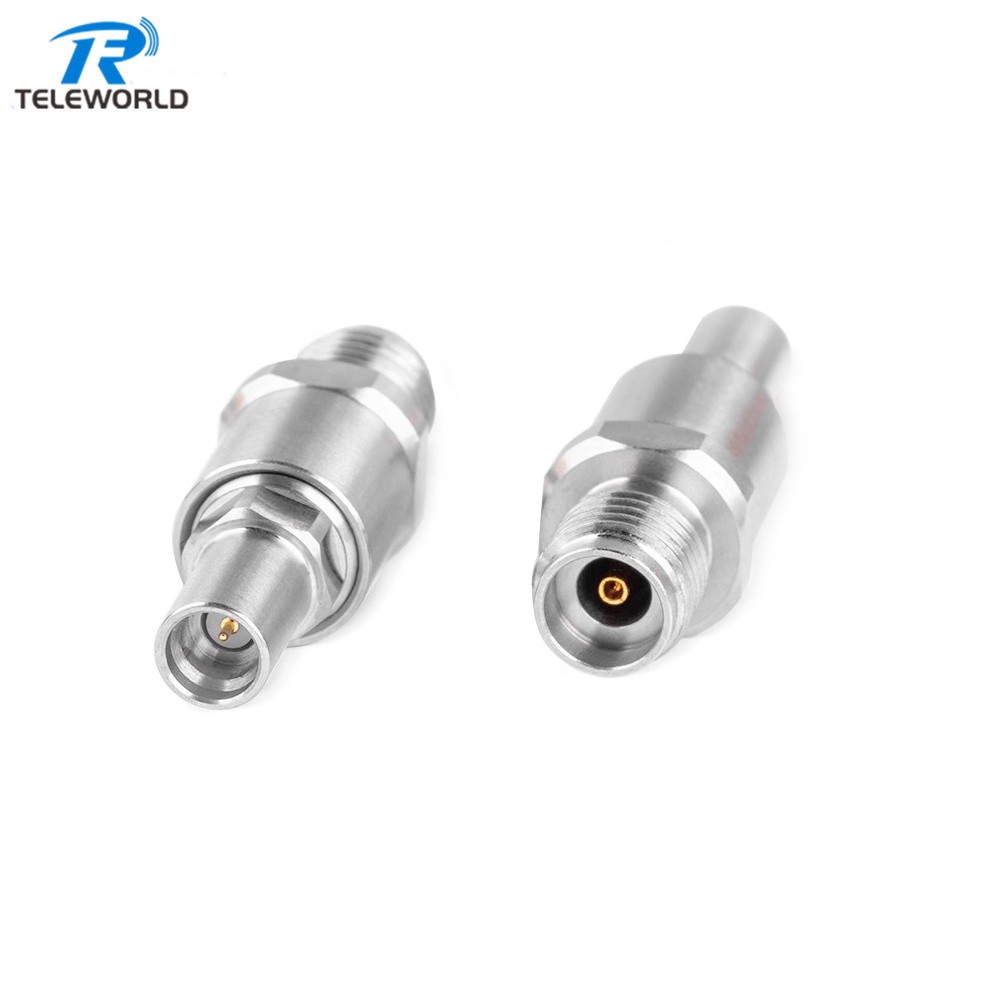

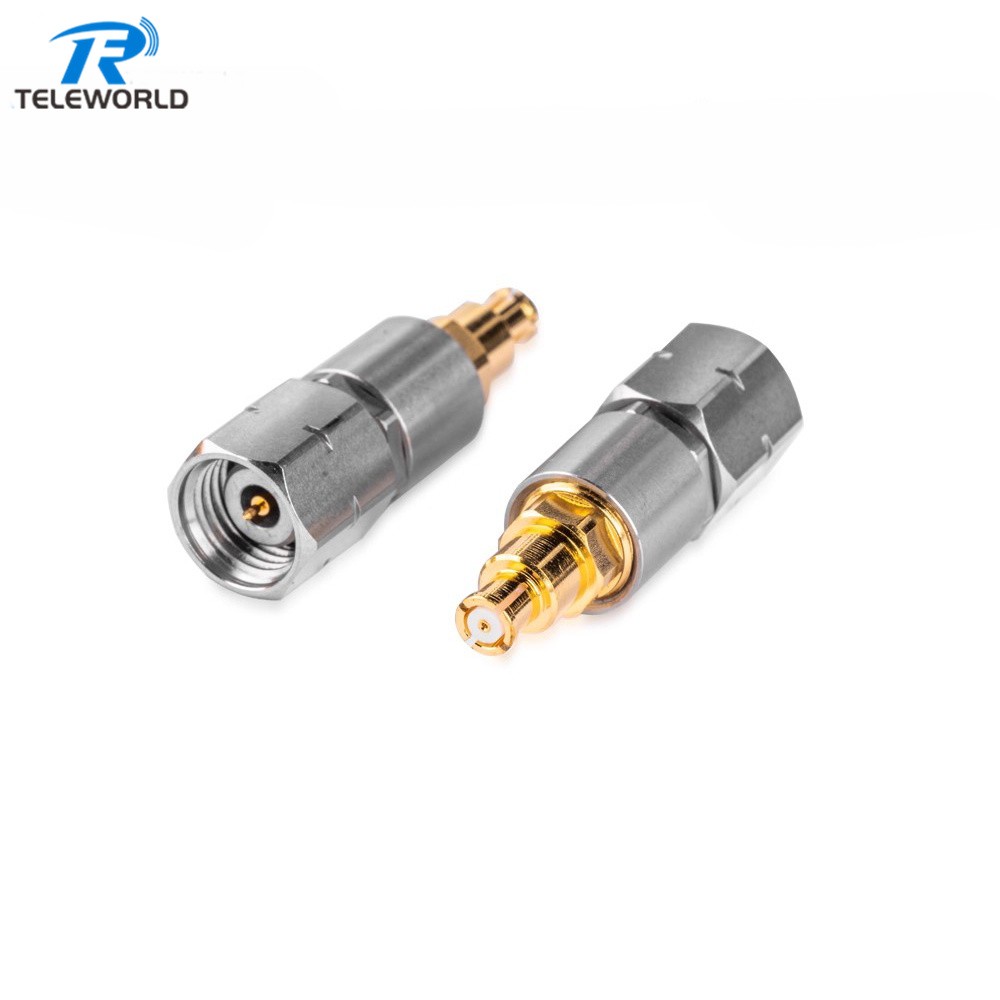

2.4mm to SMP Millimeter Wave Adapter 40GHz 50ohm

2.4mm male to SMP female

2.4mm male to SMP male

2.4mm female to SMP female
2.4mm female to SMP male

Adapter N  Precision coaxial connector for microwave applications.the maximum frequency is 40GHz.

•Design in accordance with: IEEE Std 287 TM -2007

Standard materials and finish

•Center conductor:beryllium copper，gold plated

•Insulator:PEI

•Outer conductor:Stainless steel,Passivated

Electrical Characteristics

•Characteristic Impedance:50Ω

•Frequency range:DC-40GHz

•VSWR: 1.25:1 max

•Insulation resistance: 5000MΩmin

•Test voltage:1000V

Mechanical

•Coupling torque:1.69N• max

•Mating cycles: 500cycles min

Environmental

•emperature range: -60℃～+165℃
