2.4mm Millimeter wave RF Coaxial Adapter 50GHz 50ohm
2.4mm series adapter
Frequency up to 50GHz
Factory supply with fast delivery
Welcome to send inquiry

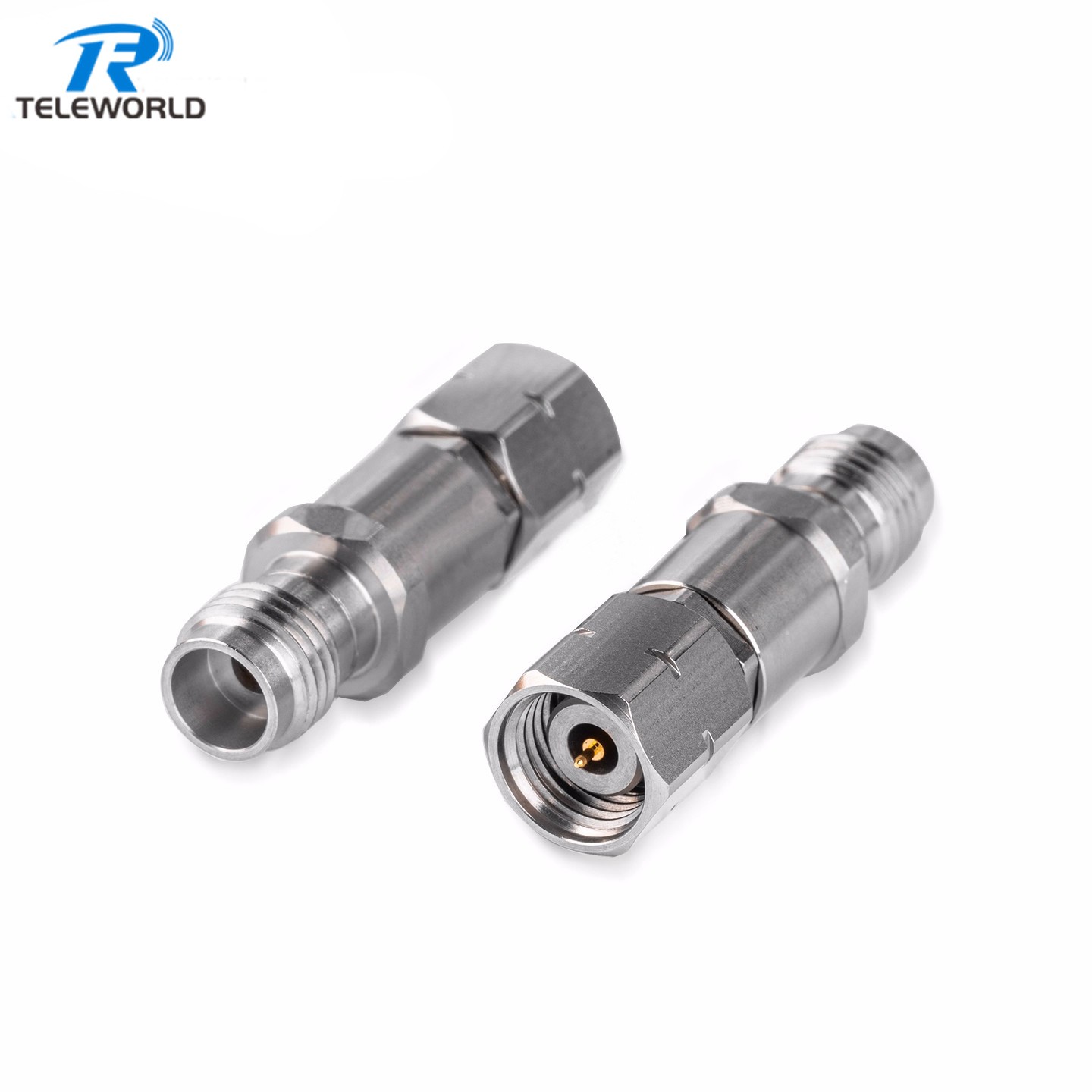

2.4mm male to 2.4mm female

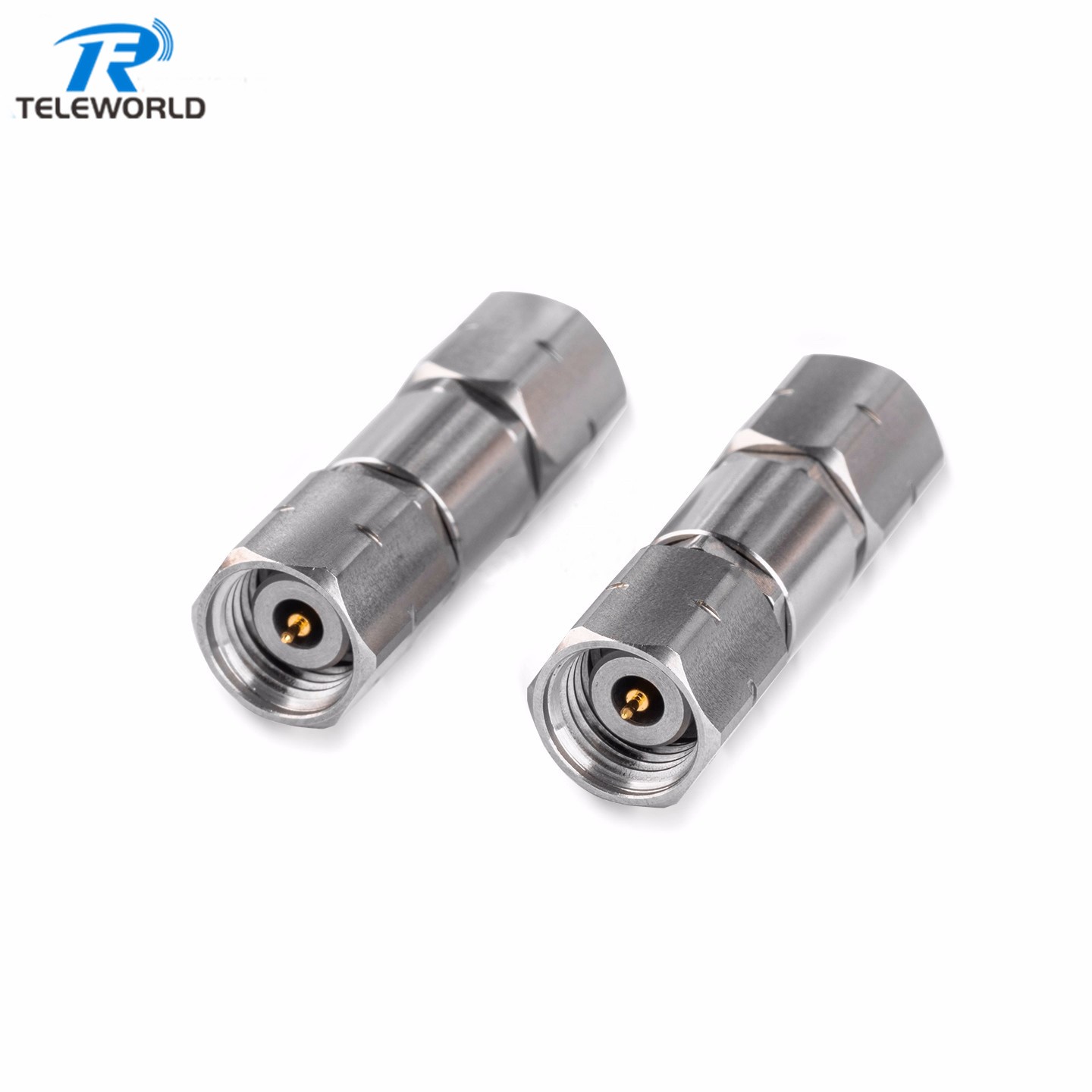

2.4mm male to 2.4mm male
2.4mm female to 2.4mm female
Characteristic Impedance: 50Ω
Operating Frequency: DC ~ 50GHz
Contact Resistance:
Inner Conductor: ≤ 4.0mΩ
Outer Conductor: ≤ 5.0mΩ
Insulation Resistance: ≥ 5000mΩ
Withstanding Voltage: 500V
Voltage VSWR: Typical ≤ 1.15
Durability: 500 times
Center Contact Material and Plating: Copper Alloy, Gold-Plated
Shells and Other Metal Parts: Copper Alloy, Stainless Steel
